METRI-PACK 280 SEALED CAVITY PLUG AND RELAY KEY
Description

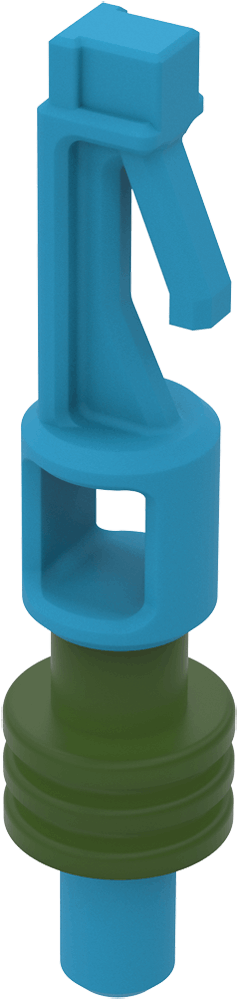

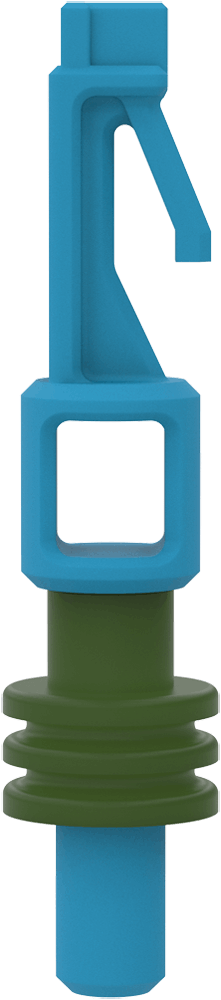

The GEP Metri-Pack 280 Tanged Terminal Cavity Plug is designed to seal and physically block unused Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities in GEP Power Distribution Modules (PDMs). Featuring an integrated silicone seal, the plug extends to the component-side cavity surface, preventing terminal insertion into the occupied position. It also provides mechanical poka-yoke functionality to help prevent incorrect 5-pin micro relay installation in applicable configurations.
Features
- Designed specifically for Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities
- Integrated silicone seal for sealing unused terminal cavities
- Extends to the component-side cavity surface to physically prevent terminal insertion

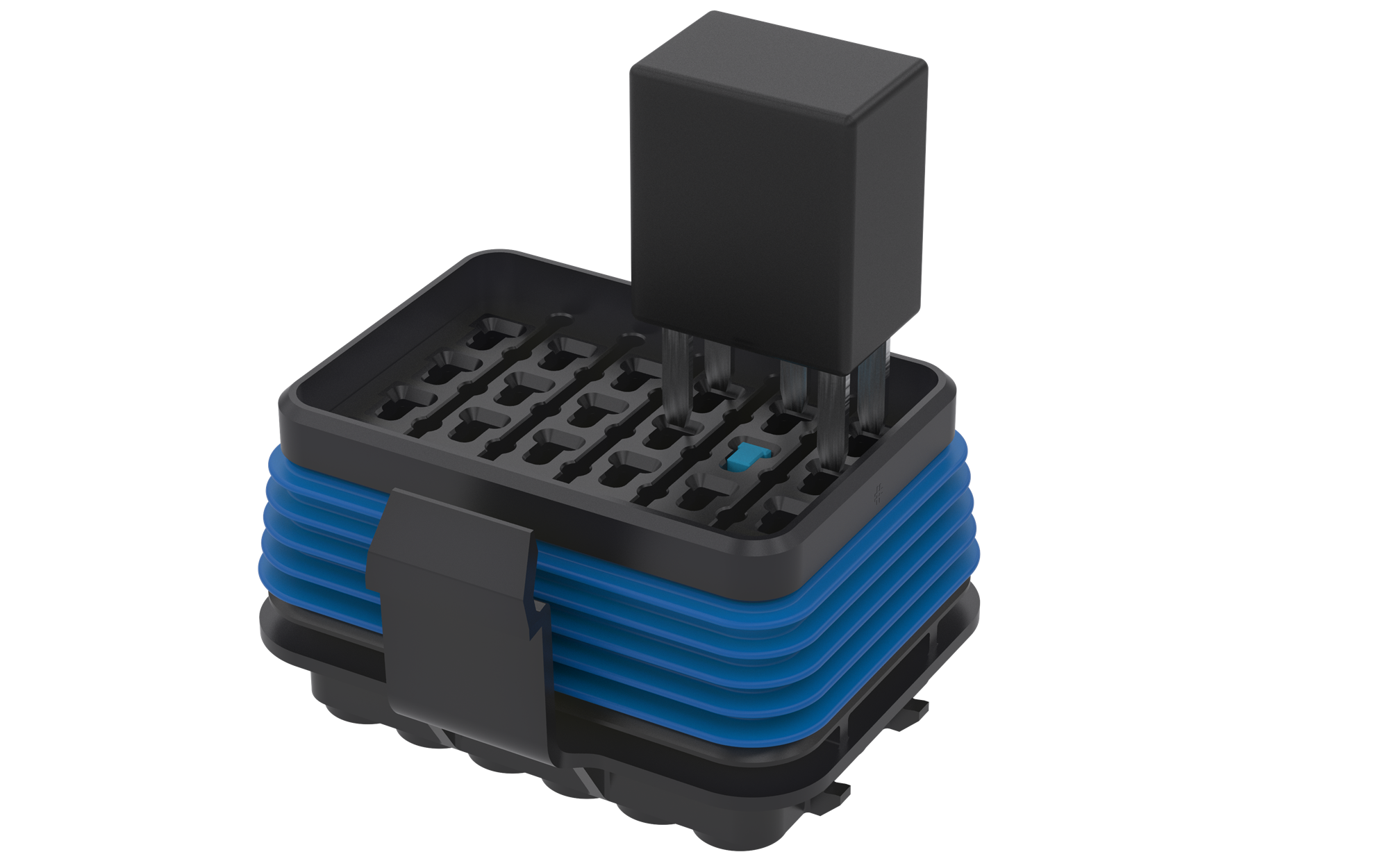

- Provides mechanical poka-yoke functionality for applicable 5-pin micro relay configurations
- Compatible with GEP PDMs utilizing Metri-Pack 280 tanged terminal cavities
- Durable PBT construction with silicone sealing element
- Not compatible with Metri-Pack 280 tangless terminal cavities
Applications
Used in GEP Power Distribution Modules with Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities to seal and block unused terminal positions, prevent unintended terminal installation, and provide mechanical keying for applicable 5-pin micro relay configurations. Suitable for power distribution applications in powersports, agricultural equipment, commercial vehicles, construction machinery, and other OEM electrical systems.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Series: PDM-S, PDM-R, PDM-U, FRH 12-WAY, FRH 24-WAY, FRH MAXI MINI, FRH SERIES
- Flammability: UL94 - V-0
- Colors: Light Blue, Blue
- Materials: Unfilled Nylon
- Voltage Range: 58V
