FRH MAXI MINI

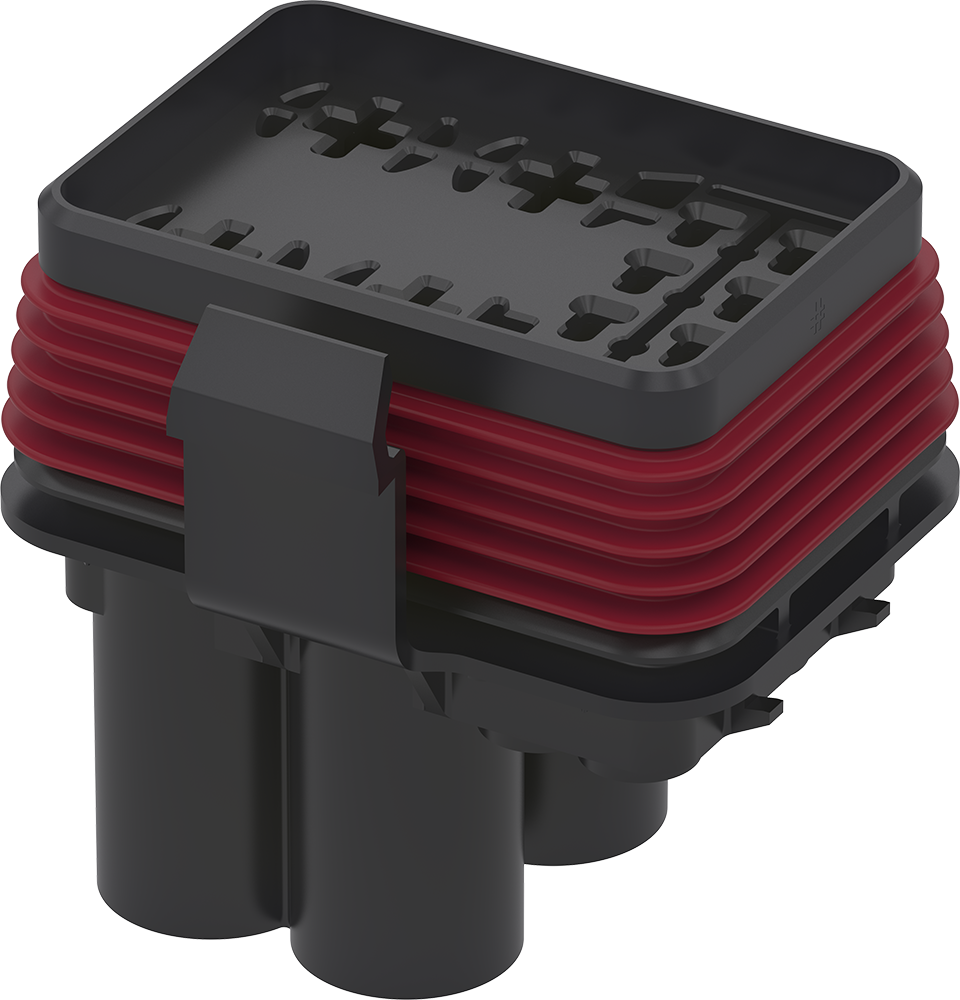

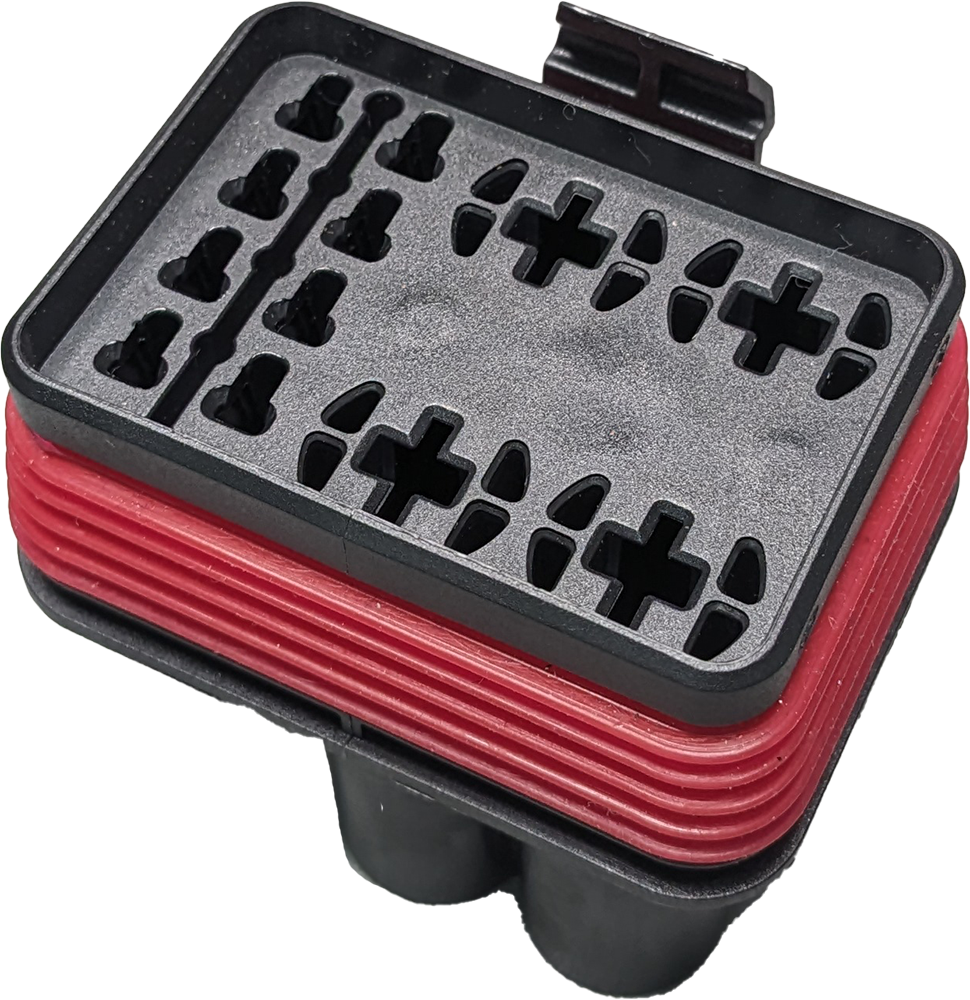

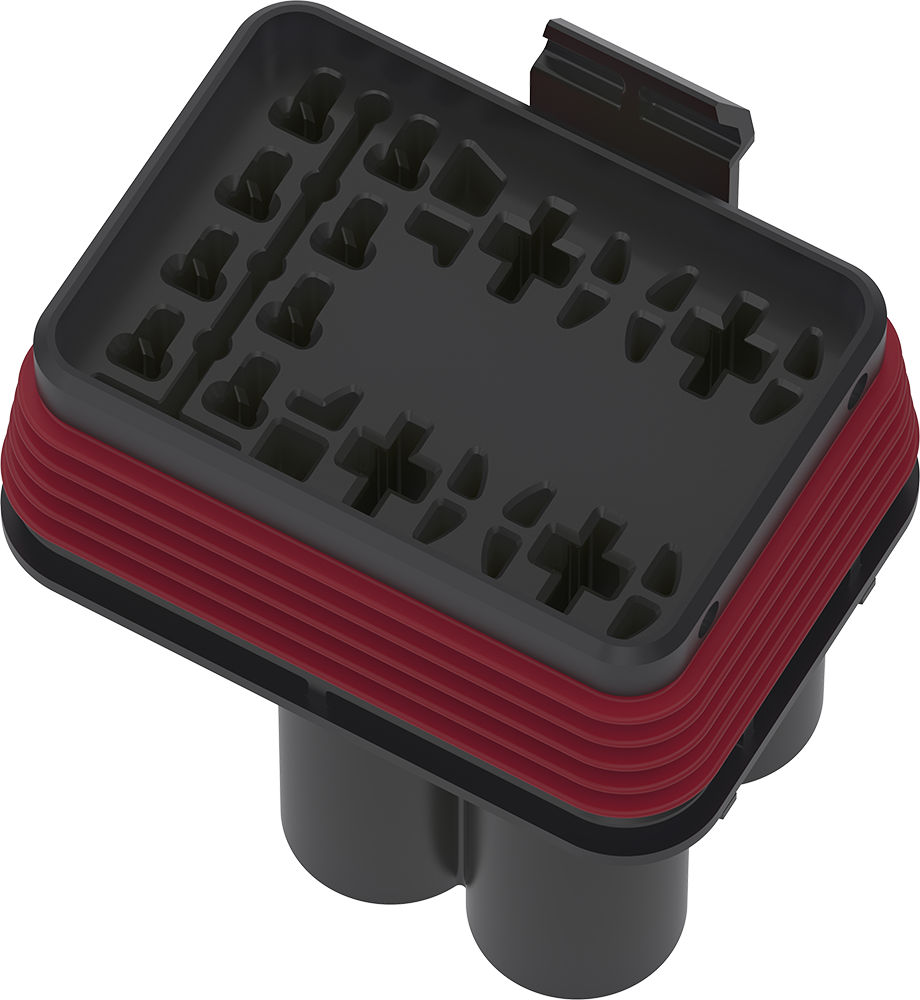

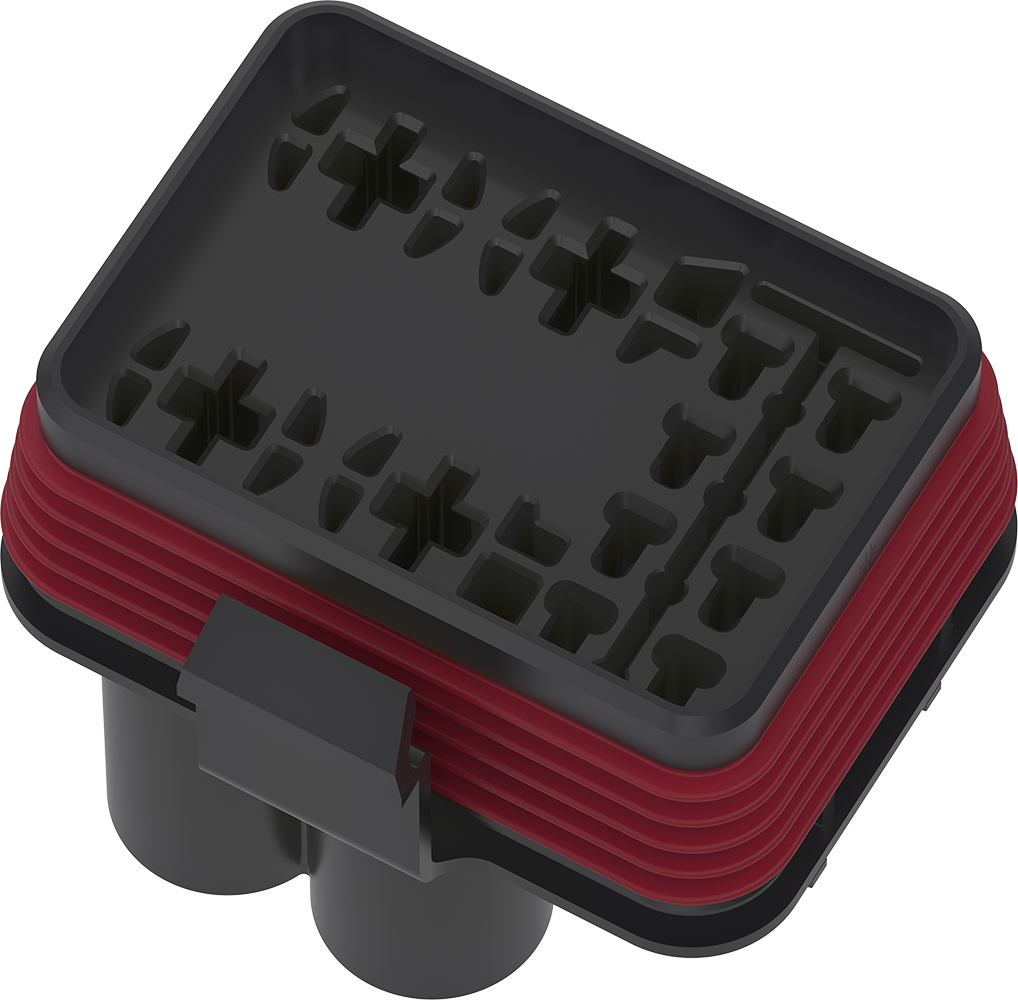

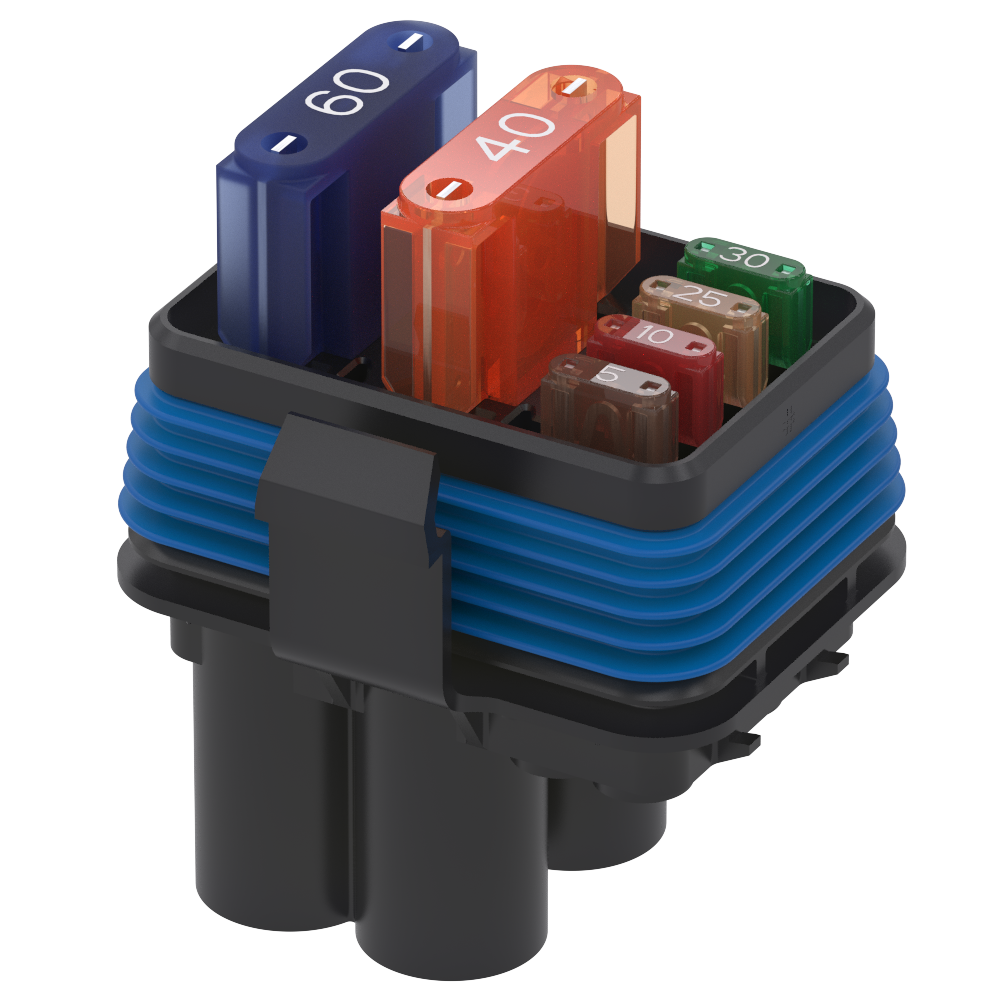

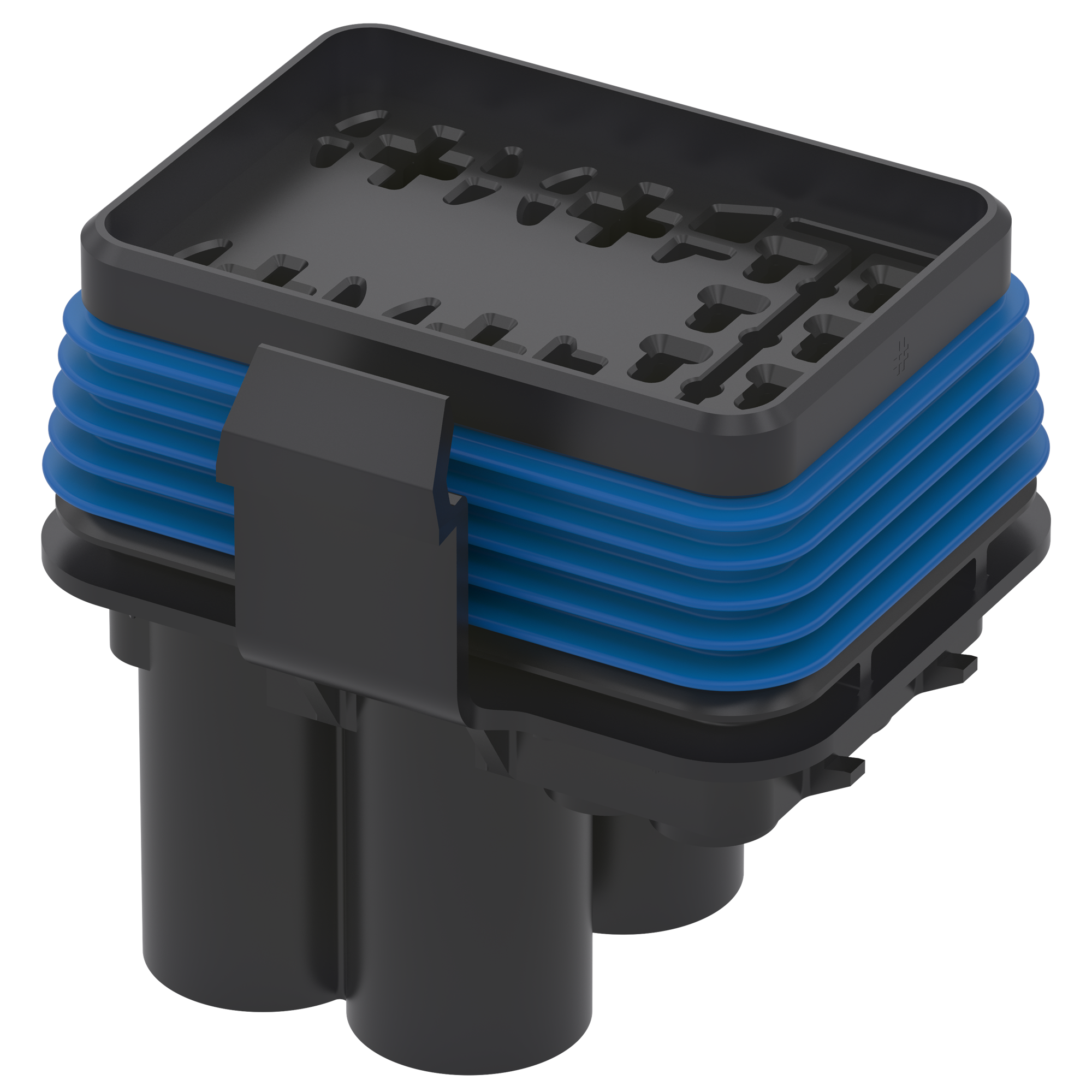

The GEP FRH Maxi Mini Series is a sealed hybrid housing accepting up to two Maxi fuses plus four Mini fuses or two micro relays. Its IP67/IP69K-rated enclosure supports mixed-current circuit architectures from a compact module in powersports, outdoor power equipment, and heavy-duty vehicles.

Features

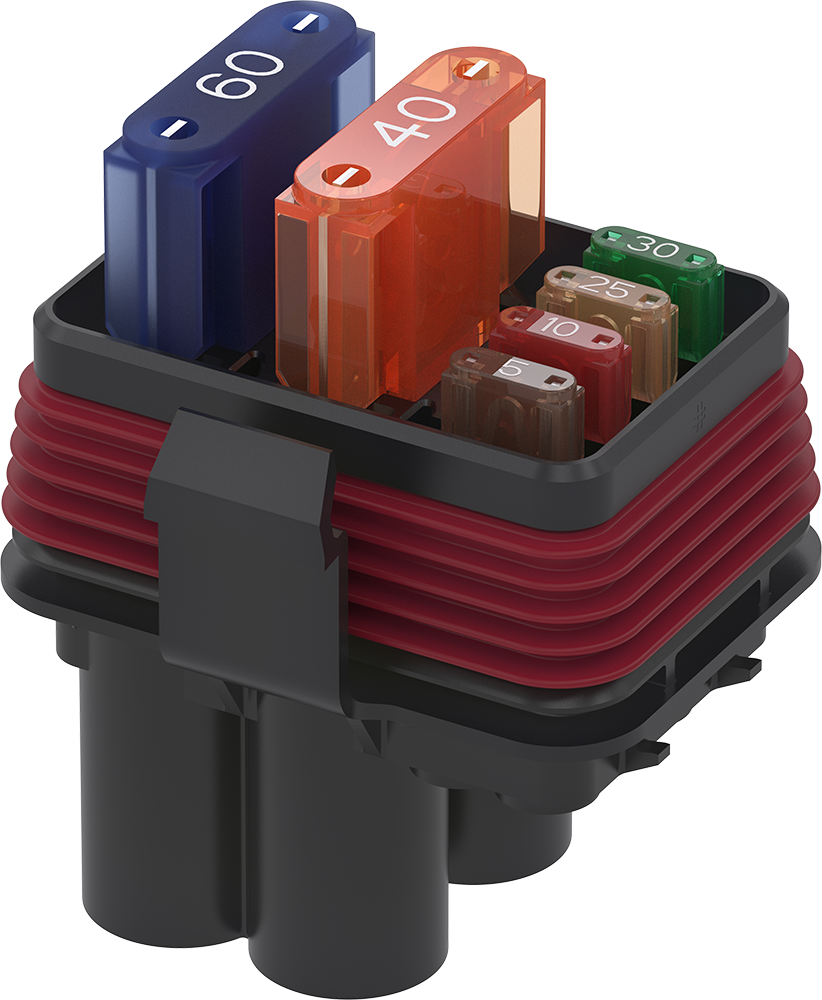

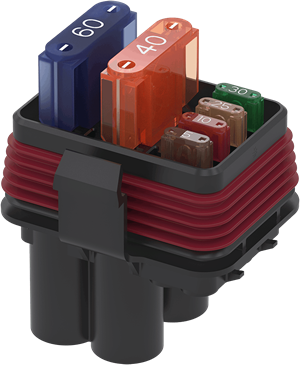

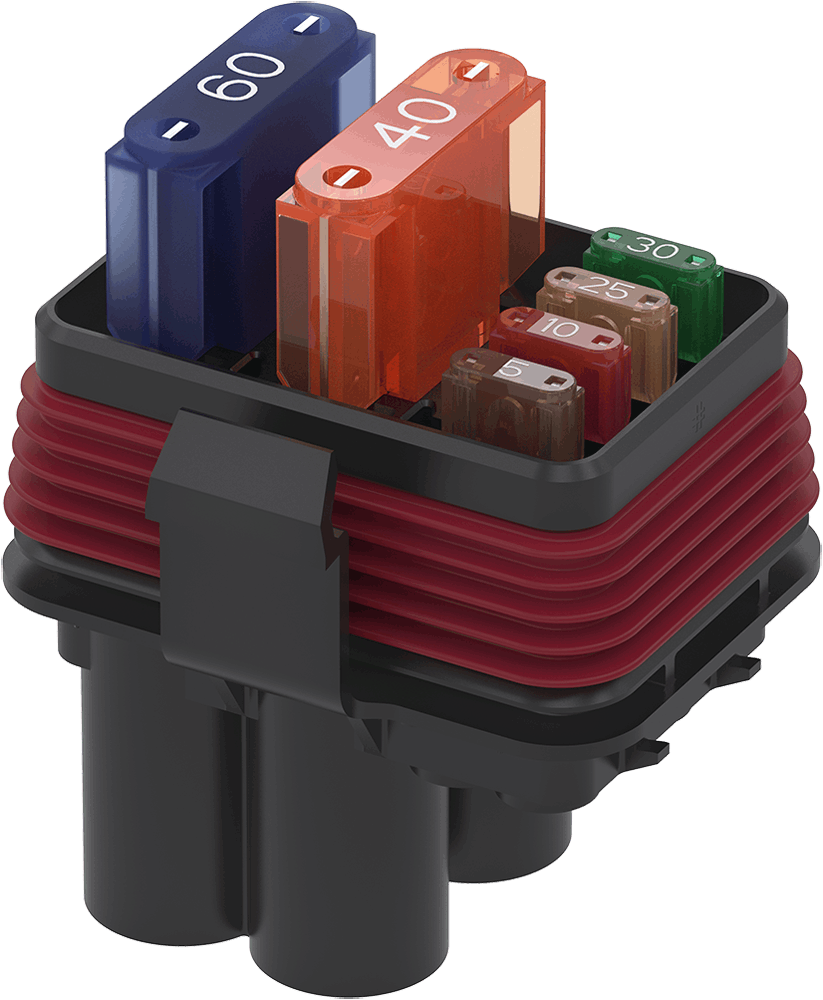

• Support up to (2) Maxi fuses and (4) mini fuses or (2) four position micro relays

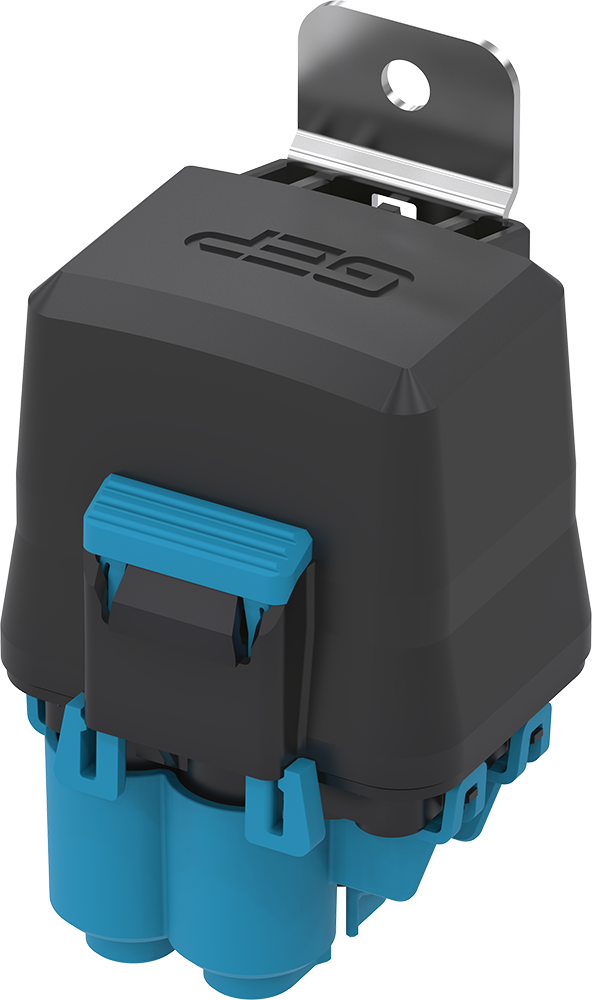

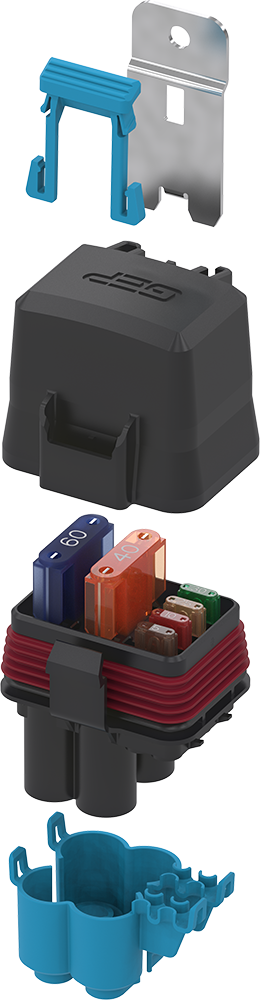

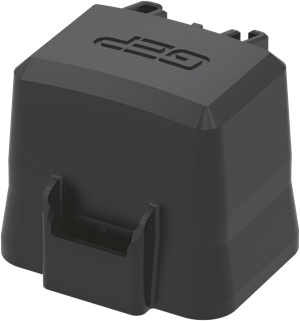

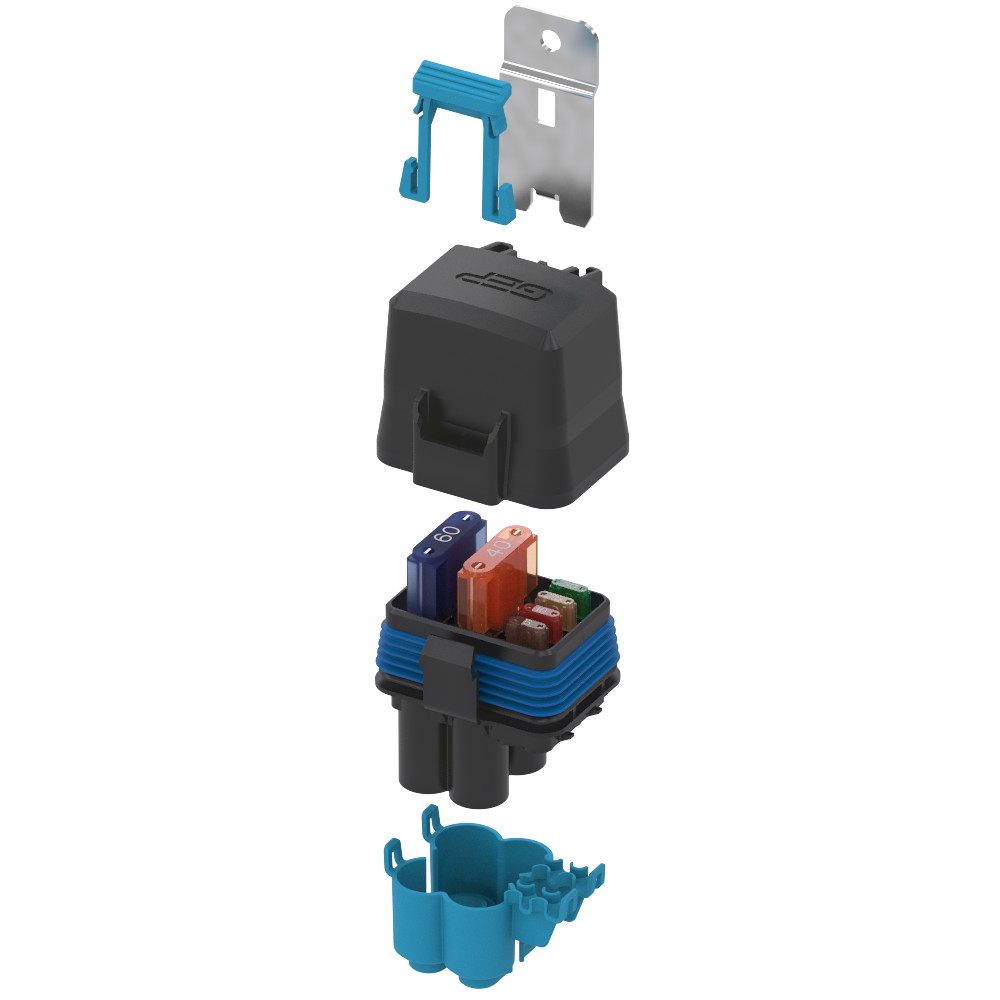

• Unique cover mount design for easy access to housing componentry
• The compact size of the FRH Series PDMs makes it easy to package and integrate.
• Harsh environment handling: With an IP67 and IP69K rating, the FRH Series PDM is designed to withstand harsh environments and provide superior sealing performance.
• Vented cover available

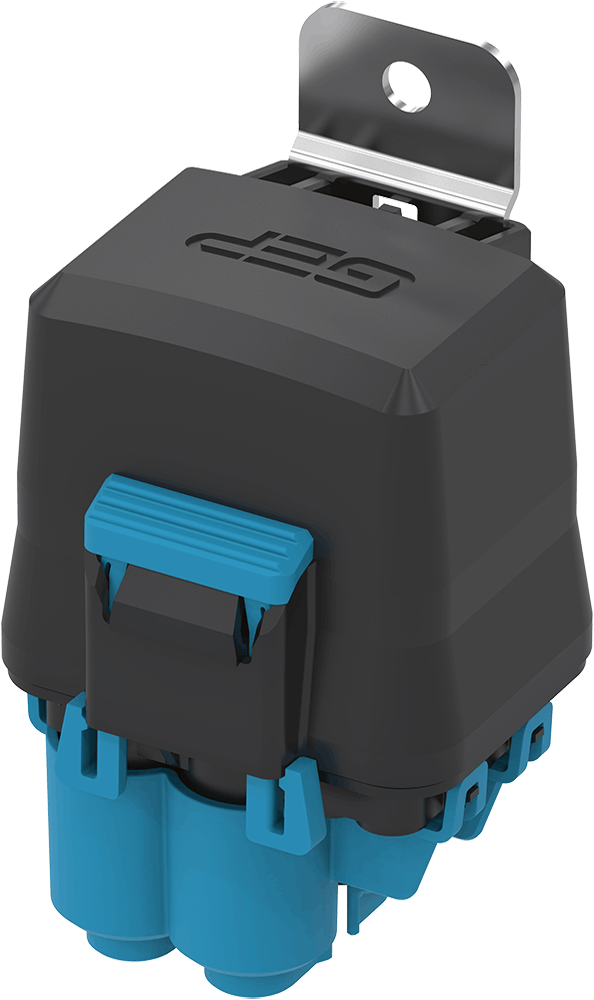

• Various mounting brackets available
• Cover lock accessory available

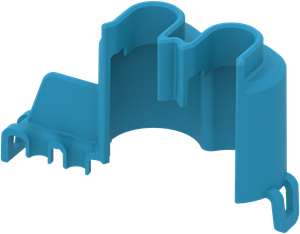

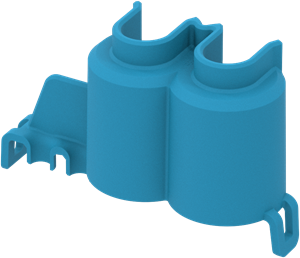

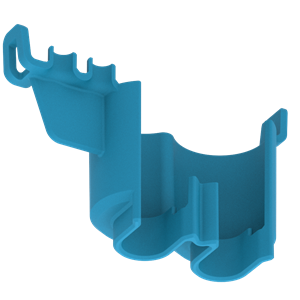

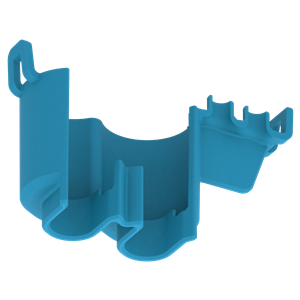

• TPA accessory available

Applications

Combined Maxi and Mini fuse holder for mixed-current circuit protection in harsh environments. Used in applications requiring both high-current and standard-current fusing within a single compact sealed housing.
