PDM - PDM-S, 72 POS, HOUSING AND SEAL

Description

The GEP PDM-S Series is a high-density 72-position 280-terminal power distribution module with configurable fuse and relay layouts. Its sealed IP67/IP69K architecture supports large circuit counts for powersports, outdoor power equipment, and heavy-duty vehicles with complex electrical systems.

Features

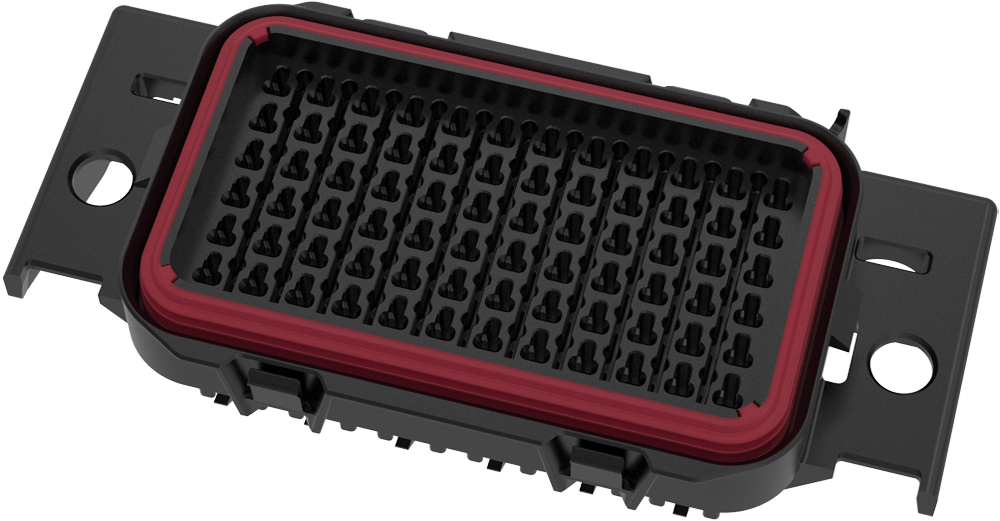

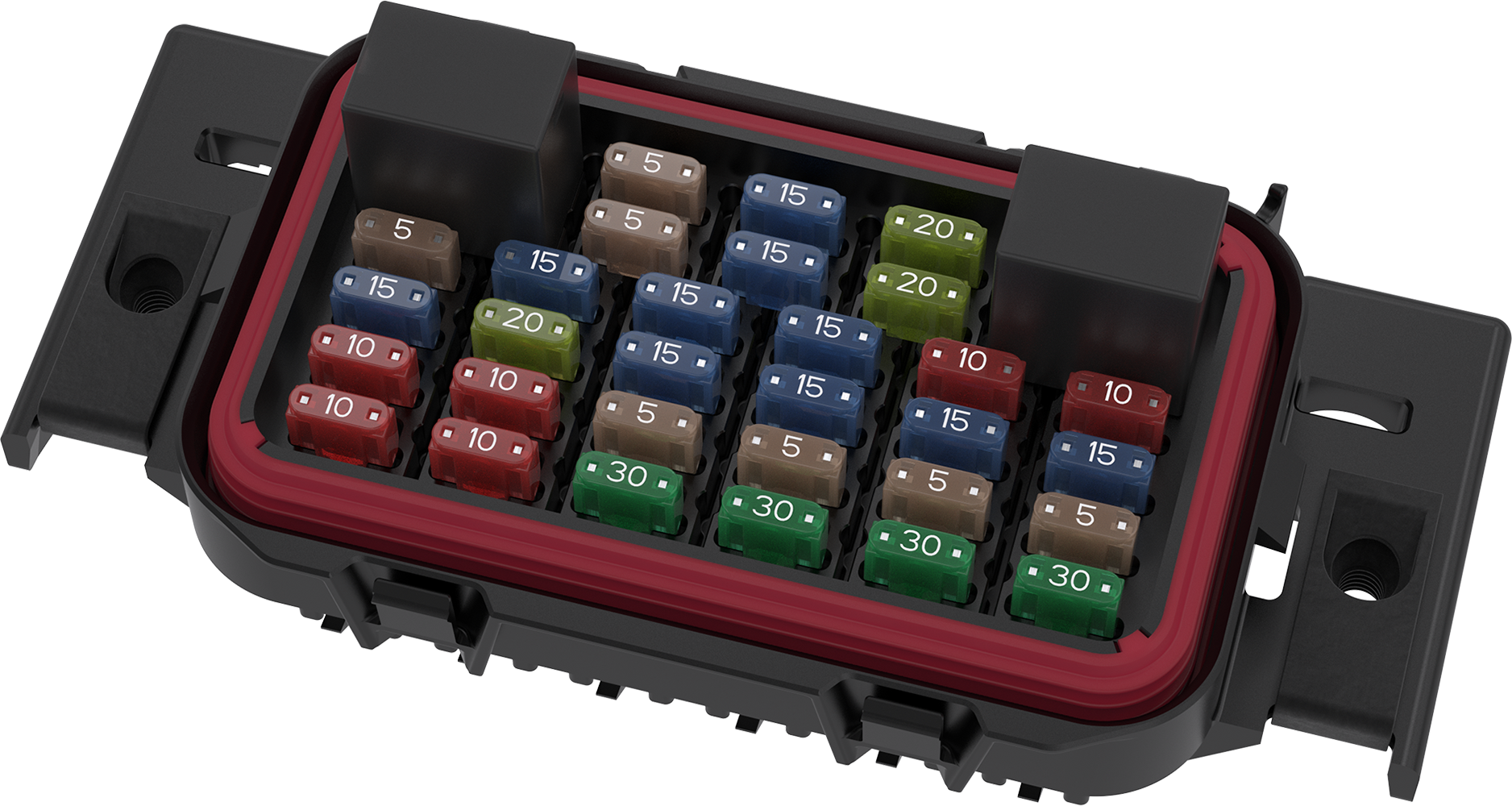

• Various housing options: A Housing: (72) 280 terminal positions B Housing: (68) 280 terminal positions with (4) ATO/ATC fuses
• Gangable. PDM-S Housings lock together or with PDM-R housings for customizable expansion to meet application needs
• Various cover options available included vented
• Harsh environment handling: With an IP67 and IP69K rating, the PDM-S Series PDM is designed to withstand harsh environments and provide superior sealing performance.
• GEP Multi-Sweep Seal - GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
• Versatile mounting options: Flexible options to mount the PDM via housing mounting holes or with threaded clips.

Applications

Large capacity 72-position PDM for high-density power distribution in demanding environments. Ideal for complex electrical architectures in agricultural, construction, military, and specialty vehicles where maximum circuit density is required in a sealed, modular housing.
