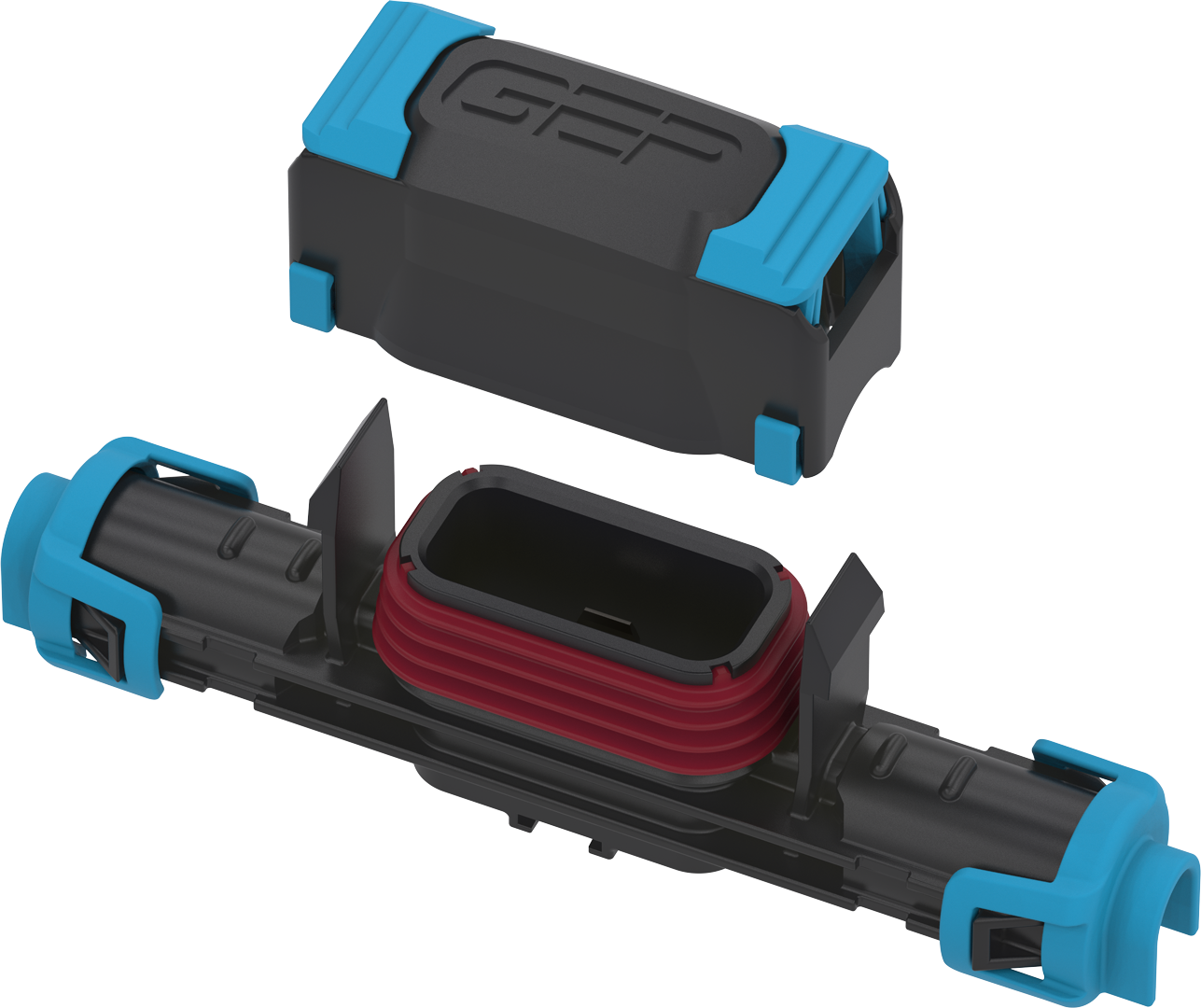

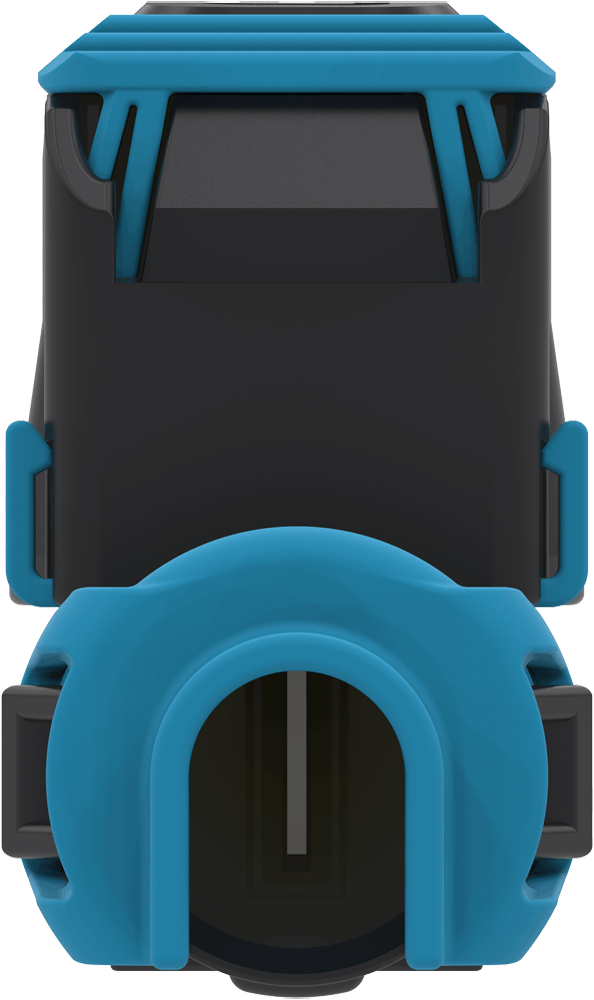

IN-LINE JCASE

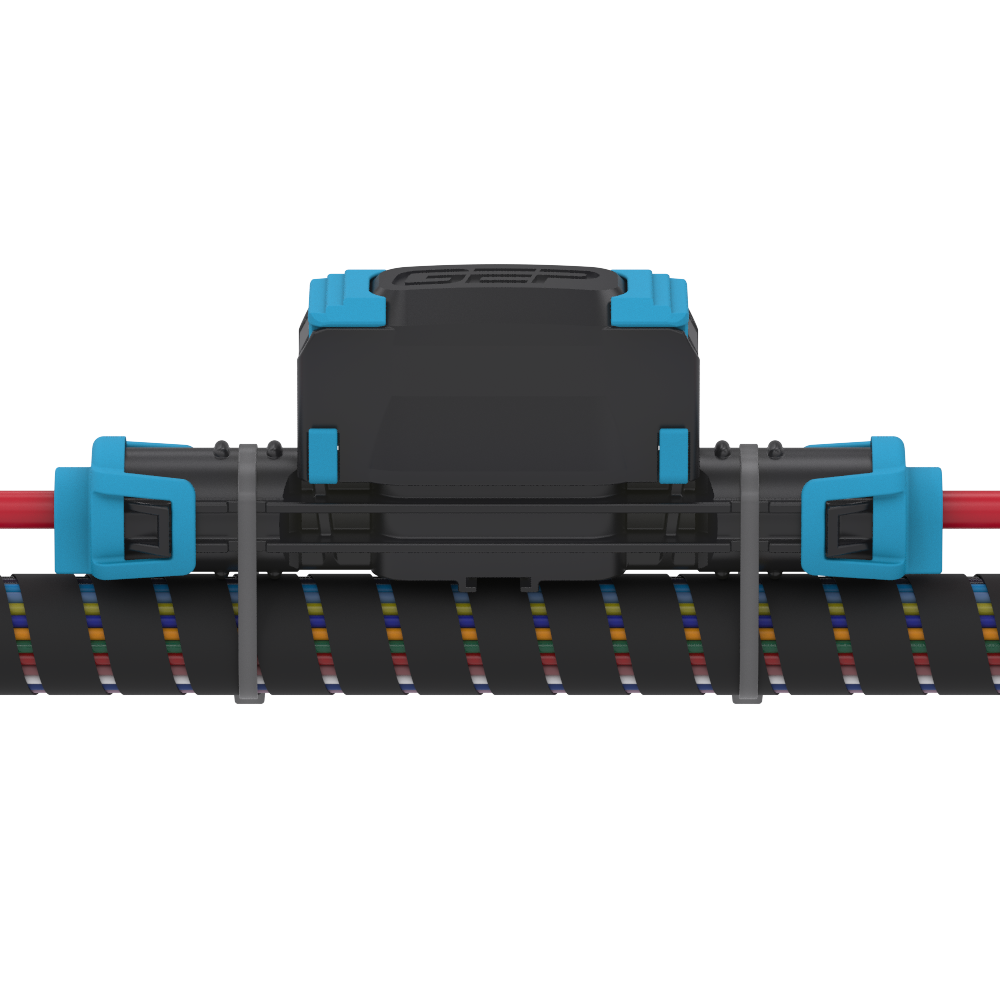

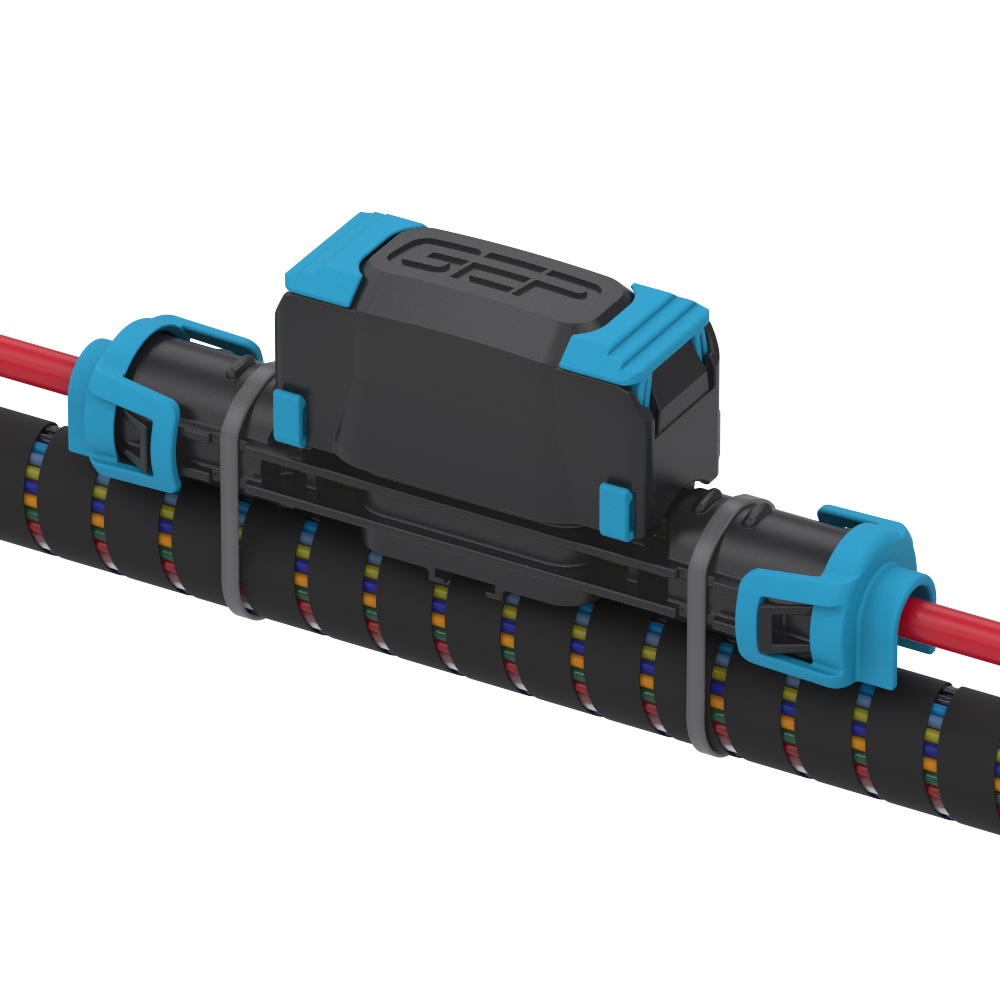

The GEP Power Products JCASE In-Line Fuse Holders are designed to meet the needs of demanding environments, with a focus on compact size, great sealing performance, versatile mounting options and a range of housings, covers and accessories.

  • Easy to access JCASE fuse housing with cover, CPA and TPAs
  • Harsh environment handling with an IP66 rating
  • GEP Multi-Sweep Seal: GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
  • Sealed 20A - 60A Fuse Ratings
  • Accepts Aptiv Ducon 9.5 series terminals (10AWG - 6 AWG)

Options

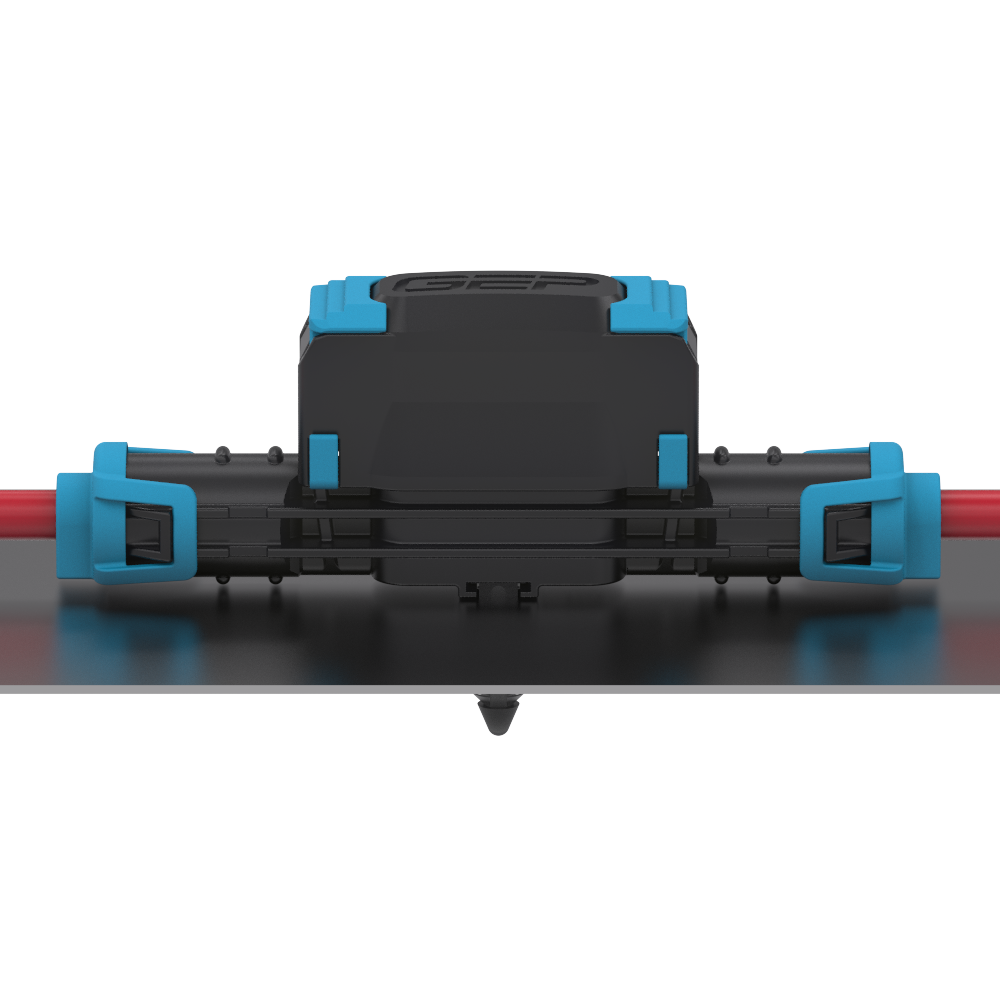

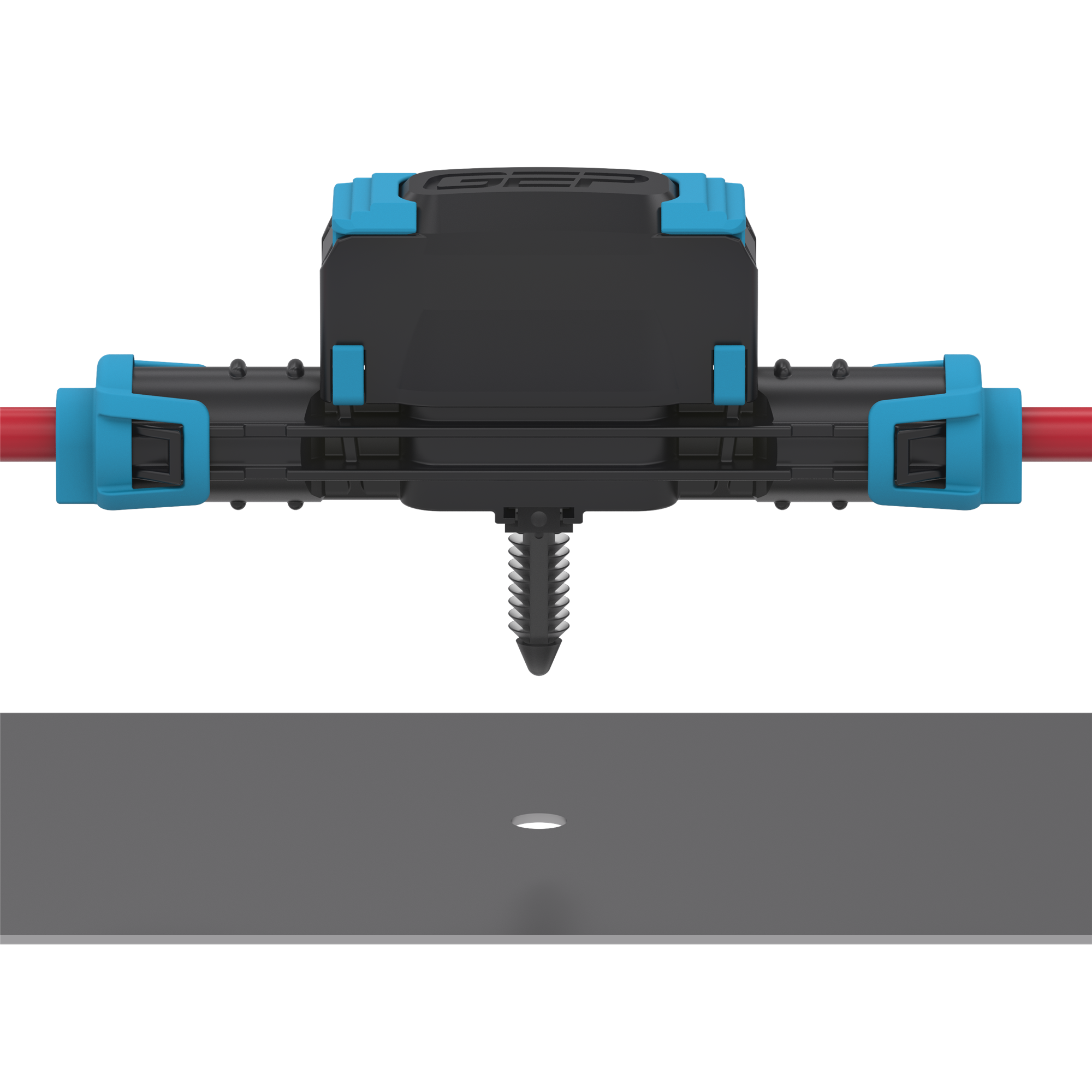

  • Aptiv mounting clip 12047835 (or equivalent)
Shop Products in this Series
IN-LINE JCASE

Downloads

JCASE IN-LINE FUSE HOLDER SERIES DRAWING pdf
JCASE IN-LINE FUSE HOLDER PACKAGING CAD MODEL stp

IN-LINE JCASE Series Products

Filters

Showing 1-10 of 10 results

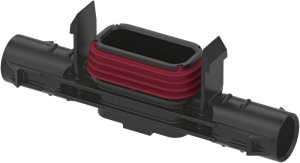

SC50-2000A-A001_Iso
SC50-2000A-A001
HOUSING AND SEAL - IN-LINE JCASE HOLDER
SC27-2003A-B001_Iso
SC27-2003A-B001
COVER - IN-LINE JCASE HOLDER

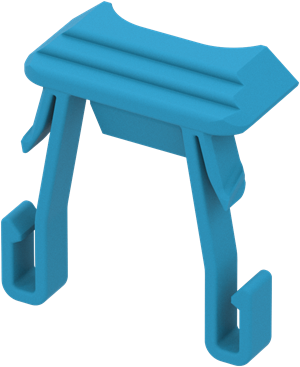

SC38-2005A-B003_Iso
SC38-2005A-B003
CPA - IN-LINE JCASE HOLDER

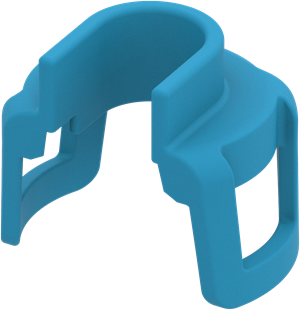

SC38-2004A-B003_Iso - Alternate
SC38-2004A-B003
TPA - IN-LINE JCASE HOLDER

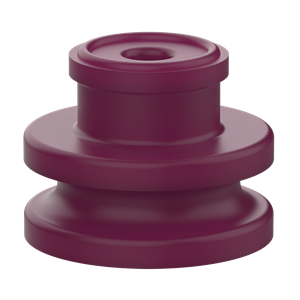

SC14-2003A-B007
SC14-2003A-B007
SEAL - DUCON 9.5, 2.7MM, PURPLE

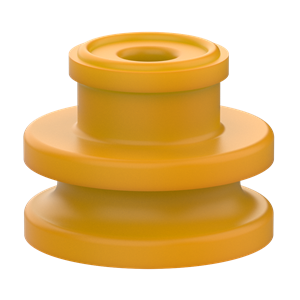

SC14-2003B-B010
SC14-2003B-B010
SEAL - DUCON 9.5, 3.2MM, ORANGE

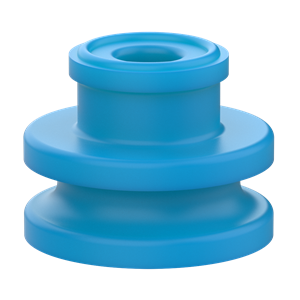

SC14-2003C-B011
SC14-2003C-B011
SEAL - DUCON 9.5, 3.8MM, LT BLUE

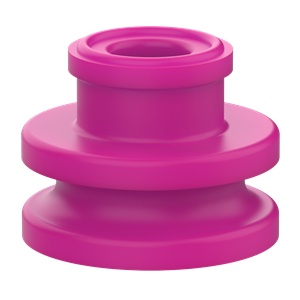

SC14-2003D-B013
SC14-2003D-B013
SEAL - DUCON 9.5, 4.5MM, PINK

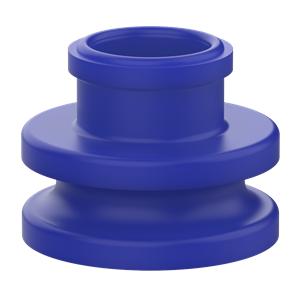

SC14-2003E-B014
SC14-2003E-B014
SEAL - DUCON 9.5, 6.8MM, DARK BLUE
SC41-2001A-A000
SC41-2001A-A000
TOOL - TERMINAL EXTRACTION, JCASE, IN-LINE
