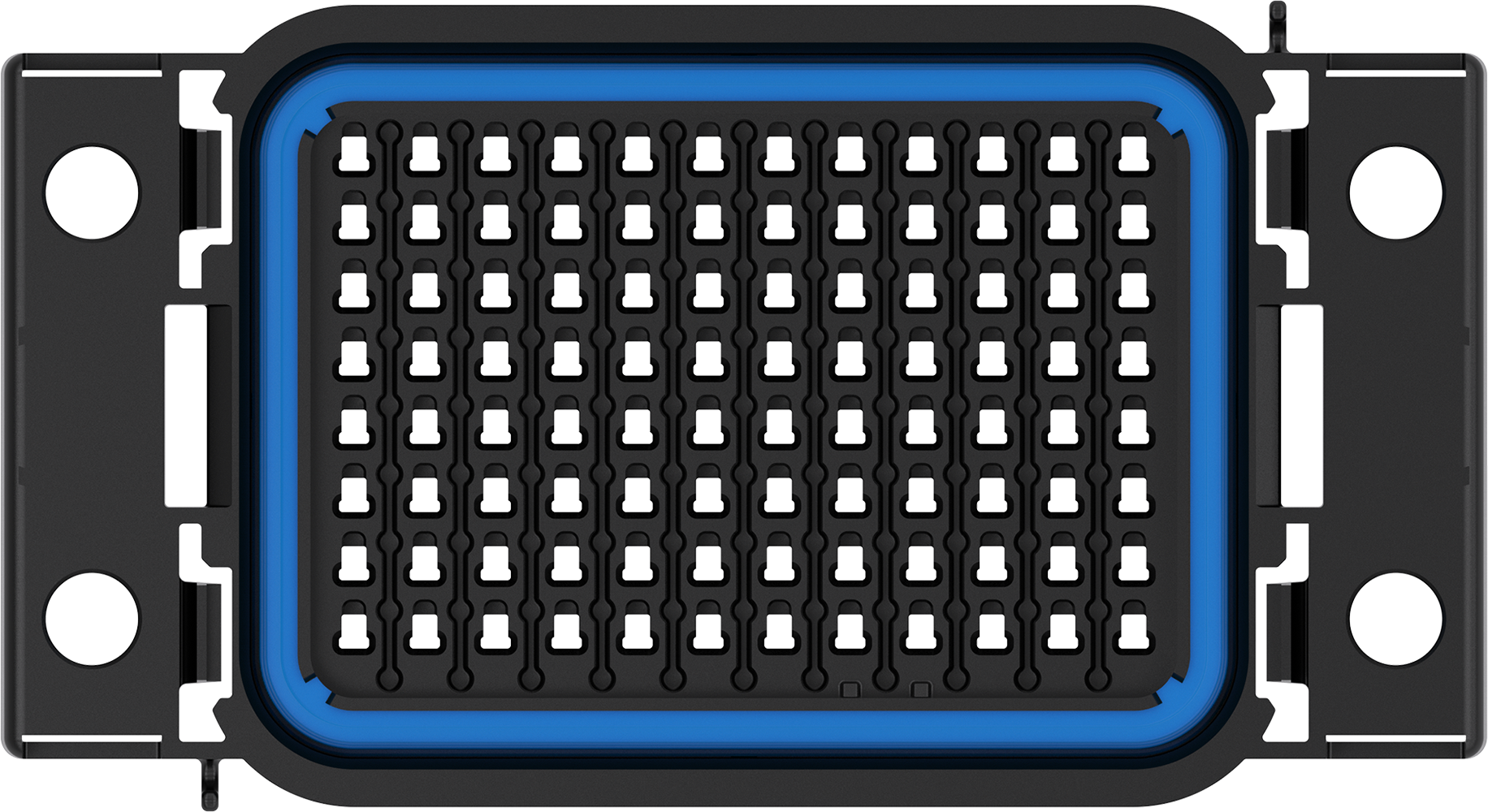

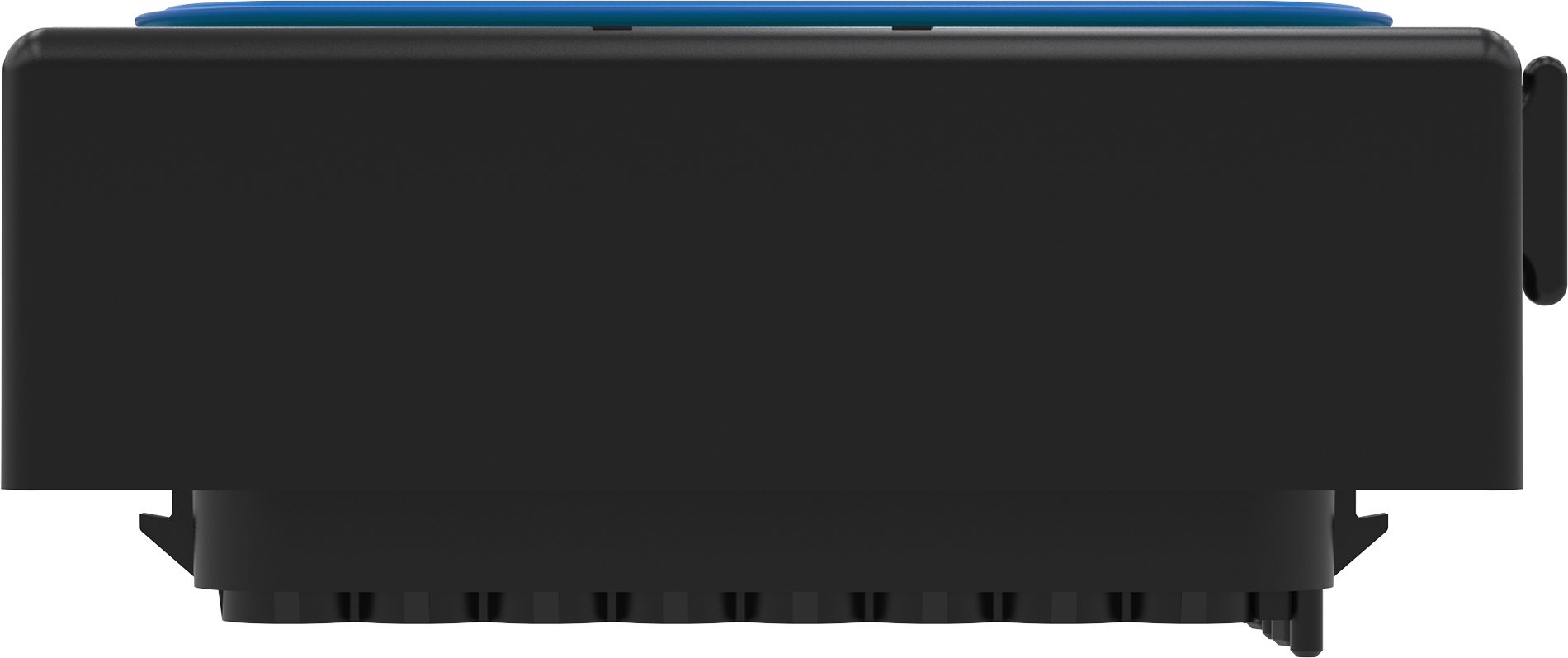

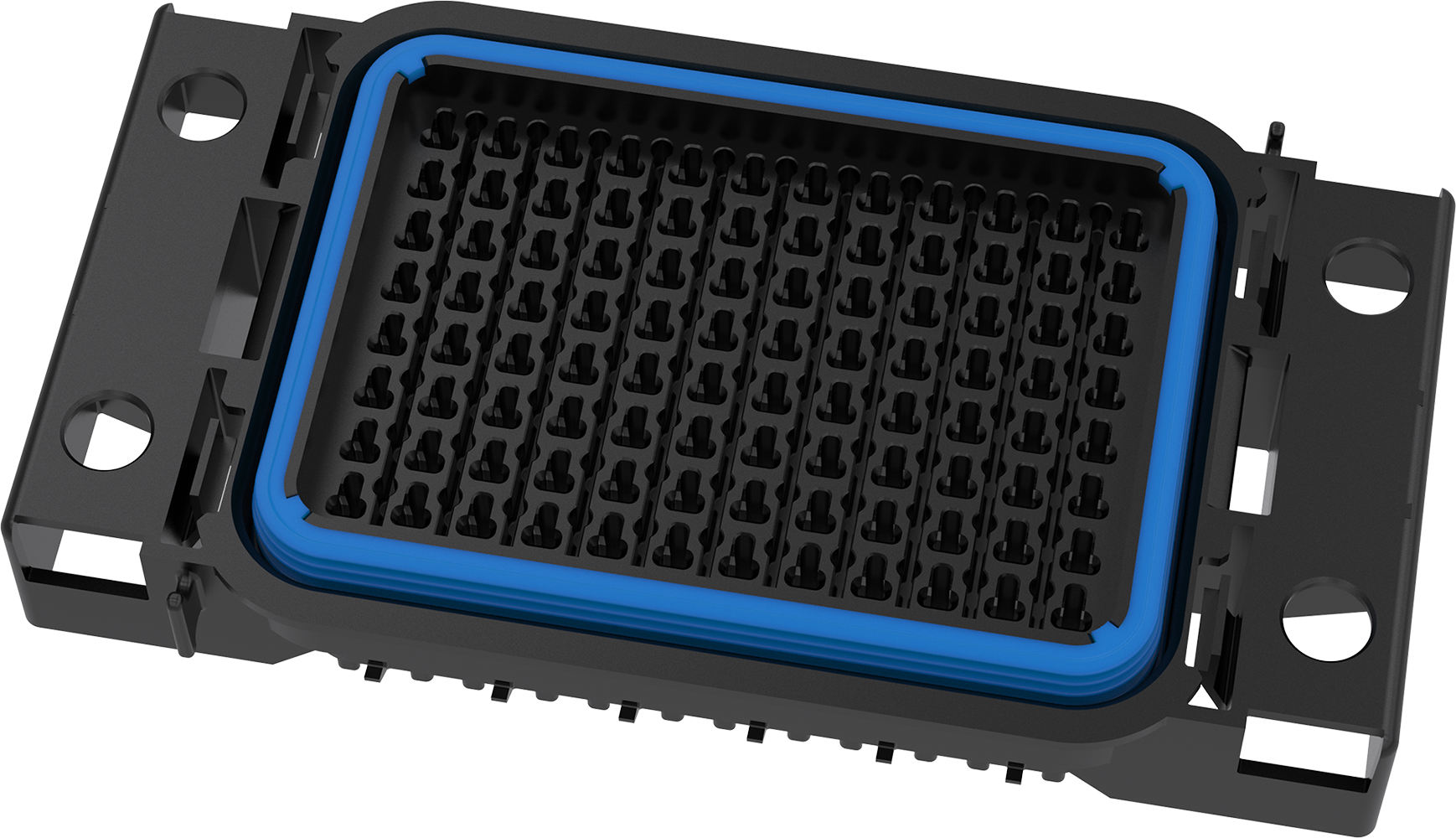

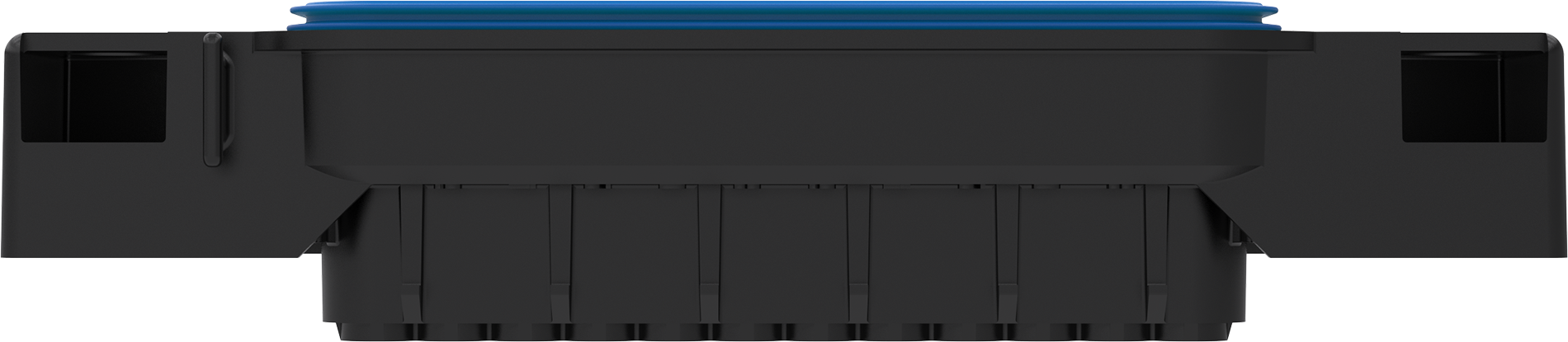

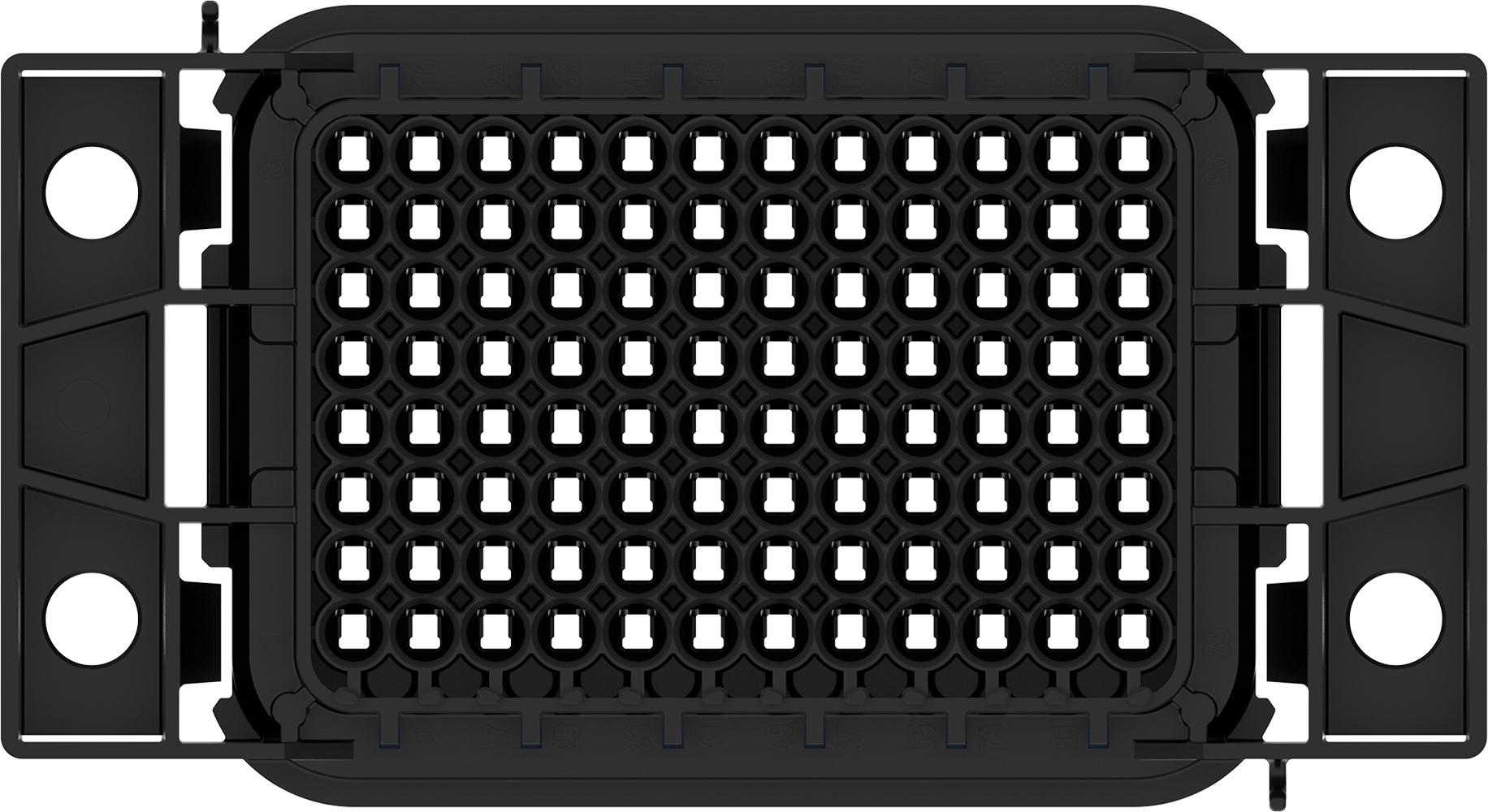

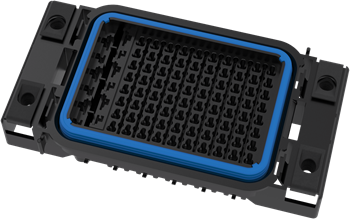

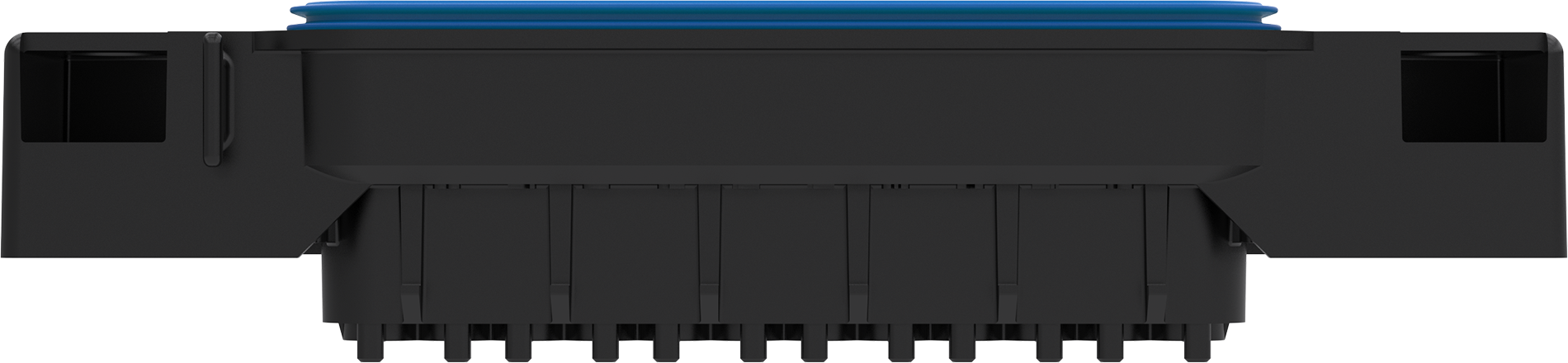

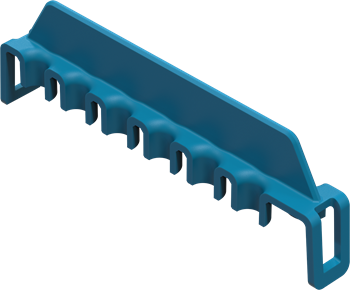

Housing and Seal - PDM-U, 96 POS, 280 TERM, 10MM
Part Number: SC42-2008A-B001
Description
The GEP PDM-U Series is an ultra-high-density 96-position 280-terminal power distribution module designed for vehicle platforms with the highest circuit count requirements. IP67/IP69K sealing ensures reliability in powersports, outdoor power equipment, and heavy-duty vehicle electrical systems.
Features

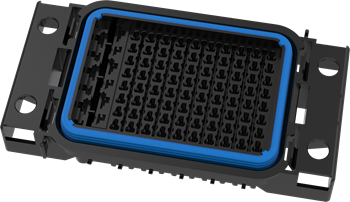

- Various housing options: A Housing: (96) 280 terminal positions B Housing: (92) 280 terminal positions with (6) ATO/ATC fuses

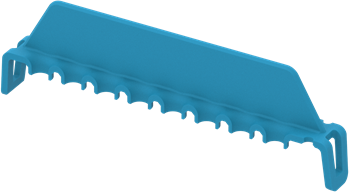

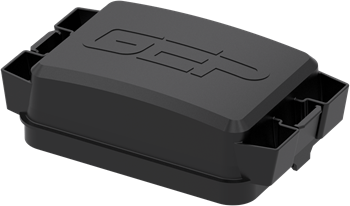

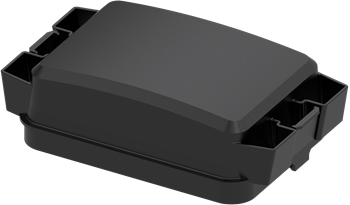

- Various cover options available included vented
- Harsh environment handling: With an IP67 and IP69K rating, the PDM-U Series PDM is designed to withstand harsh environments and provide superior sealing performance.
- GEP Multi-Sweep Seal - GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
- Versatile mounting options: Flexible options to mount the PDM via housing mounting holes or with threaded clips.
Applications
Ultra-high-density 98-position PDM for applications with the most complex power distribution requirements. Used in large agricultural equipment, heavy construction machinery, buses, military vehicles, and specialty applications demanding maximum circuit density in a sealed enclosure.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Materials: PBT, Silicone
- Terminal: Delphi Metri-Pack 280
- Flammability: UL94 - V-0
- IP Rating: IP66, IP67, IP69K
- Series: PDM-U
- Fusing: MINI Fuse
- Voltage Range: 58V
| APTIV (DELPHI) 280 METRI-PACK TERMINALS | |||
|---|---|---|---|
| PART NUMBER | CABLE RANGE (mm²) | MATERIAL | PLATING |
| 12077413 | 3 | Tin Brass | Tin |
| 12129493 | 2.0-3.0 | Tin Brass | Tin |
| 12077411 | 0.8-1.0 | Tin Brass | Tin |
| 12084201 | 0.35-0.50 | Tin Brass | Tin |
| 12176387 | 5 | Beryllium Copper | Silver / Nickel |
| 12176388 | 2.0-3.0 | Beryllium Copper | Silver / Nickel |
| 12176389 | 0.8-1.0 | Beryllium Copper | Silver / Nickel |
| APTIV (DELPHI) 280 METRI-PACK CABLE SEALS (FOR REF. ONLY) | |||
| PART NUMBER | CABLE DIAMETER | MATERIAL | COLOR |
| 15324981 | 3.45-4.3 | Silicone | Blue |
| 15324980 | 2.81-3.49 | Silicone | Lt. Gray |
| 15324982 | 2.03-2.85 | Silicone | Green |
| 15324984 | 2.03-2.42 | Silicone | Tan |
| 15324985 | 1.6-2.15 | Silicone | Purple |
| 15324983 | 1.29-1.70 | Silicone | Dk. Red |
| 12010300 | PLUG | Silicone | Green |
| DELPHI 280 METRI-PACK TERMINAL REMOVAL TOOL (FOR REF. ONLY) | |||
| Part # 12094430 | |||
| Aptiv (Delphi) 630 Metri-Pack Terminals | |||
|---|---|---|---|
| Part Number | Range (mm²) | Material | Plating |
| 15317331 | 4.00-6.00 | Tin Brass | Tin |
| 12052456 | 3.00-5.00 | Tin Brass | Tin |
| 12052455 | 1.00-2.00 | Tin Brass | Tin |
| 12052457 | 0.50-0.80 | Tin Brass | Tin |
| 15317332 | 4.00-6.00 | Beryllium Copper | Silver/Nickel |
| 15305232 | 3.00-5.00 | Beryllium Copper | Silver/Nickel |
| Aptiv (Delphi) 480 Metri-Pack Cable Seals (Ref. Only) | |||
| Note: 630 Cavities in This Housing Are Designed to Be Used With 480 Series Cable Seals | |||
| Part Number | Cable Dia. | Material | Color |
| 15363779 | 1.20-2.00 | Silicone | Yellow |
| 15324991 | 1.60-2.15 | Silicone | Yellow |
| 15327998 | 2.00-2.70 | Silicone | Blue |
| 15324988 | 2.00-2.90 | Silicone | White |
| 15363604 | 2.00-2.90 | Silicone | White |
| 15324989 | 2.80-3.90 | Silicone | Dk. Red |
| 15327864 | 2.80-3.80 | Silicone | Dk. Red |
| 15363605 | 3.60-4.50 | Silicone | Green |
| 10733145 | 4.40-5.10 | Silicone | Gray |
| 15344647 | 4.40-5.10 | Silicone | Gray |
| 35232480 | Plug | Silicone | Lt. Green |
| Delphi Metri-Pack Terminal Removal Tool (for Ref. Only) | |||
| Part # 12094430 | |||
