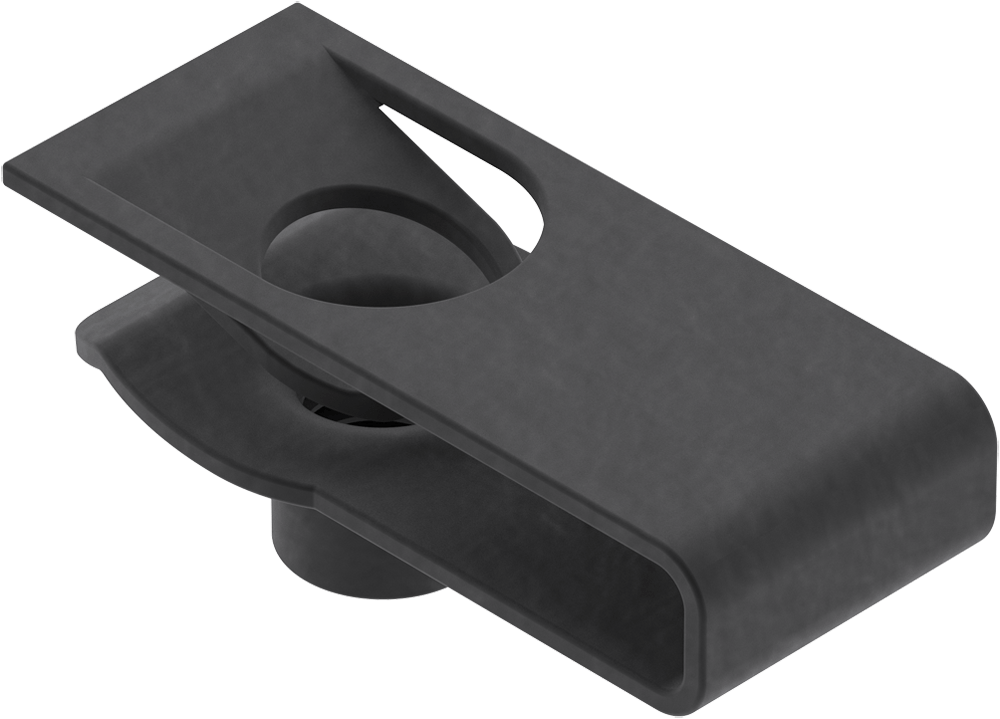

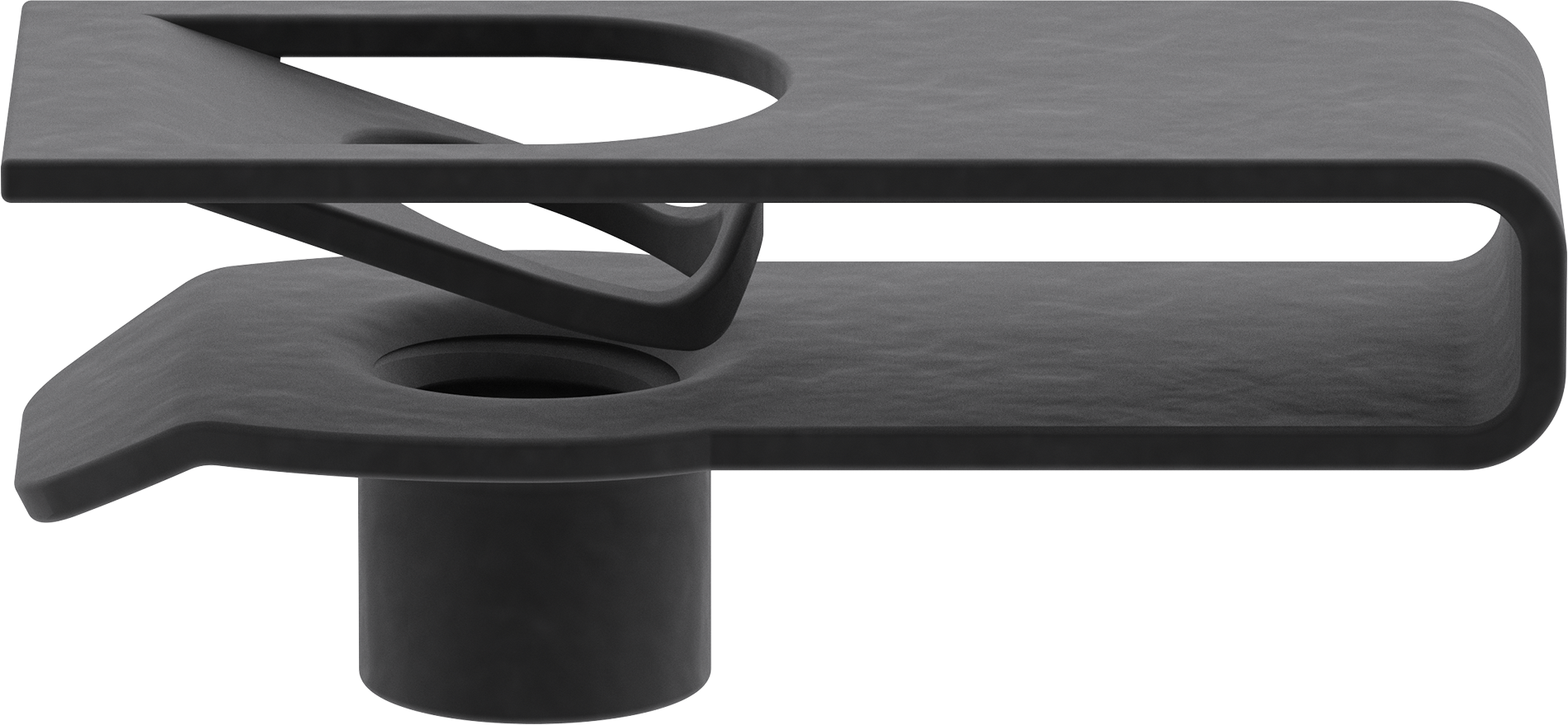

Clip - PDM, M6-1.0, 0.8-4MM PANEL, U-SPRING NUT, LONG
Part Number: PDM-SMC
Description
The PDM-S Series PDM is designed to meet the needs of demanding environments, with a focus on great sealing performance, high component density, versatile mounting options, and various housings to meet your application needs.
Features
- 72-Way
- Accepts 280 series footprint devices
- 72 cavities to allow for even greater flexibility and component content
- *68-Way – COMING SOON*
- Accepts 280 series footprint devices and qty 4 ATO Fuses
- 68 cavities to allow for even greater flexibility and component content
- Vented cover with GORE vent available
- Modules lock together to allow for growth
- Will also lock with PDM-R series
- Harsh environment handling: With an IP67 and IP66 rating, the PDM-S Series PDM is designed to withstand harsh environments and provide superior sealing performance.
- GEP Multi-Sweep Seal – GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
- Versatile mounting options: Flexible options to mount the PDM via housing mounting holes or with threaded clips.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Series: PDM-S, PDM-R, PDM-U
- Flammability: UL94 - V-0
- Materials: EPDM
- Voltage Range: 58V
Product Downloads
PDM-SMC Model
stp
Related Series Downloads
PDM-S SERIES SALES DRAWING
pdf
PDM-R SERIES DRAWING
pdf
PDM-U SERIES SALES DRAWING
pdf
PDM-S SERIES A HOUSING PACKAGING CAD MODEL
stp
PDM-R SERIES A HOUSING ASSEMBLY PACKAGING MODEL
stp
PDM-U SERIES A HOUSING PACKAGING CAD MODEL
stp
PDM-S SERIES B HOUSING PACKAGING CAD MODEL
stp
PDM-R SERIES B HOUSING ASSEMBLY PACKAGING MODEL
stp
PDM-U SERIES B HOUSING PACKAGING CAD MODEL
stp
PDM-R SERIES C HOUSING ASSEMBLY PACKAGING MODEL
stp
PDM-R SERIES D HOUSING ASSEMBLY PACKAGING MODEL
stp
PDM-R SERIES E HOUSING ASSEMBLY PACKAGING MODEL
stp
