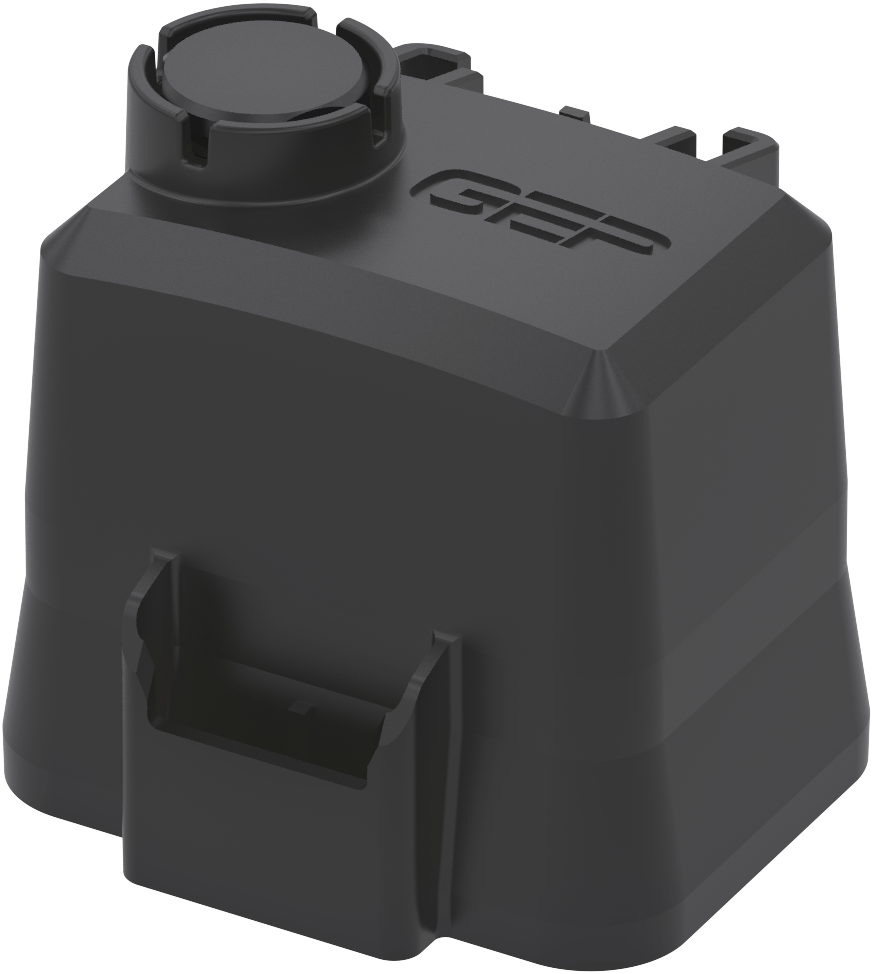

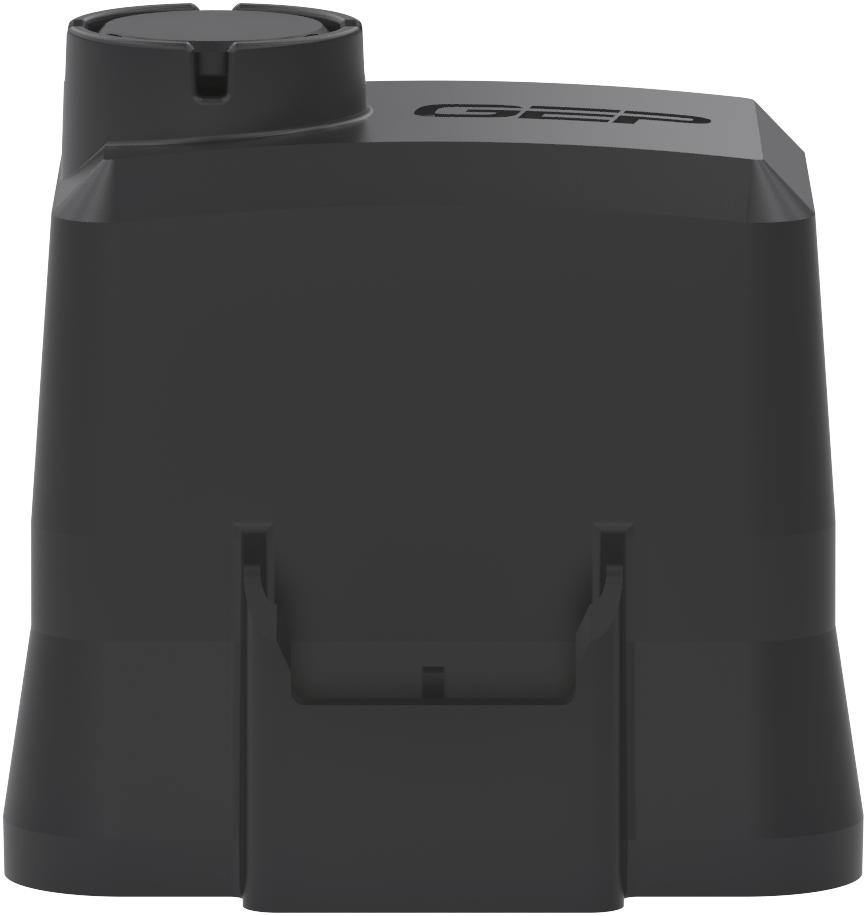

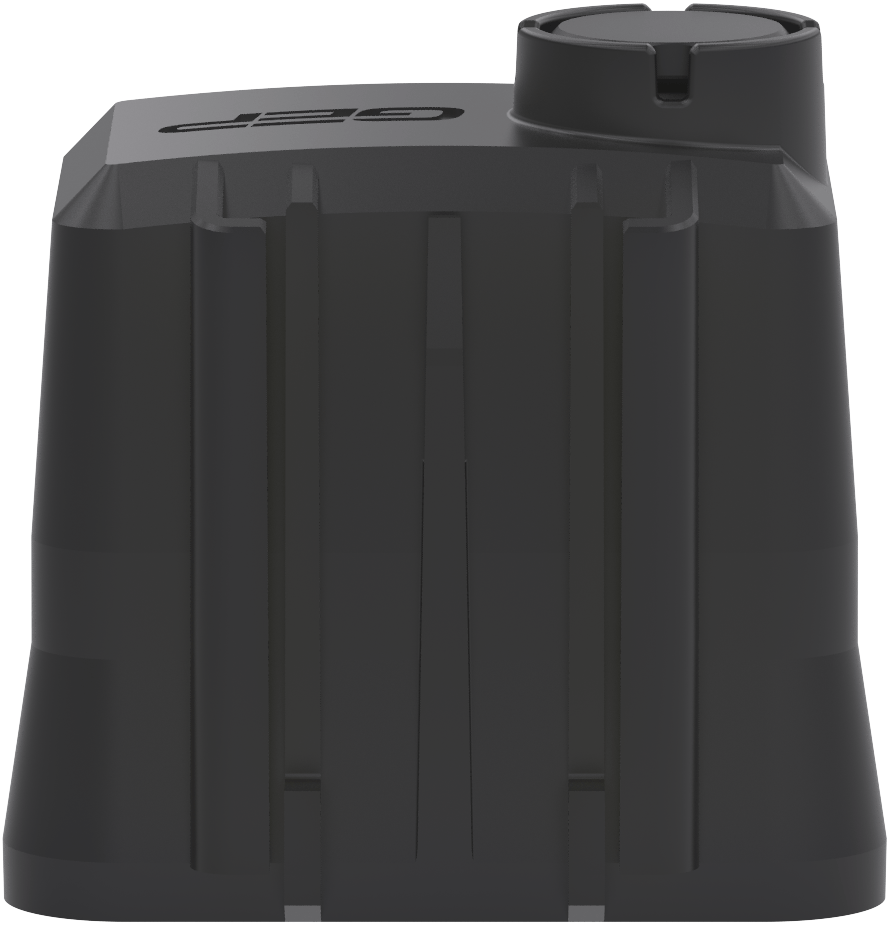

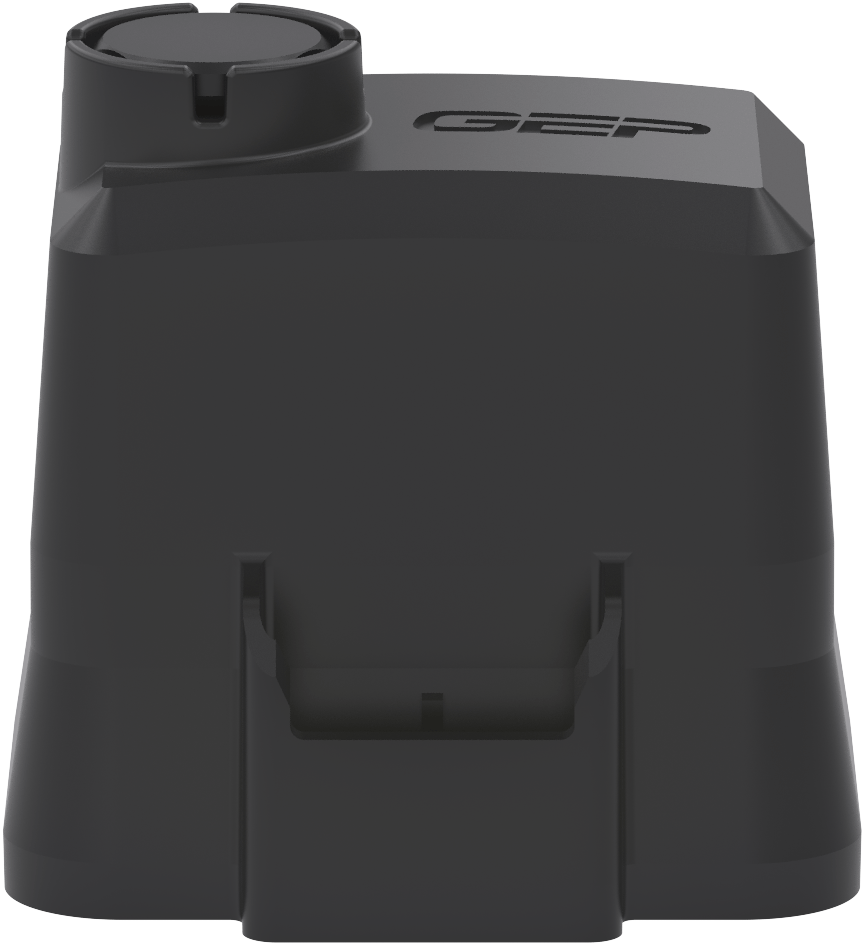

COVER WITH VENT - FRH - A24
Part Number: SC42-2028A-A001
Description

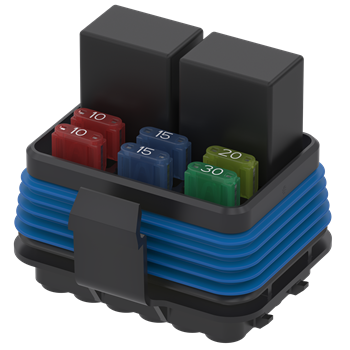

The GEP FRH Series PDMs are a high-density sealed PDM with IP67/IP69K protection. Ideal for powersports, outdoor power equipment, and heavy-duty vehicle applications requiring expanded fuse and relay management.
Features
- Unique cover mount design for easy access to housing componentry
- The compact size of the FRH Series PDMs makes it easy to package and integrate.
- Harsh environment handling: With an IP67 and IP69K rating, the FRH Series PDM is designed to withstand harsh environments and provide superior sealing performance.
- Vented cover available
- Various mounting brackets available
- Cover lock accessory available
- TPA accessory available
Applications
High-density PDM for applications requiring more fuse and relay positions in a compact footprint. Ideal for agricultural, construction, military, and specialty vehicles with complex power distribution requirements in sealed, harsh environments.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Materials: PBT
- Flammability: UL94 - V-0
- IP Rating: IP67, IP69K
- Series: FRH 24-WAY, FRH MAXI MINI, FRH SERIES, FRH MAXI FUSE AND MAXI RELAY
- Voltage Range: 58V
Related Series Downloads
FRH 24-WAY SERIES FLYER
pdf
FRH MAXI MINI SERIES DRAWING
pdf
FRH MAXI FUSE AND MAXI RELAY SERIES DRAWING
pdf
FRH MAXI FUSE AND MAXI RELAY SERIES DRAWING
pdf
FRH 24-WAY SERIES DRAWING
pdf
FRH MAXI MINI SERIES PACKAGING CAD MODEL
stp
FRH MAXI FUSE AND MAXI RELAY SERIES PACKAGING CAD MODEL
stp
FRH MAXI FUSE AND MAXI RELAY SERIES PACKAGING CAD MODEL
stp
FRH 24-Way SERIES PACKAGING CAD MODEL
stp
| APTIV (DELPHI) 280 METRI-PACK TERMINALS | |||
|---|---|---|---|
| PART NUMBER | CABLE RANGE (mm²) | MATERIAL | PLATING |
| 12077413 | 3 | Tin Brass | Tin |
| 12129493 | 2.0-3.0 | Tin Brass | Tin |
| 12077411 | 0.8-1.0 | Tin Brass | Tin |
| 12084201 | 0.35-0.50 | Tin Brass | Tin |
| 12176387 | 5 | Beryllium Copper | Silver / Nickel |
| 12176388 | 2.0-3.0 | Beryllium Copper | Silver / Nickel |
| 12176389 | 0.8-1.0 | Beryllium Copper | Silver / Nickel |
| APTIV (DELPHI) 280 METRI-PACK CABLE SEALS (FOR REF. ONLY) | |||
| PART NUMBER | CABLE DIAMETER | MATERIAL | COLOR |
| 15324981 | 3.45-4.3 | Silicone | Blue |
| 15324980 | 2.81-3.49 | Silicone | Lt. Gray |
| 15324982 | 2.03-2.85 | Silicone | Green |
| 15324984 | 2.03-2.42 | Silicone | Tan |
| 15324985 | 1.6-2.15 | Silicone | Purple |
| 15324983 | 1.29-1.70 | Silicone | Dk. Red |
| 12010300 | PLUG | Silicone | Green |
| DELPHI 280 METRI-PACK TERMINAL REMOVAL TOOL (FOR REF. ONLY) | |||
| Part # 12094430 | |||
| Aptiv (Delphi) 630 Metri-Pack Terminals | |||
|---|---|---|---|
| Part Number | Range (mm²) | Material | Plating |
| 15317331 | 4.00-6.00 | Tin Brass | Tin |
| 12052456 | 3.00-5.00 | Tin Brass | Tin |
| 12052455 | 1.00-2.00 | Tin Brass | Tin |
| 12052457 | 0.50-0.80 | Tin Brass | Tin |
| 15317332 | 4.00-6.00 | Beryllium Copper | Silver/Nickel |
| 15305232 | 3.00-5.00 | Beryllium Copper | Silver/Nickel |
| Aptiv (Delphi) 480 Metri-Pack Cable Seals (Ref. Only) | |||
| Note: 630 Cavities in This Housing Are Designed to Be Used With 480 Series Cable Seals | |||
| Part Number | Cable Dia. | Material | Color |
| 15363779 | 1.20-2.00 | Silicone | Yellow |
| 15324991 | 1.60-2.15 | Silicone | Yellow |
| 15327998 | 2.00-2.70 | Silicone | Blue |
| 15324988 | 2.00-2.90 | Silicone | White |
| 15363604 | 2.00-2.90 | Silicone | White |
| 15324989 | 2.80-3.90 | Silicone | Dk. Red |
| 15327864 | 2.80-3.80 | Silicone | Dk. Red |
| 15363605 | 3.60-4.50 | Silicone | Green |
| 10733145 | 4.40-5.10 | Silicone | Gray |
| 15344647 | 4.40-5.10 | Silicone | Gray |
| 35232480 | Plug | Silicone | Lt. Green |
| Delphi Metri-Pack Terminal Removal Tool (for Ref. Only) | |||
| Part # 12094430 | |||
| Lear Mak8 Plus Terminals (For Ref. Only) | |||
|---|---|---|---|
| Part Number | Range (mm²) | Plating | Variation |
| 28224 306 710 | 2.5-4.0 | Silver | 1 - Long Seal |
| 28469 306 189 | 2.5-4.0 | Silver/Tin | 3 - Short Seal |
| 28225 306 710 | 6.0-10.0 | Silver | 1 - Long Seal |
| 28459 306 189 | 6.0-10.0 | Silver/Tin | 3 - Short Seal |
| 28243 306 710 | 10.0-16.0 | Silver | 1 - Long Seal |
| Gep Cable Seals (Variation 1 - Long) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-L1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-L2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-L3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-L4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-L5 | 5.8-6.6 | Silicone | Gray |
| PDM-TWS-L6 | 6.5-7.8 | Silicone | Red |
| Gep Cable Seals (Variation 3 - Short) | |||
| PDM-TWS-S1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-S2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-S3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-S4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-S5 | 5.8-6.6 | Silicone | Gray |
| Gep Cable Seal Plug | |||
| PDM-TWS-P | N.A. | Silicone | Yellow |
| Lear Mak8 Plus Terminal Removal Tool (For Ref. Only) | |||
| Part # 50000017609 by Karl Püpllhuisen GmbH & Co. | |||
| Aptiv (Delphi) 9.5 Ducon Terminals | |||
|---|---|---|---|
| Part Number | Cable Range (mm²) | Material | Plating |
| 15327010 | 4.0-6.0 | Copper Alloy | Tin |
| 15482568 | 4.0-6.0 | Copper Alloy | Silver/Tin |
| 10730408 | 10 | Copper Alloy | Tin |
| 15408423 | 10 | Copper Alloy | Silver/Tin |
| 15458196 | 16 | Copper Alloy | Tin |
| 15458198 | 16 | Copper Alloy | Silver/Tin |
| Aptiv (Delphi) 9.5 Ducon Cable Seals (For Ref. Only) | |||
| Part Number | Cable Dia. | Material | Color |
| 15492996 | 2.20-3.00 | Silicone | Blue |
| 15327126 | 3.4-4.3 | Silicone | Dk. Red |
| 10720983 | 6.00-6.40 | Silicone | Green |
| 15470809 | 6.50-7.75 | Silicone | Red |
| 10720907 | Plug | Silicone | Green |
| Gep Cable Seals - 9.5 Ducon (For Ref. Only) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-D4 | 4.6-5.3 | Silicone | Light Blue |
| Delphi 9.5 Ducon Terminal Removal Tool (For Ref. Only) | |||
| Part # 10714800 | |||
