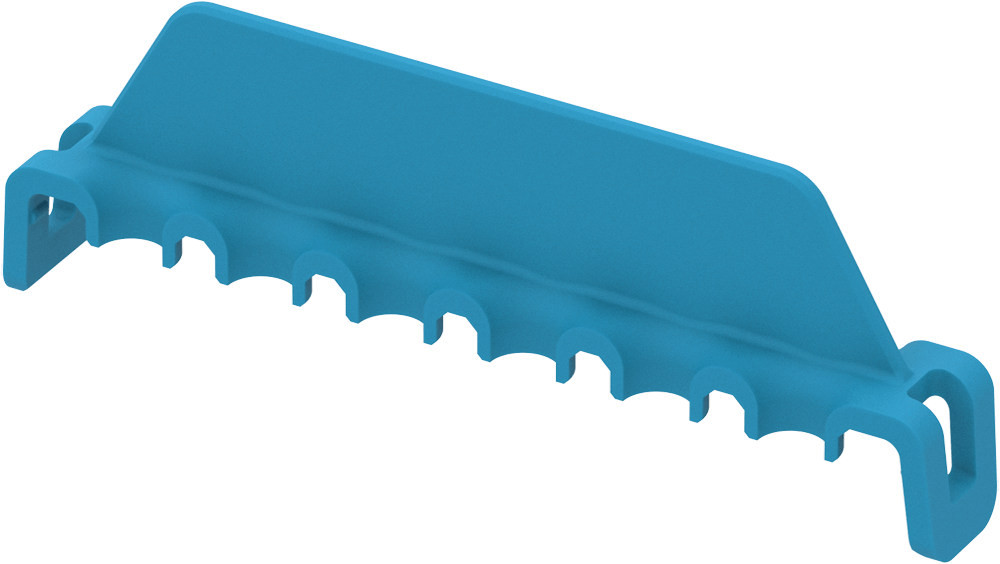

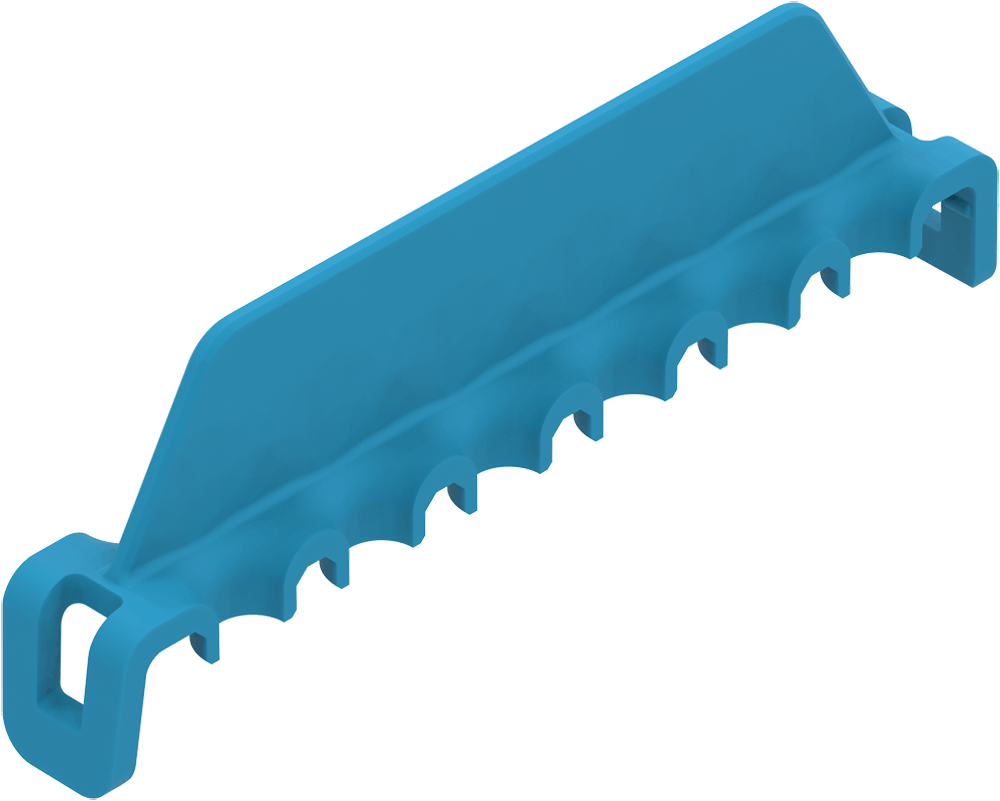

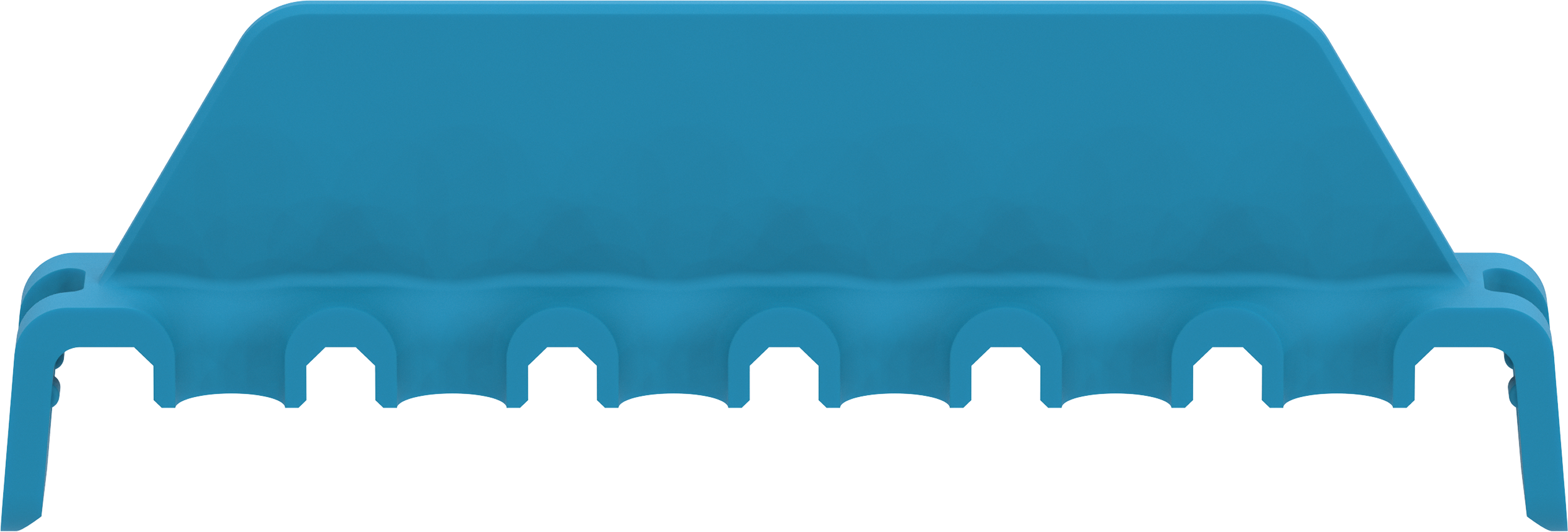

TPA - PDM, FRH
Part Number: FRH-A12-T
Description
The GEP FRH Series PDMs are a high-density sealed PDM with IP67/IP69K protection. Ideal for powersports, outdoor power equipment, and heavy-duty vehicle applications requiring expanded fuse and relay management.
Features
- Unique cover mount design for easy access to housing componentry
- The compact size of the FRH Series PDMs makes it easy to package and integrate.
- Harsh environment handling: With an IP67 and IP69K rating, the FRH Series PDM is designed to withstand harsh environments and provide superior sealing performance.
- Vented cover available
- Various mounting brackets available
- Cover lock accessory available
- TPA accessory available
Applications
High-density PDM for applications requiring more fuse and relay positions in a compact footprint. Ideal for agricultural, construction, military, and specialty vehicles with complex power distribution requirements in sealed, harsh environments.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Materials: PBT
- Flammability: UL94 - V-0
- Series: FRH 12-WAY, FRH 24-WAY, FRH SERIES
- Voltage Range: 58V
| APTIV (DELPHI) 280 METRI-PACK TERMINALS | |||
|---|---|---|---|
| PART NUMBER | CABLE RANGE (mm²) | MATERIAL | PLATING |
| 12077413 | 3 | Tin Brass | Tin |
| 12129493 | 2.0-3.0 | Tin Brass | Tin |
| 12077411 | 0.8-1.0 | Tin Brass | Tin |
| 12084201 | 0.35-0.50 | Tin Brass | Tin |
| 12176387 | 5 | Beryllium Copper | Silver / Nickel |
| 12176388 | 2.0-3.0 | Beryllium Copper | Silver / Nickel |
| 12176389 | 0.8-1.0 | Beryllium Copper | Silver / Nickel |
| APTIV (DELPHI) 280 METRI-PACK CABLE SEALS (FOR REF. ONLY) | |||
| PART NUMBER | CABLE DIAMETER | MATERIAL | COLOR |
| 15324981 | 3.45-4.3 | Silicone | Blue |
| 15324980 | 2.81-3.49 | Silicone | Lt. Gray |
| 15324982 | 2.03-2.85 | Silicone | Green |
| 15324984 | 2.03-2.42 | Silicone | Tan |
| 15324985 | 1.6-2.15 | Silicone | Purple |
| 15324983 | 1.29-1.70 | Silicone | Dk. Red |
| 12010300 | PLUG | Silicone | Green |
| DELPHI 280 METRI-PACK TERMINAL REMOVAL TOOL (FOR REF. ONLY) | |||
| Part # 12094430 | |||
