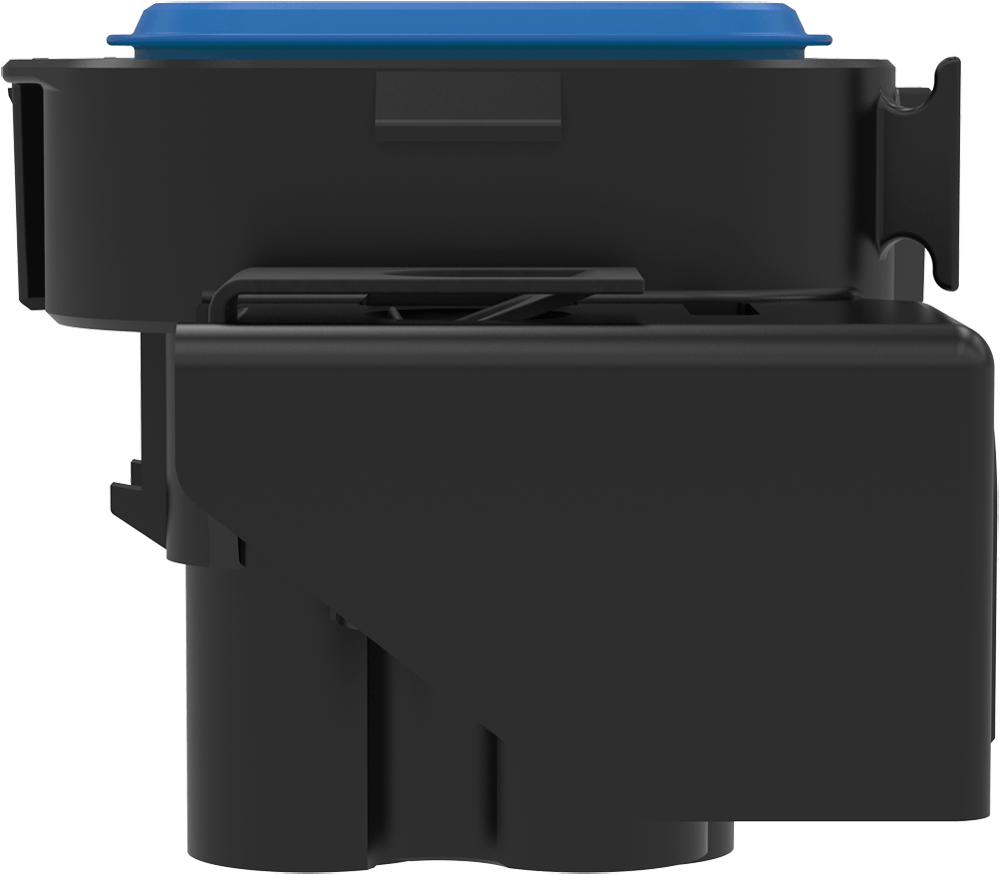

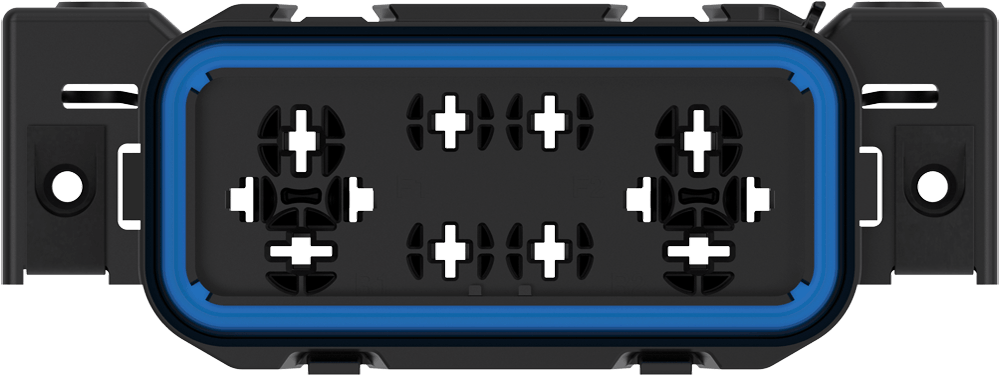

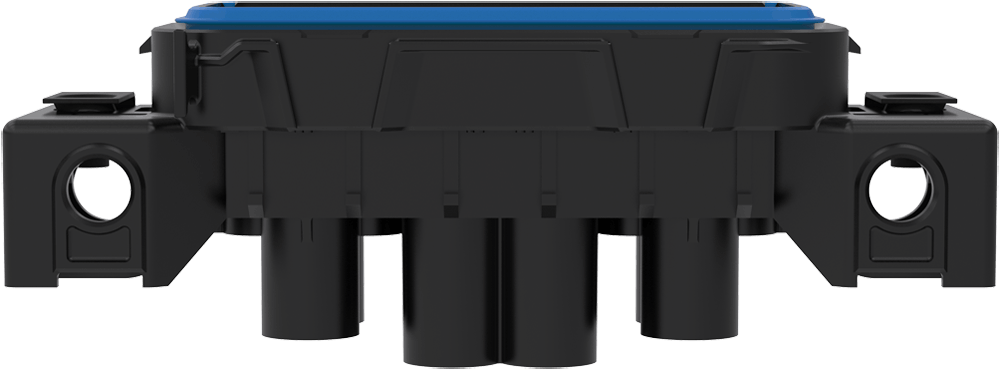

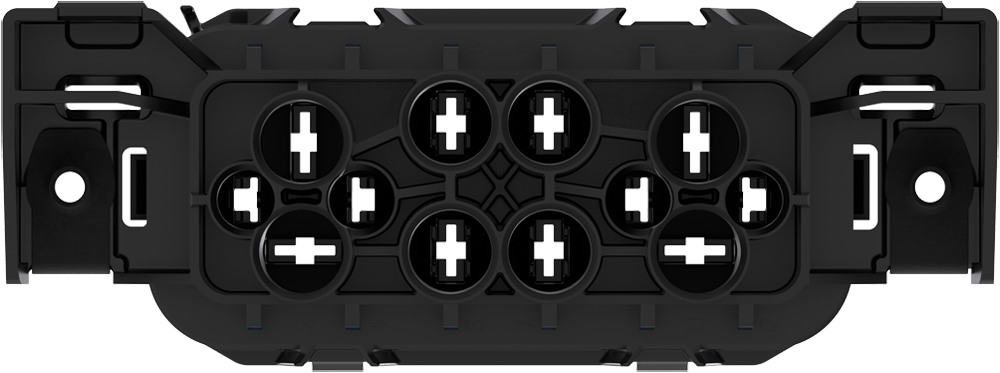

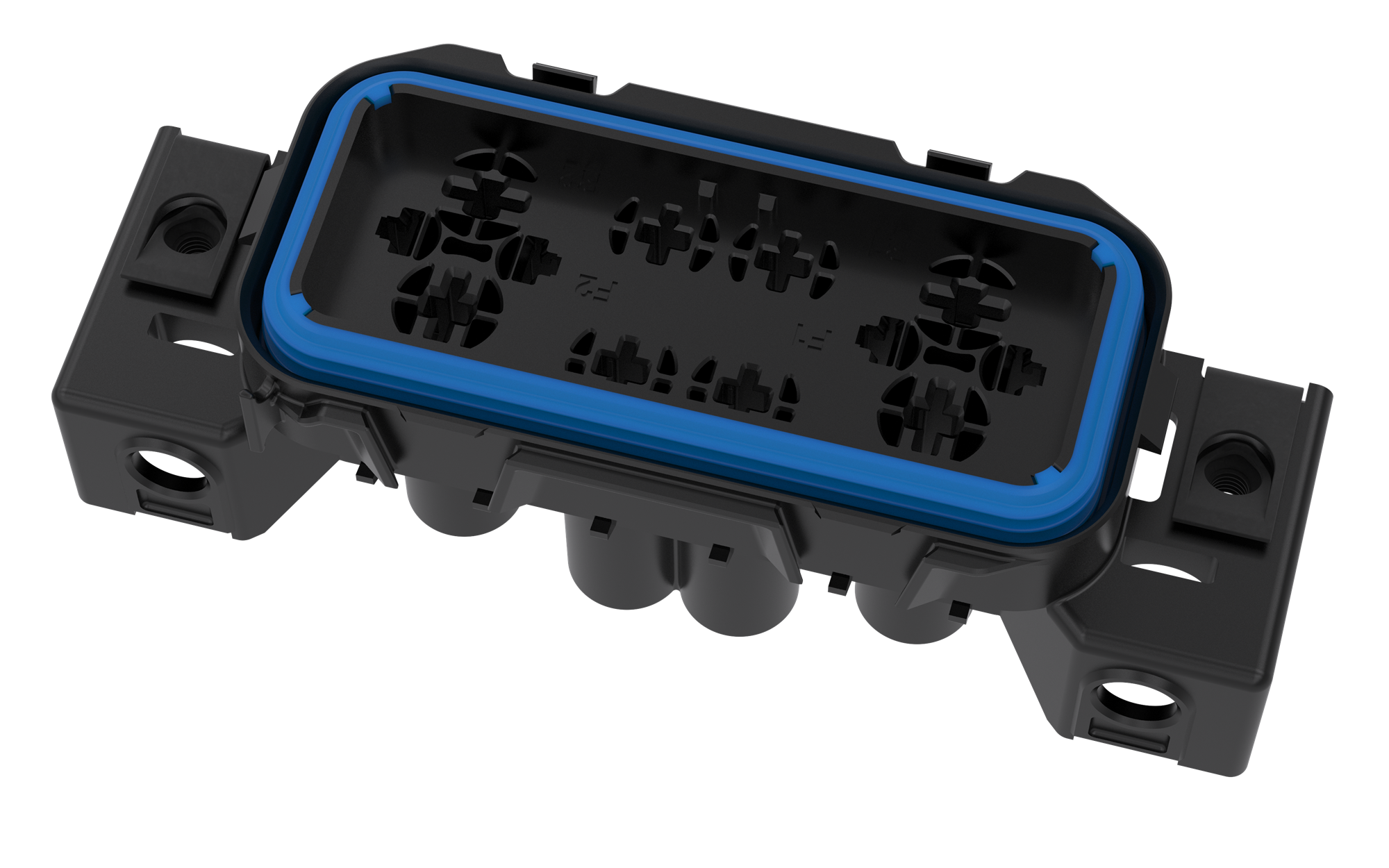

HOUSING AND SEAL - PDM-R - MAXI ISO RELAY AND MAXI FUSE - TM CLPS

Description

The GEP PDM-R Series is a modular 48-position 280-terminal power distribution module with stackable housing options for fuses and relays. IP67/IP69K sealing and modular expansion make it a core platform for powersports, outdoor power equipment, and heavy-duty vehicle electrical architectures.

Features

• Various housing options: A Housing: (48) 280 terminal positions B Housing: (3) MINI ISO Relays C Housing: (2) MAXI Fuse and (2) Maxi Relay Housing D Housing: (6) MAXI FUSE Housing E Housing: (3) MAXI ISO Relays
• Gangable. PDM-R Housings lock together or with PDM-S housings for customizable expansion to meet application needs
• Various cover options available included vented
• Harsh environment handling: With an IP67 and IP69K rating, the PDM-R Series PDM is designed to withstand harsh environments and provide superior sealing performance.
• GEP Multi-Sweep Seal - GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
• Versatile mounting options: Flexible options to mount the PDM via housing mounting holes or with threaded clips.

Applications

The flagship multi-housing PDM for high-density power distribution in demanding environments. Widely used in agricultural equipment, commercial trucks, off-road vehicles, military vehicles, construction machinery, emergency vehicles, and any application requiring sealed, modular, ganged power distribution.
