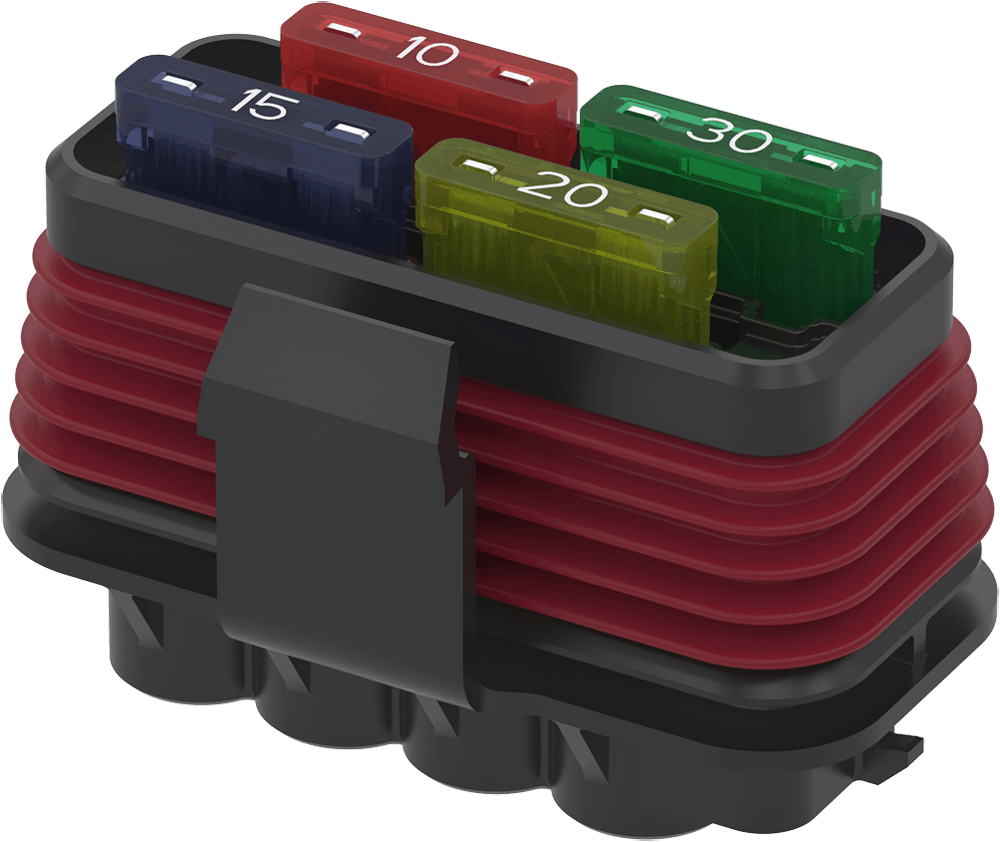

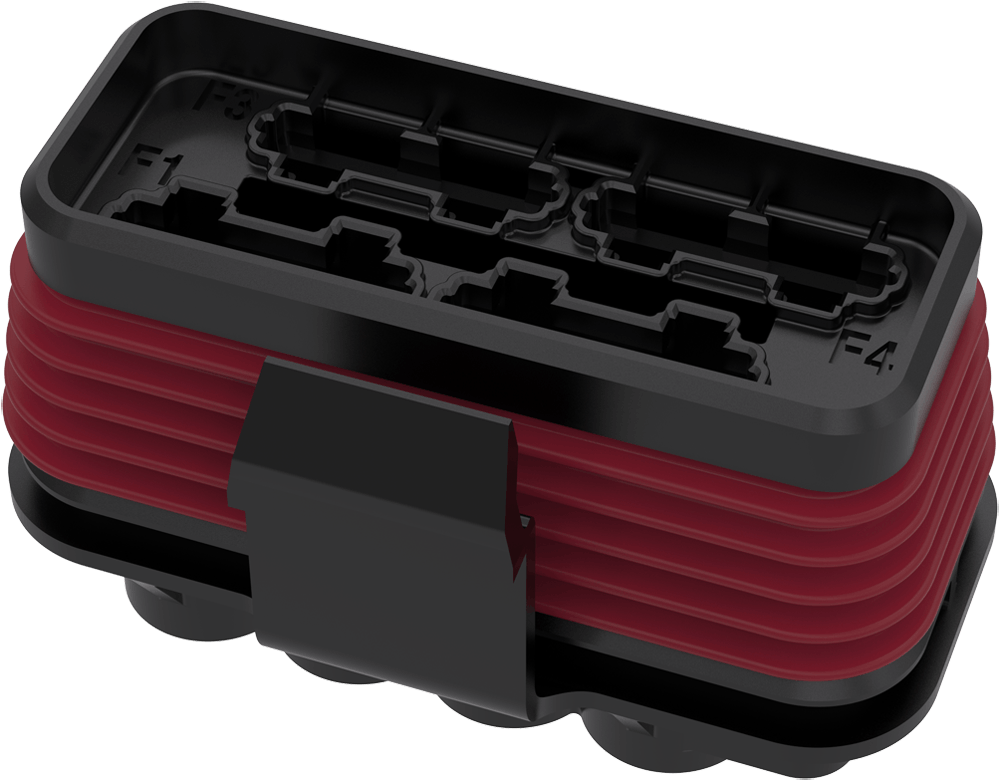

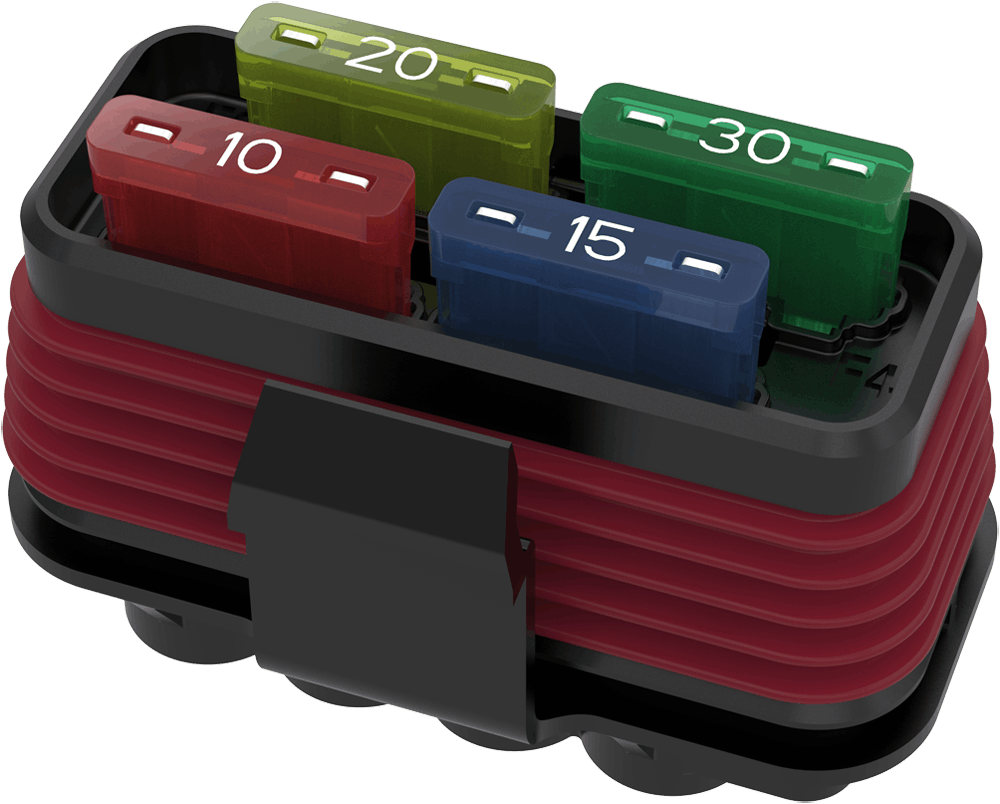

Housing and Seal - PDM, FRH, 4-WAY ATC
Part Number: SC42-2013A-A001
Description
The GEP Power Products FRH Series PDMs are designed to meet the needs of demanding environments, with a focus on compact size, great sealing performance, versatile mounting options and a range of housings, covers and accessories.
Features
- Ease of packaging: The compact size of the FRH Series PDMs makes it easy to package and integrate.
- Harsh environment handling: With an IP67 and IP66 rating, the FRH Series PDM is designed to withstand harsh environments and provide superior sealing performance.
- GEP Multi-Sweep Seal: GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
- Multiple cover and housing options: The FRH Series PDM offers a range of covers and housing options to meet your specific needs.
- Various mounting options: The FRH Series PDM can be mounted in a variety of ways, providing flexibility in installation. Unique cover mount allows quick access to the fuse and relay holder.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Materials: PBT, Silicone
- Flammability: UL94 - V-0
- IP Rating: IP66, IP67, IP69K
- Series: FRH 4-WAY ATC, FRH SERIES
- Terminal: Delphi Metri-Pack 630
- Fusing: ATO/ATC Fuse
- Voltage Range: 58V
| Aptiv (Delphi) 630 Metri-Pack Terminals | |||
|---|---|---|---|
| Part Number | Range (mm²) | Material | Plating |
| 15317331 | 4.00-6.00 | Tin Brass | Tin |
| 12052456 | 3.00-5.00 | Tin Brass | Tin |
| 12052455 | 1.00-2.00 | Tin Brass | Tin |
| 12052457 | 0.50-0.80 | Tin Brass | Tin |
| 15317332 | 4.00-6.00 | Beryllium Copper | Silver/Nickel |
| 15305232 | 3.00-5.00 | Beryllium Copper | Silver/Nickel |
| Aptiv (Delphi) 480 Metri-Pack Cable Seals (Ref. Only) | |||
| Note: 630 Cavities in This Housing Are Designed to Be Used With 480 Series Cable Seals | |||
| Part Number | Cable Dia. | Material | Color |
| 15363779 | 1.20-2.00 | Silicone | Yellow |
| 15324991 | 1.60-2.15 | Silicone | Yellow |
| 15327998 | 2.00-2.70 | Silicone | Blue |
| 15324988 | 2.00-2.90 | Silicone | White |
| 15363604 | 2.00-2.90 | Silicone | White |
| 15324989 | 2.80-3.90 | Silicone | Dk. Red |
| 15327864 | 2.80-3.80 | Silicone | Dk. Red |
| 15363605 | 3.60-4.50 | Silicone | Green |
| 10733145 | 4.40-5.10 | Silicone | Gray |
| 15344647 | 4.40-5.10 | Silicone | Gray |
| 35232480 | Plug | Silicone | Lt. Green |
| Delphi Metri-Pack Terminal Removal Tool (for Ref. Only) | |||
| Part # 12094430 | |||
