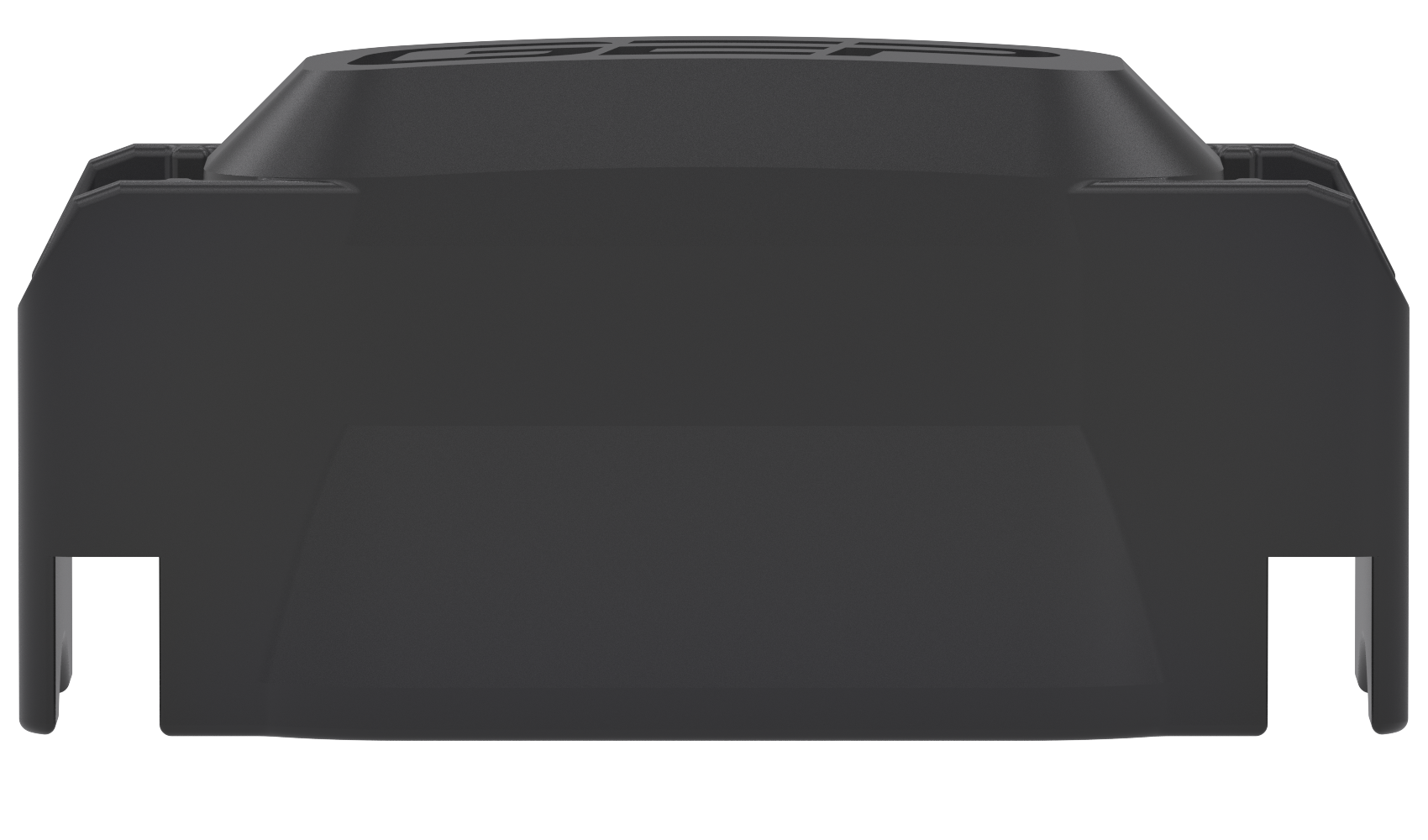

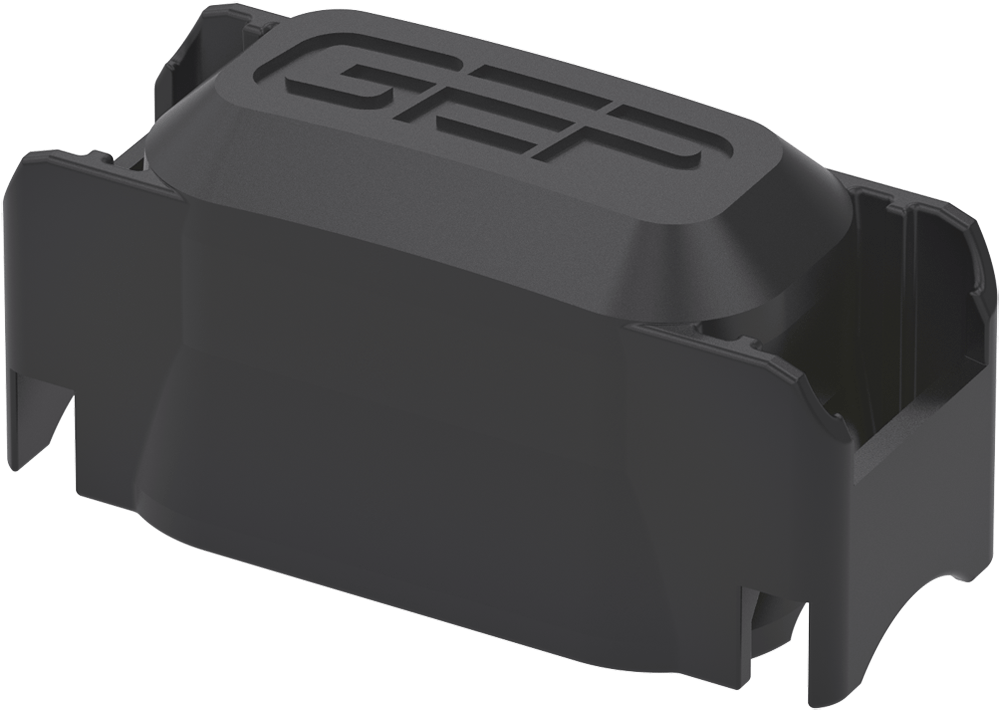

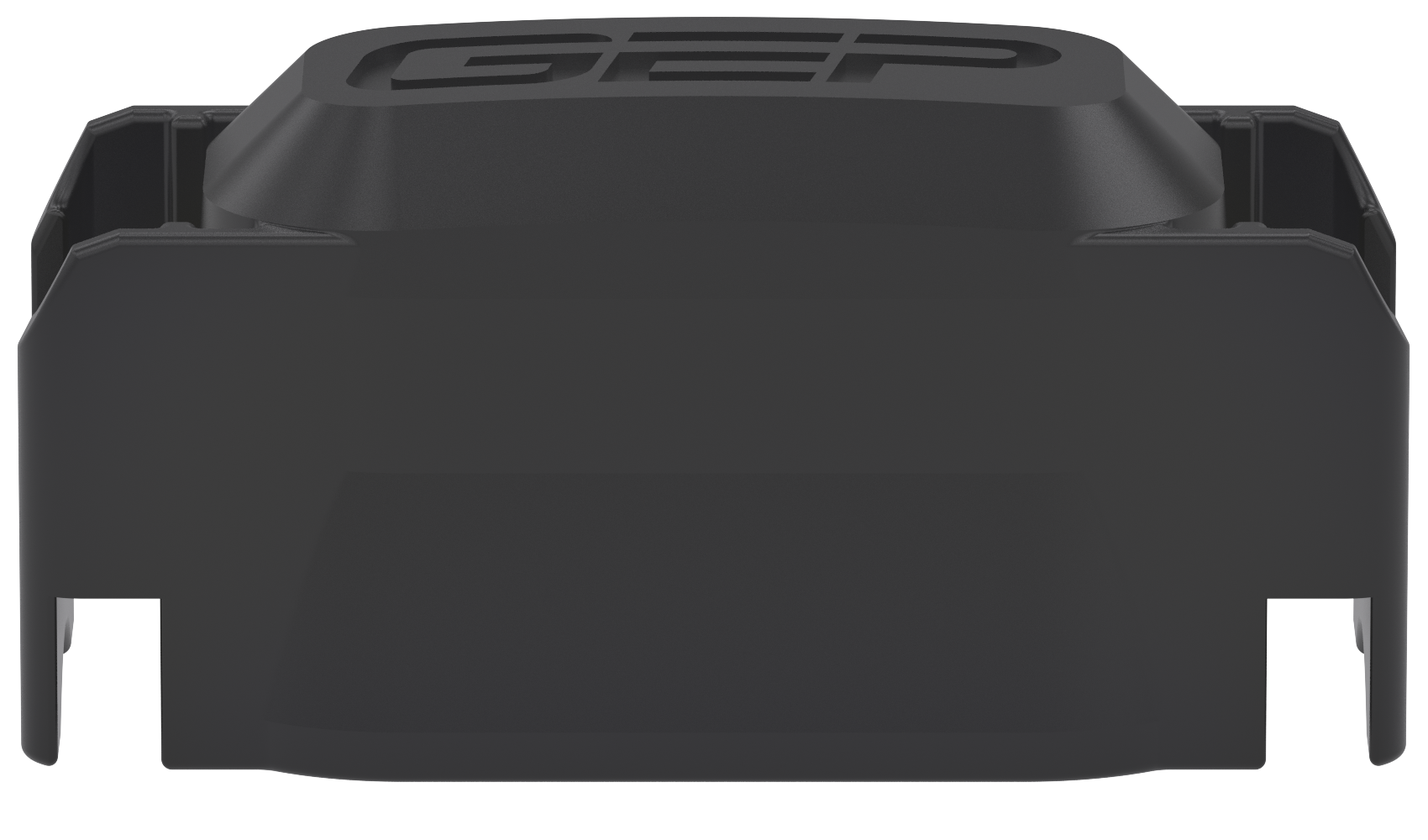

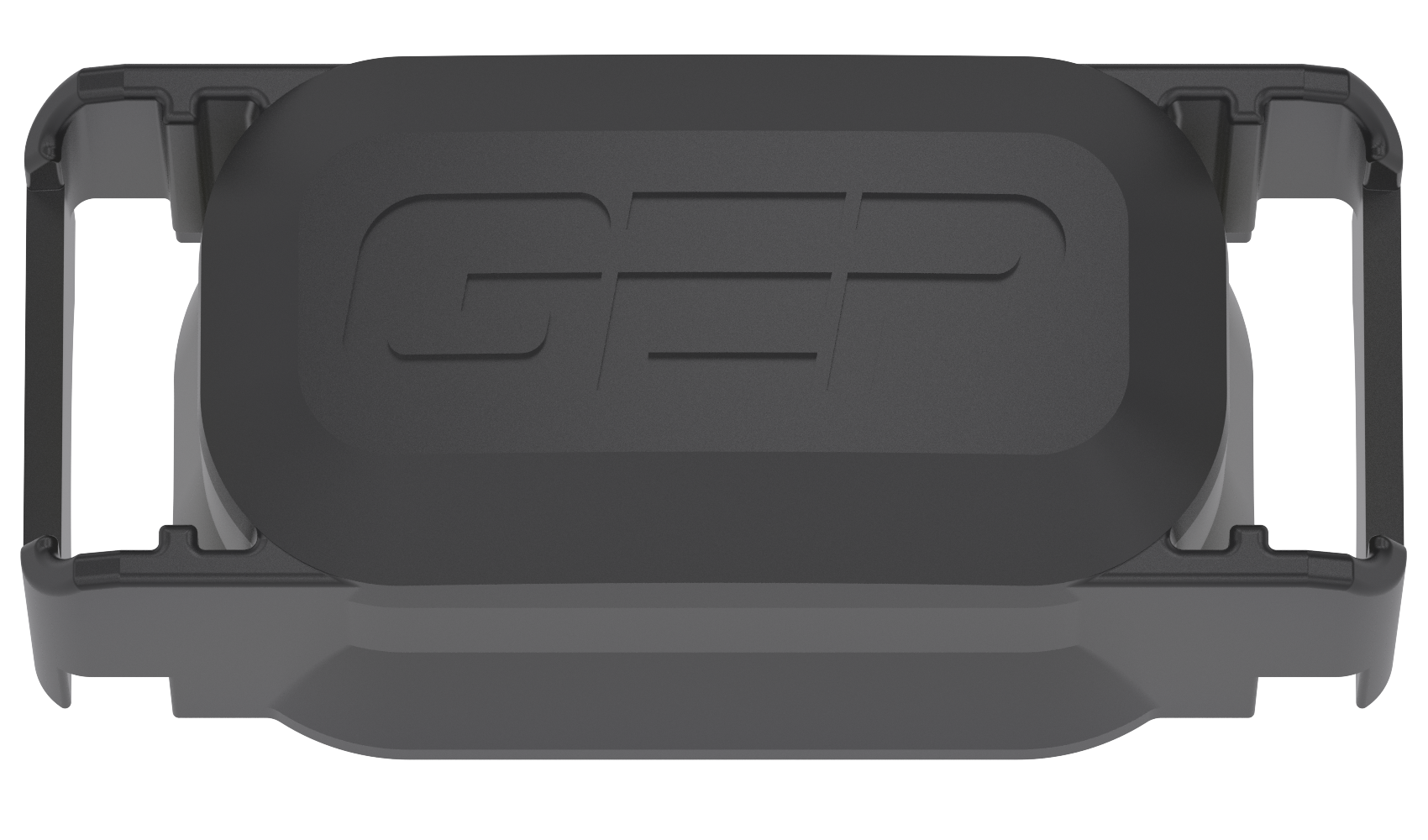

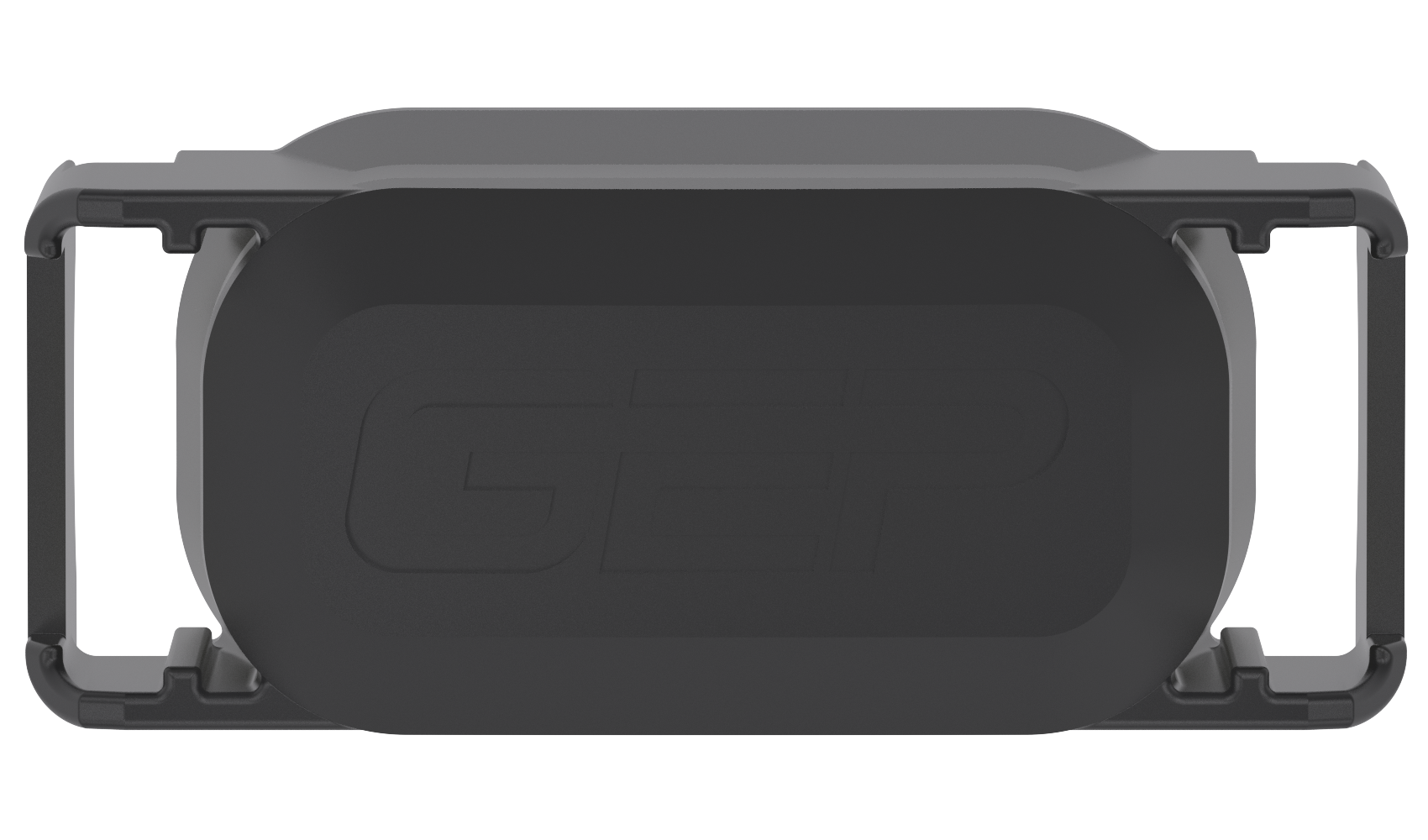

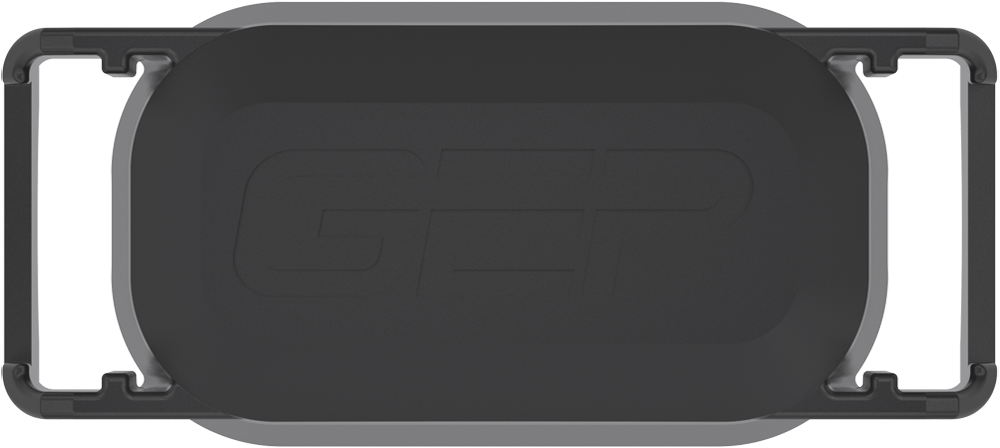

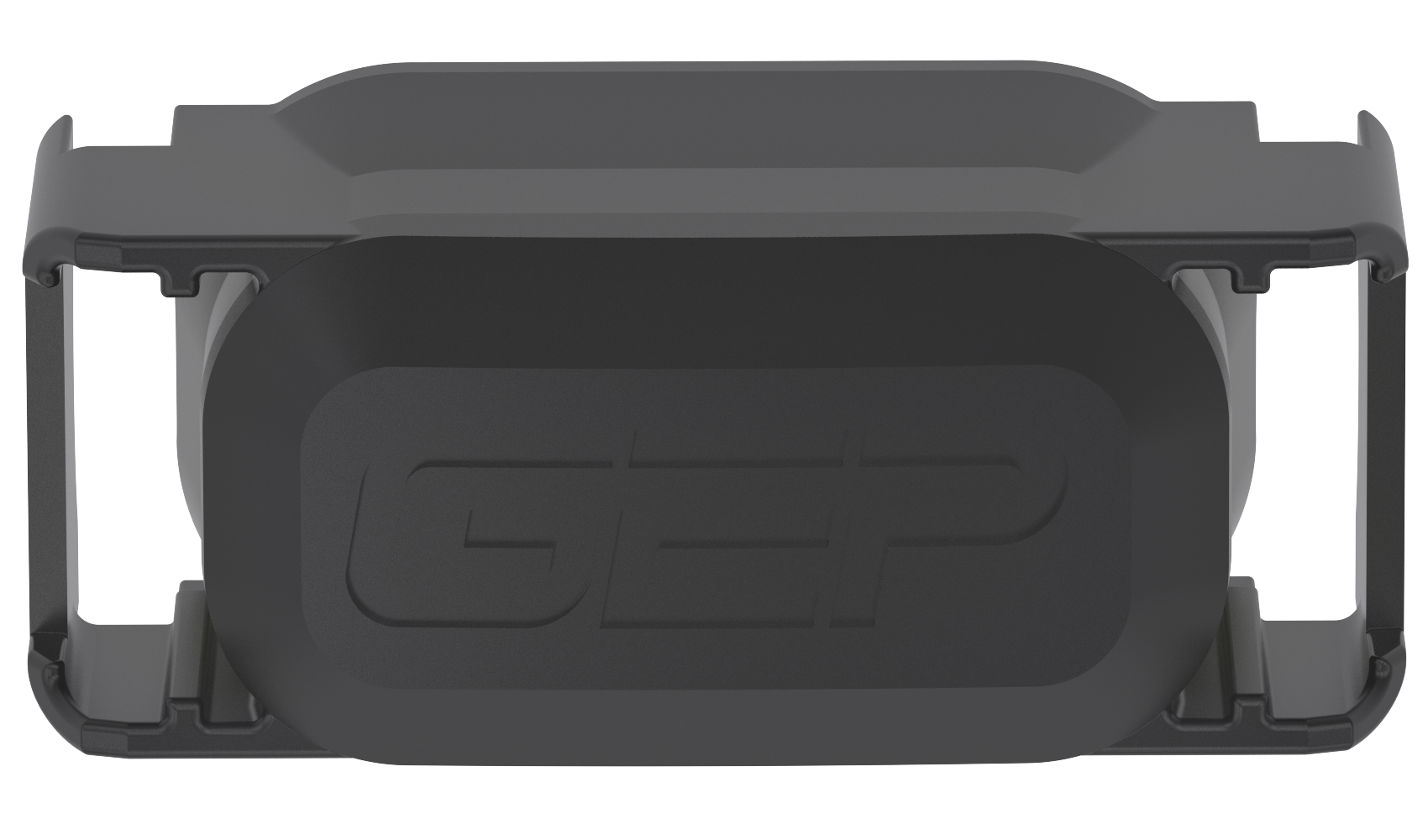

COVER - IN-LINE JCASE HOLDER
Part Number: SC27-2003A-B001
Description
The GEP In-Line JCASE Series is an IP69K-rated in-line JCASE fuse holder designed for harness integration at the circuit branch point. GEP Multi-Sweep sealing provides reliable ingress protection while supporting flexible mounting options. Built for powersports, outdoor power equipment, and heavy-duty vehicle OEM harness applications.
Features
- Single compact in-line JCASE fuse holder
- Harsh environment handling: With an IP69K rating
- GEP Multi-Sweep Seal - GEP seals are designed to use multiple sweeping seals to give your application the greatest protection from ingression while making it easy to engage and disengage.
- Various mounting options via zip ties or press fit mounting clip for panel mounting
- Cover lock accessory available
- TPA accessory available
Applications
In-line JCASE fuse holder for circuit protection in wiring harness applications. Used for main power or primary auxilary feeds. Designed for automotive, truck, agricultural, and specialty vehicle OEM harness manufacturers requiring rugged, sealed fuse protection in line with the circuit wiring.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Materials: PBT, Unfilled Nylon
- Flammability: UL94 - V-0
- IP Rating: IP66, IP67, IP69K
- Series: FRH 4-WAY ATC, IN-LINE JCASE
- Colors: Black
- Voltage Range: 58V
| APTIV (DELPHI) 280 METRI-PACK TERMINALS | |||
|---|---|---|---|
| PART NUMBER | CABLE RANGE (mm²) | MATERIAL | PLATING |
| 12077413 | 3 | Tin Brass | Tin |
| 12129493 | 2.0-3.0 | Tin Brass | Tin |
| 12077411 | 0.8-1.0 | Tin Brass | Tin |
| 12084201 | 0.35-0.50 | Tin Brass | Tin |
| 12176387 | 5 | Beryllium Copper | Silver / Nickel |
| 12176388 | 2.0-3.0 | Beryllium Copper | Silver / Nickel |
| 12176389 | 0.8-1.0 | Beryllium Copper | Silver / Nickel |
| APTIV (DELPHI) 280 METRI-PACK CABLE SEALS (FOR REF. ONLY) | |||
| PART NUMBER | CABLE DIAMETER | MATERIAL | COLOR |
| 15324981 | 3.45-4.3 | Silicone | Blue |
| 15324980 | 2.81-3.49 | Silicone | Lt. Gray |
| 15324982 | 2.03-2.85 | Silicone | Green |
| 15324984 | 2.03-2.42 | Silicone | Tan |
| 15324985 | 1.6-2.15 | Silicone | Purple |
| 15324983 | 1.29-1.70 | Silicone | Dk. Red |
| 12010300 | PLUG | Silicone | Green |
| DELPHI 280 METRI-PACK TERMINAL REMOVAL TOOL (FOR REF. ONLY) | |||
| Part # 12094430 | |||
| Aptiv (Delphi) 630 Metri-Pack Terminals | |||
|---|---|---|---|
| Part Number | Range (mm²) | Material | Plating |
| 15317331 | 4.00-6.00 | Tin Brass | Tin |
| 12052456 | 3.00-5.00 | Tin Brass | Tin |
| 12052455 | 1.00-2.00 | Tin Brass | Tin |
| 12052457 | 0.50-0.80 | Tin Brass | Tin |
| 15317332 | 4.00-6.00 | Beryllium Copper | Silver/Nickel |
| 15305232 | 3.00-5.00 | Beryllium Copper | Silver/Nickel |
| Aptiv (Delphi) 480 Metri-Pack Cable Seals (Ref. Only) | |||
| Note: 630 Cavities in This Housing Are Designed to Be Used With 480 Series Cable Seals | |||
| Part Number | Cable Dia. | Material | Color |
| 15363779 | 1.20-2.00 | Silicone | Yellow |
| 15324991 | 1.60-2.15 | Silicone | Yellow |
| 15327998 | 2.00-2.70 | Silicone | Blue |
| 15324988 | 2.00-2.90 | Silicone | White |
| 15363604 | 2.00-2.90 | Silicone | White |
| 15324989 | 2.80-3.90 | Silicone | Dk. Red |
| 15327864 | 2.80-3.80 | Silicone | Dk. Red |
| 15363605 | 3.60-4.50 | Silicone | Green |
| 10733145 | 4.40-5.10 | Silicone | Gray |
| 15344647 | 4.40-5.10 | Silicone | Gray |
| 35232480 | Plug | Silicone | Lt. Green |
| Delphi Metri-Pack Terminal Removal Tool (for Ref. Only) | |||
| Part # 12094430 | |||
| Lear Mak8 Plus Terminals (For Ref. Only) | |||
|---|---|---|---|
| Part Number | Range (mm²) | Plating | Variation |
| 28224 306 710 | 2.5-4.0 | Silver | 1 - Long Seal |
| 28469 306 189 | 2.5-4.0 | Silver/Tin | 3 - Short Seal |
| 28225 306 710 | 6.0-10.0 | Silver | 1 - Long Seal |
| 28459 306 189 | 6.0-10.0 | Silver/Tin | 3 - Short Seal |
| 28243 306 710 | 10.0-16.0 | Silver | 1 - Long Seal |
| Gep Cable Seals (Variation 1 - Long) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-L1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-L2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-L3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-L4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-L5 | 5.8-6.6 | Silicone | Gray |
| PDM-TWS-L6 | 6.5-7.8 | Silicone | Red |
| Gep Cable Seals (Variation 3 - Short) | |||
| PDM-TWS-S1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-S2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-S3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-S4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-S5 | 5.8-6.6 | Silicone | Gray |
| Gep Cable Seal Plug | |||
| PDM-TWS-P | N.A. | Silicone | Yellow |
| Lear Mak8 Plus Terminal Removal Tool (For Ref. Only) | |||
| Part # 50000017609 by Karl Püpllhuisen GmbH & Co. | |||
| Aptiv (Delphi) 9.5 Ducon Terminals | |||
|---|---|---|---|
| Part Number | Cable Range (mm²) | Material | Plating |
| 15327010 | 4.0-6.0 | Copper Alloy | Tin |
| 15482568 | 4.0-6.0 | Copper Alloy | Silver/Tin |
| 10730408 | 10 | Copper Alloy | Tin |
| 15408423 | 10 | Copper Alloy | Silver/Tin |
| 15458196 | 16 | Copper Alloy | Tin |
| 15458198 | 16 | Copper Alloy | Silver/Tin |
| Aptiv (Delphi) 9.5 Ducon Cable Seals (For Ref. Only) | |||
| Part Number | Cable Dia. | Material | Color |
| 15492996 | 2.20-3.00 | Silicone | Blue |
| 15327126 | 3.4-4.3 | Silicone | Dk. Red |
| 10720983 | 6.00-6.40 | Silicone | Green |
| 15470809 | 6.50-7.75 | Silicone | Red |
| 10720907 | Plug | Silicone | Green |
| Gep Cable Seals - 9.5 Ducon (For Ref. Only) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-D4 | 4.6-5.3 | Silicone | Light Blue |
| Delphi 9.5 Ducon Terminal Removal Tool (For Ref. Only) | |||
| Part # 10714800 | |||
