SC55-2000A-A001 - METRI-PACK 280 SEALED CAVITY PLUG AND RELAY KEY

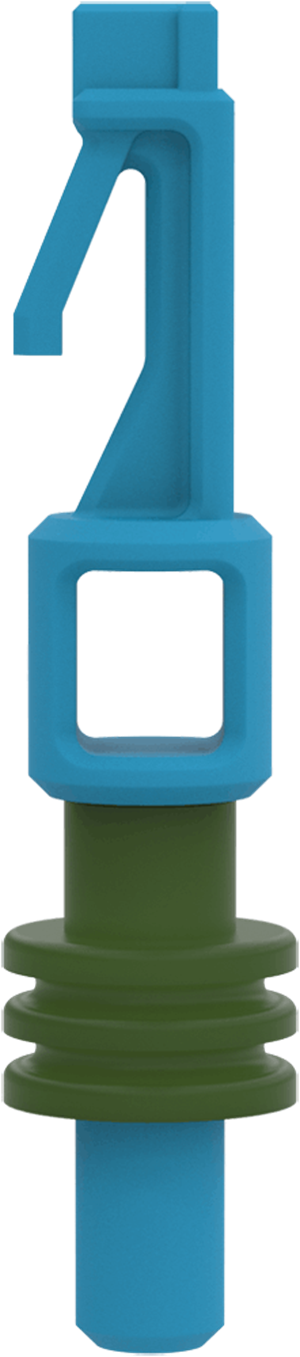

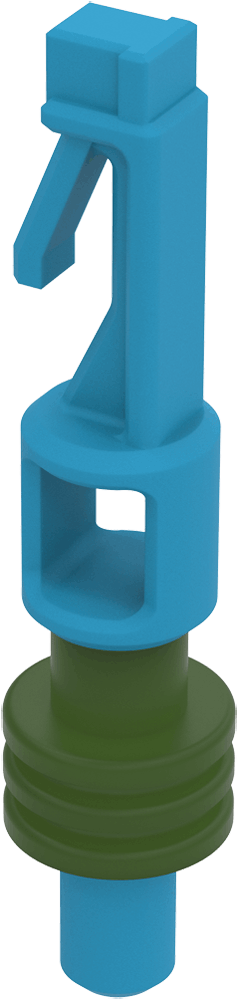

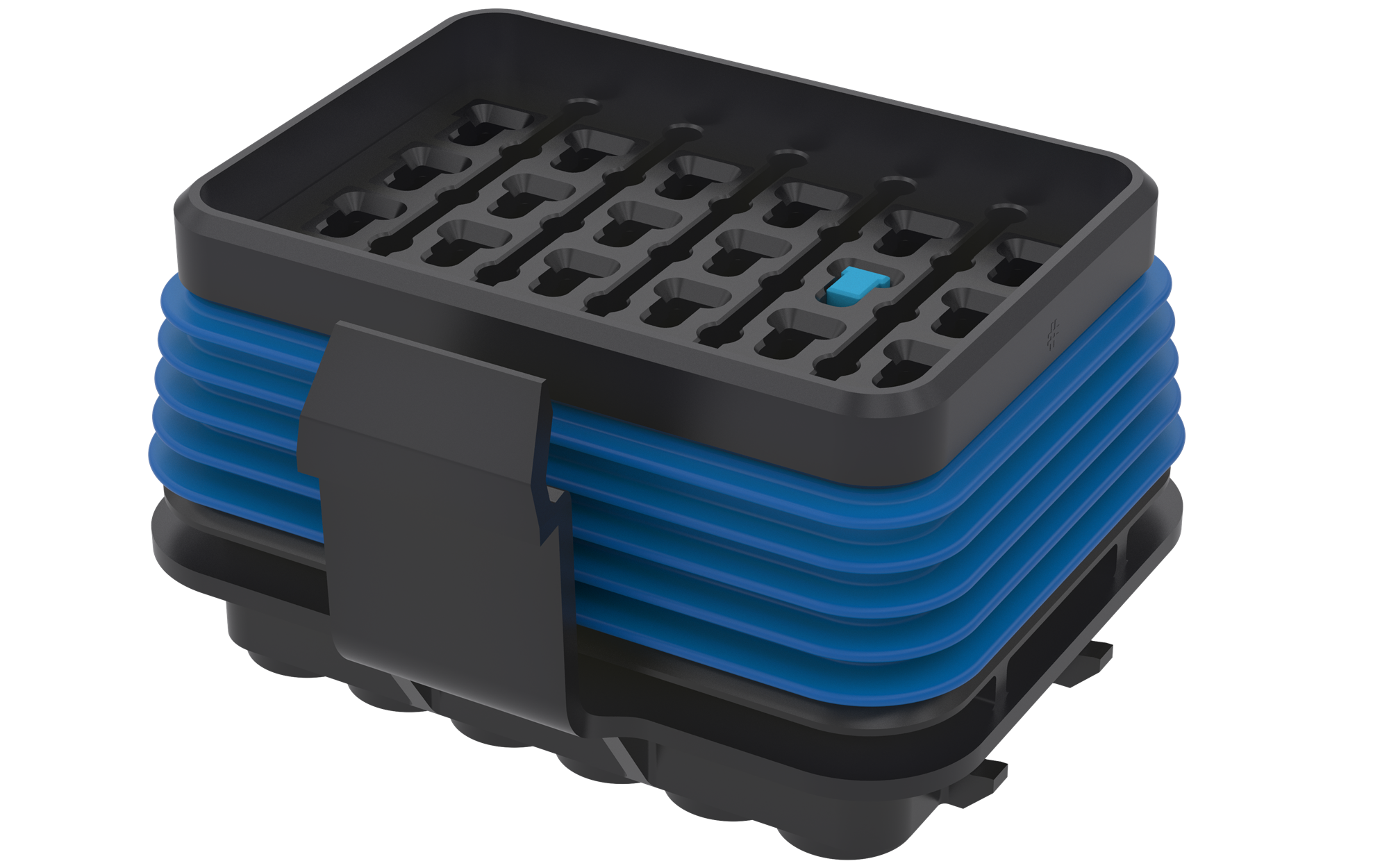

The GEP Metri-Pack 280 Tanged Terminal Cavity Plug is designed to seal and physically block unused Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities in GEP Power Distribution Modules (PDMs). Featuring an integrated silicone seal, the plug extends to the component-side cavity surface, preventing terminal insertion into the occupied position. It also provides mechanical poka-yoke functionality to help prevent incorrect 5-pin micro relay installation in applicable configurations.

Features

• Designed specifically for Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities
• Integrated silicone seal for sealing unused terminal cavities
• Extends to the component-side cavity surface to physically prevent terminal insertion

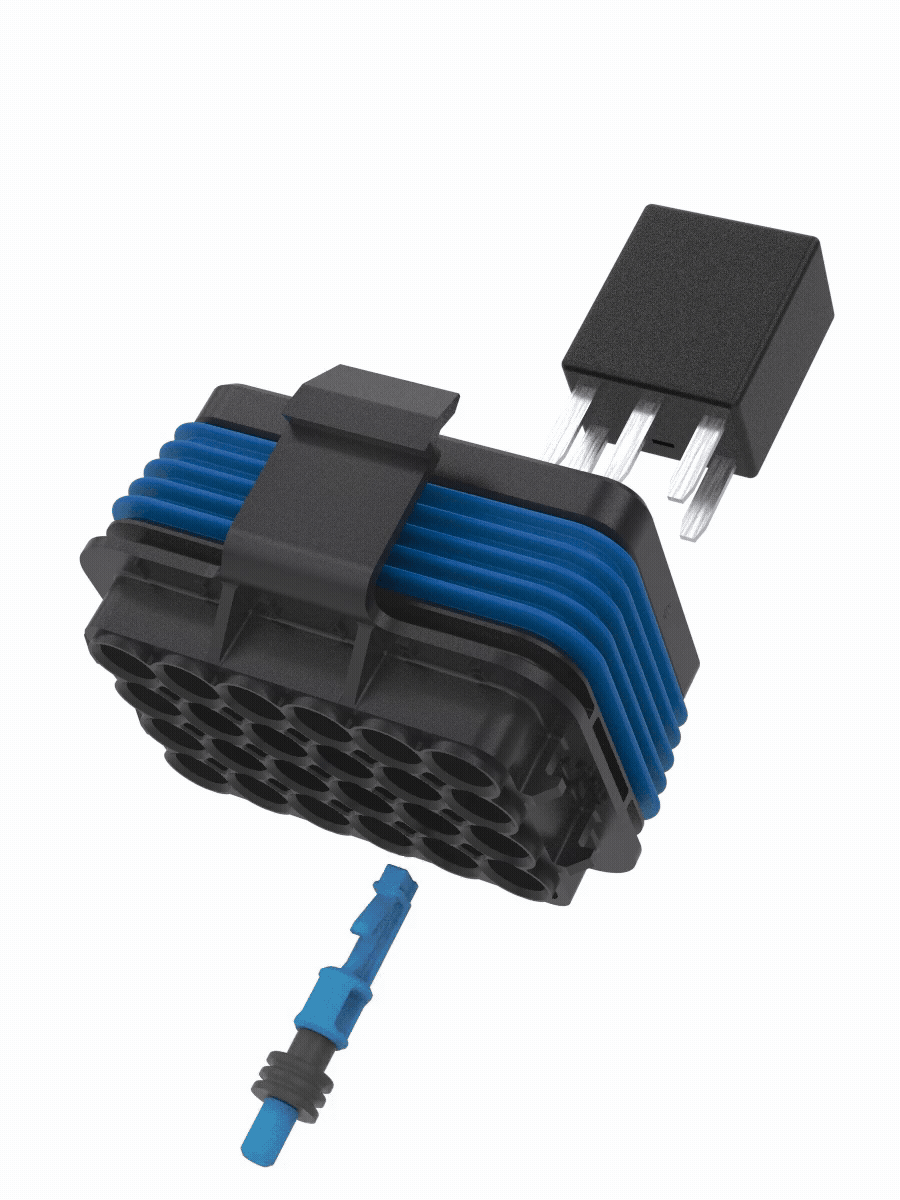

• Provides mechanical poka-yoke functionality for applicable 5-pin micro relay configurations
• Compatible with GEP PDMs utilizing Metri-Pack 280 tanged terminal cavities
• Durable PBT construction with silicone sealing element
• Not compatible with Metri-Pack 280 tangless terminal cavities

Applications

Used in GEP Power Distribution Modules with Aptiv (Delphi) Metri-Pack 280 tanged terminal cavities to seal and block unused terminal positions, prevent unintended terminal installation, and provide mechanical keying for applicable 5-pin micro relay configurations. Suitable for power distribution applications in powersports, agricultural equipment, commercial vehicles, construction machinery, and other OEM electrical systems.
