Housing and Seal - PTS

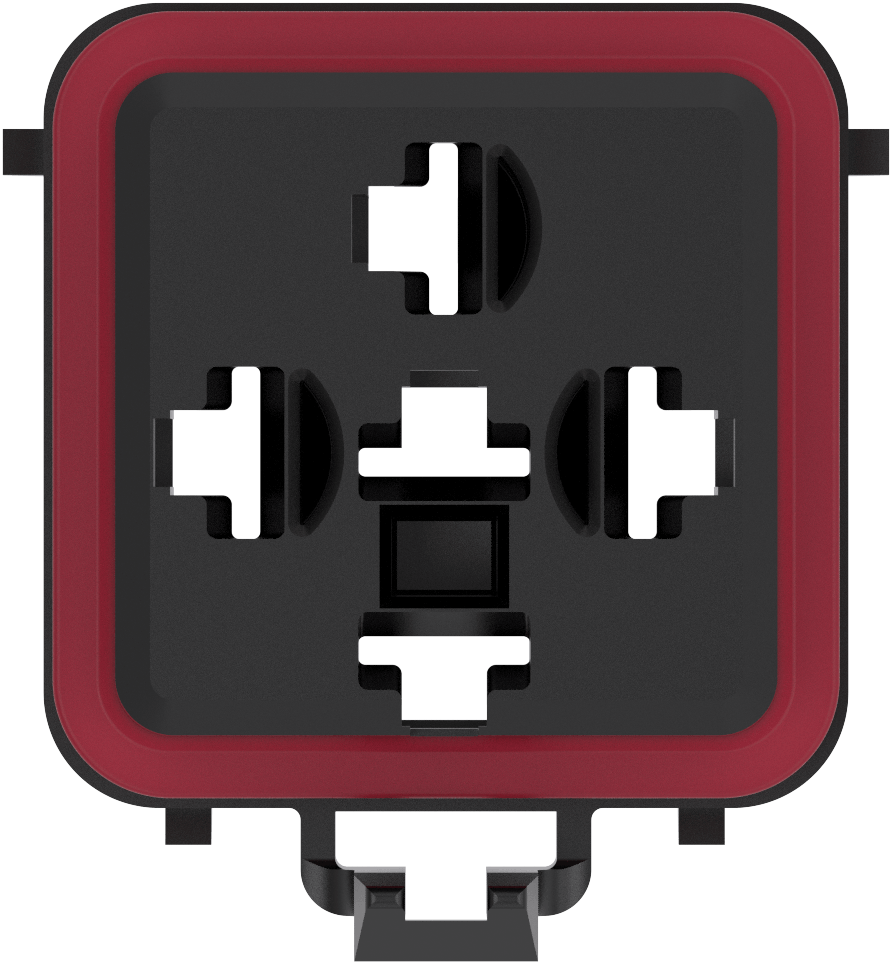

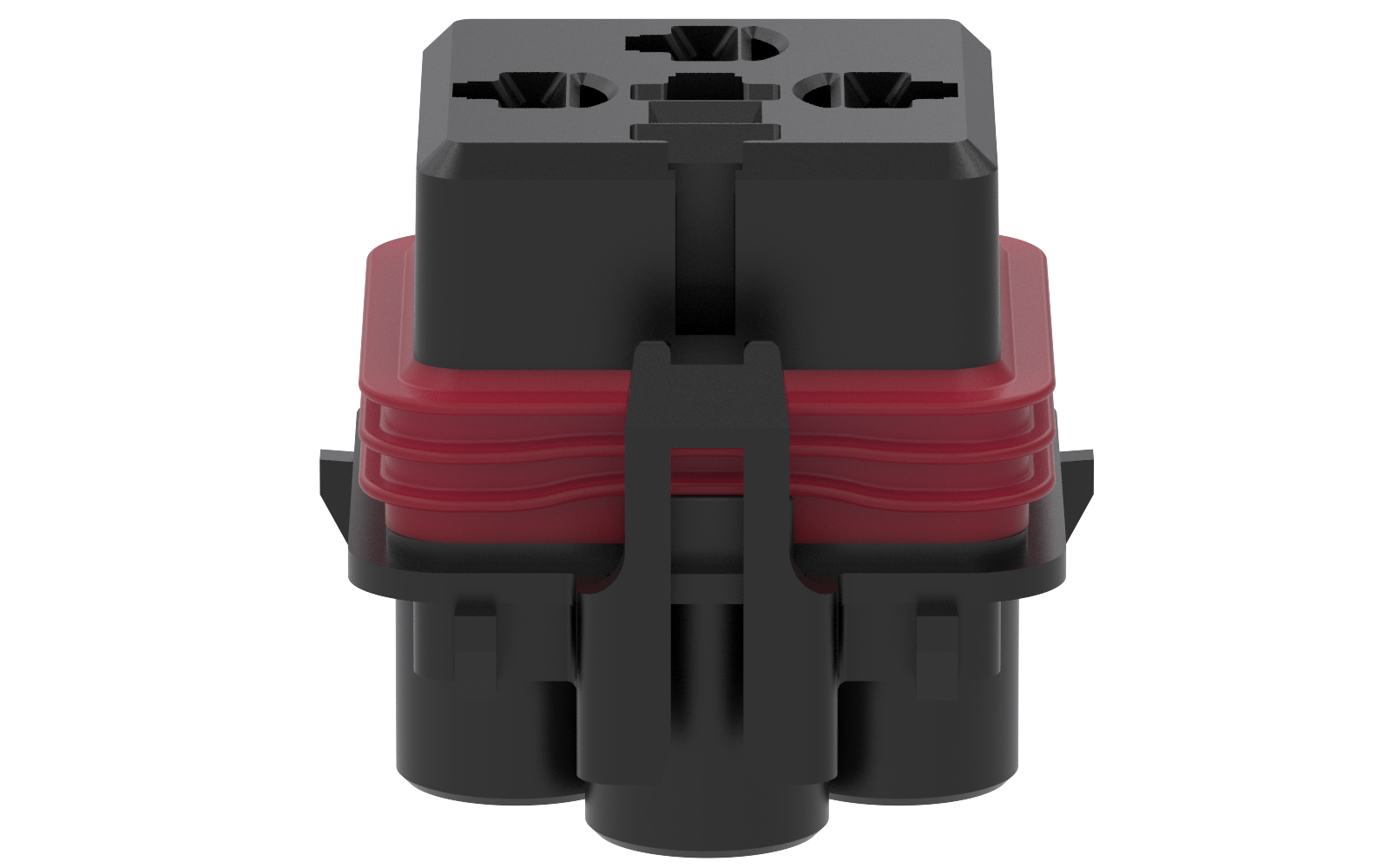

Part Number: PTSR-A

Description

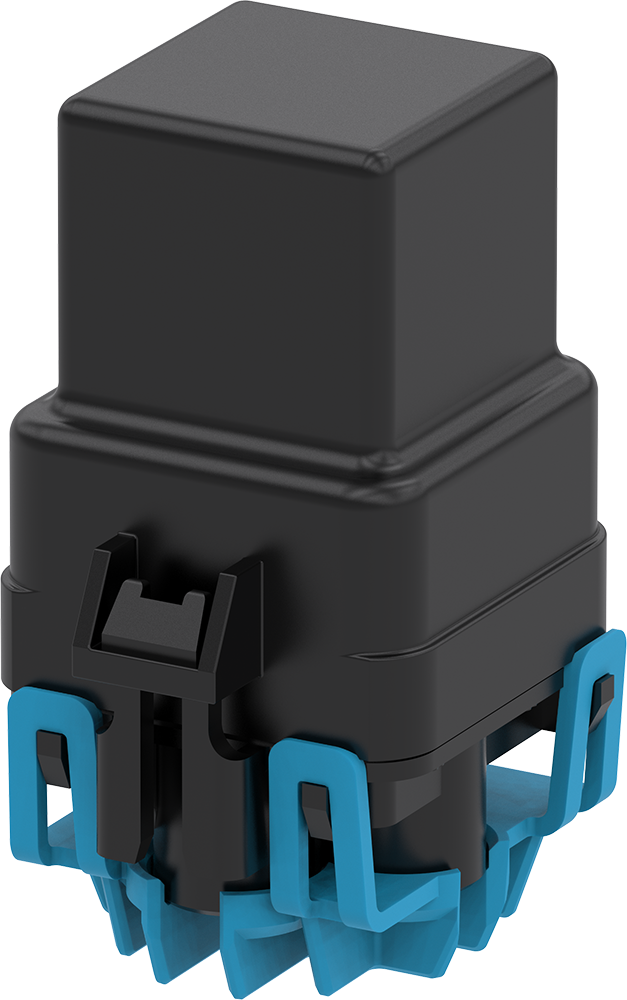

The GEP Push-To-Seat Mini ISO Relay Connector The GEP PTSR-X Push-to-Seat sealed relay connector is specifically designed to accept standard Mini ISO relays, Delphi 630 Metri-Pack terminals and 480 Metri-Pack seals. This uniquely designed sealed unit also features a Push-to-Seat connection system, that eliminates the costly and labor intensive “5 step” pull-to-seat assembly approach.

  • Sealed, rated at IP66 and IP67
  • Labor saving “push-to-seat” connection system
  • Molded in rugged polyester thermoplastic material
  • Accepts any wire size, in any cavity using
  • Delphi 630 Metri-Pack sealed push-to-seat terminals

Purchase

GEP Standard Products are sold through a distributor.

Locate a distributor

Attributes

  • IP Rating: IP66, IP67, IP69K
  • Flammability: UL94 - V-0
  • Series: PTSR
  • Terminal: Delphi Metri-Pack 630
  • Voltage Range: 58V

Downloads

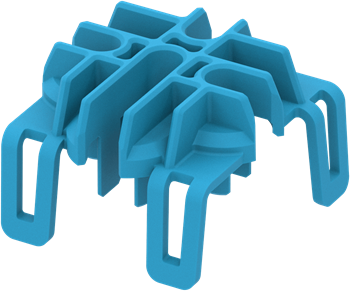

PTSR-T_SALES_REV0 stp
PTSR-A CAD MODEL stp
PTSR-T_SALES_REV0 pdf
PTSR-X SALES DRAWING pdf
