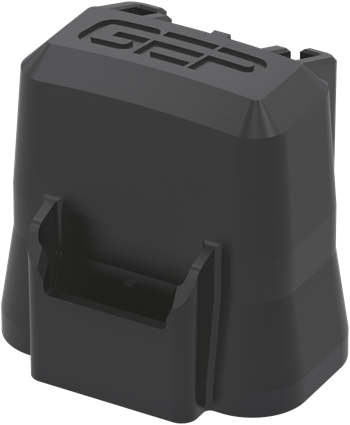

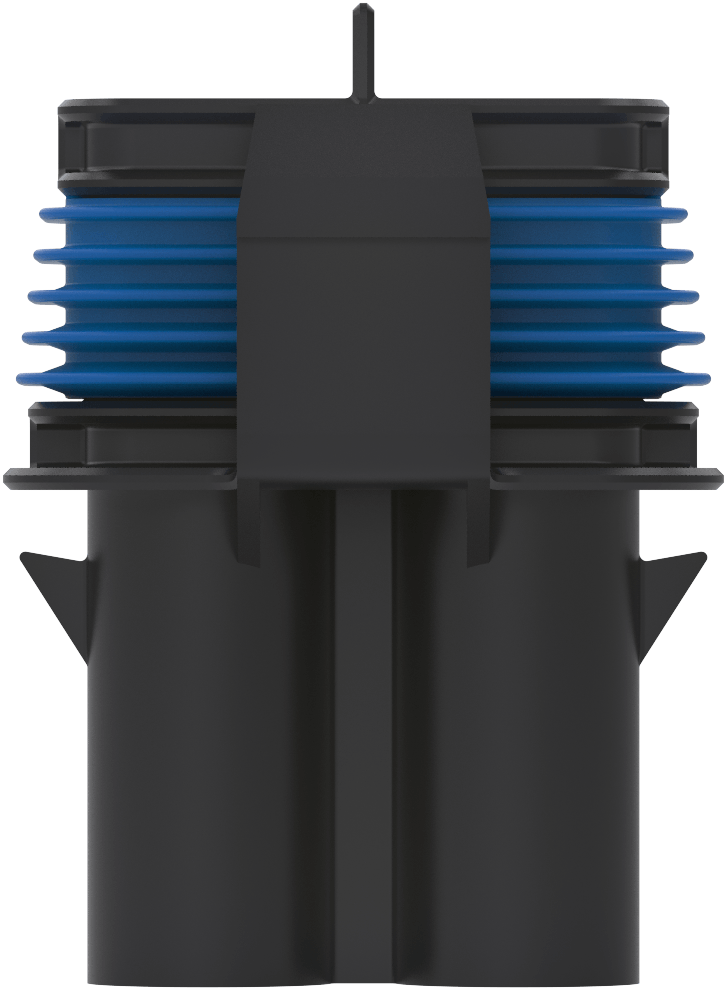

HOUSING AND SEAL - PDM - FRH MAXI - 32V
Part Number: SC42-2007A-B001

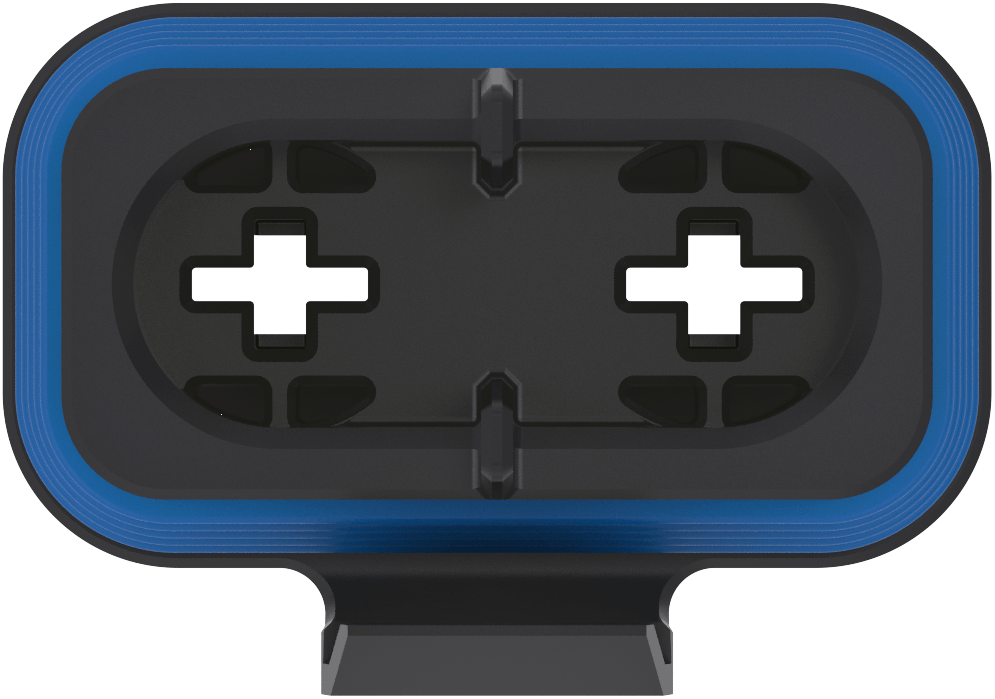

Description

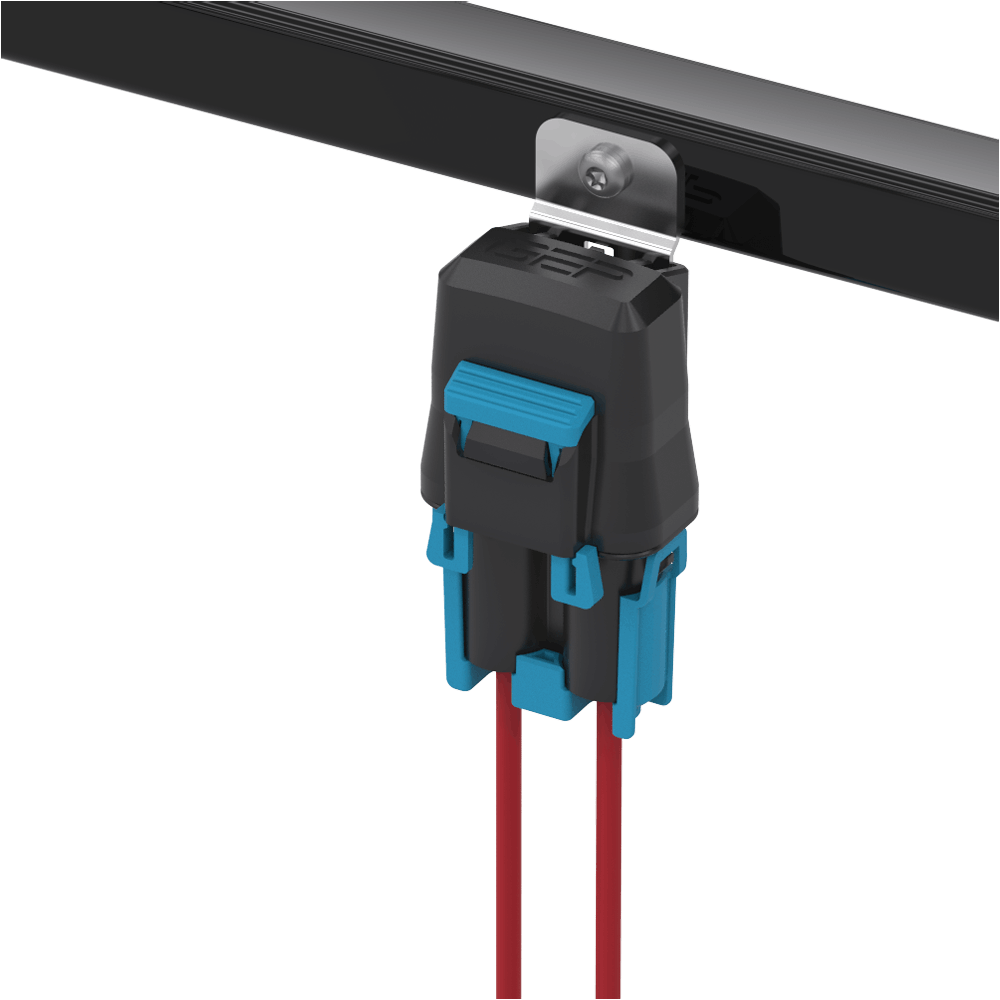

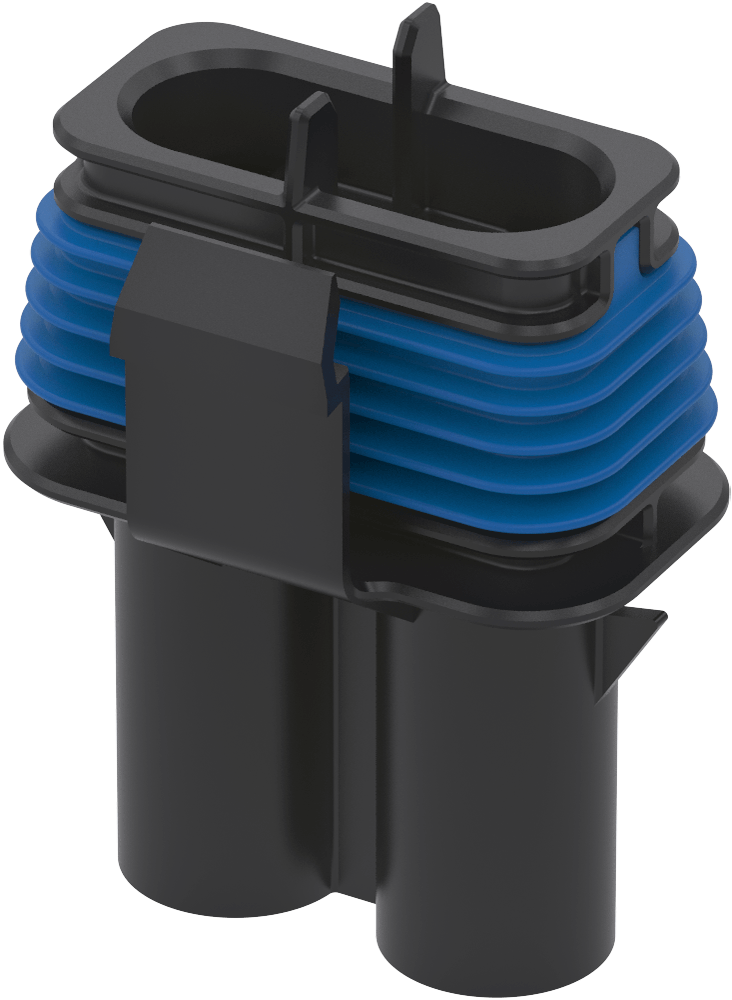

The GEP FRH Maxi Fuse Series is a single-position sealed Maxi fuse holder with IP67/IP69K protection for high-current circuit protection in harsh environments. The compact housing supports mounting brackets and cover lock accessories and is used for main power feeds in powersports, outdoor power equipment, and heavy-duty vehicles.
Features

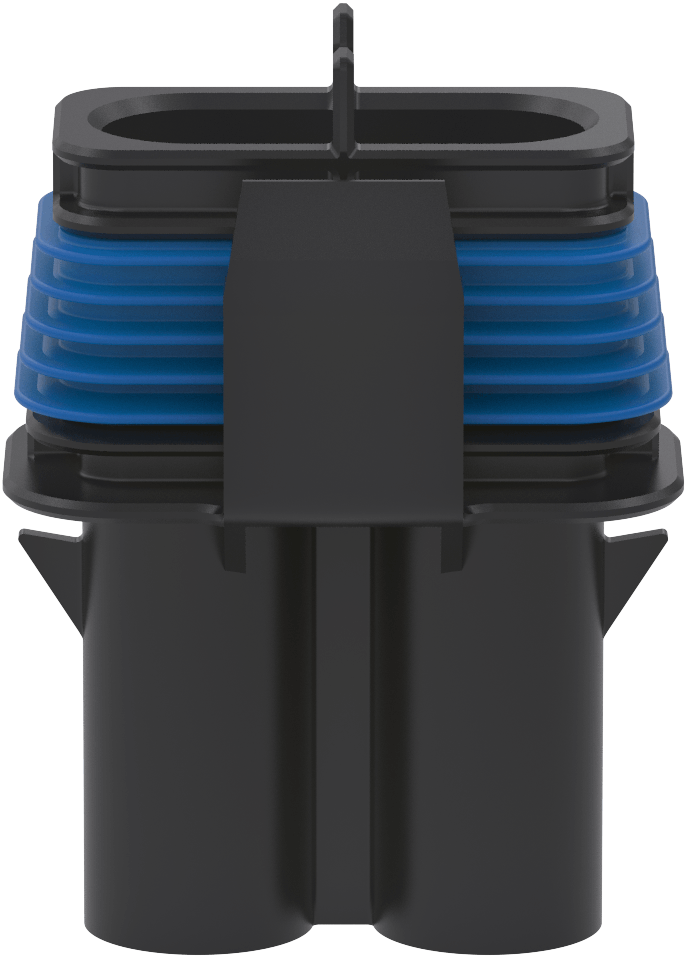

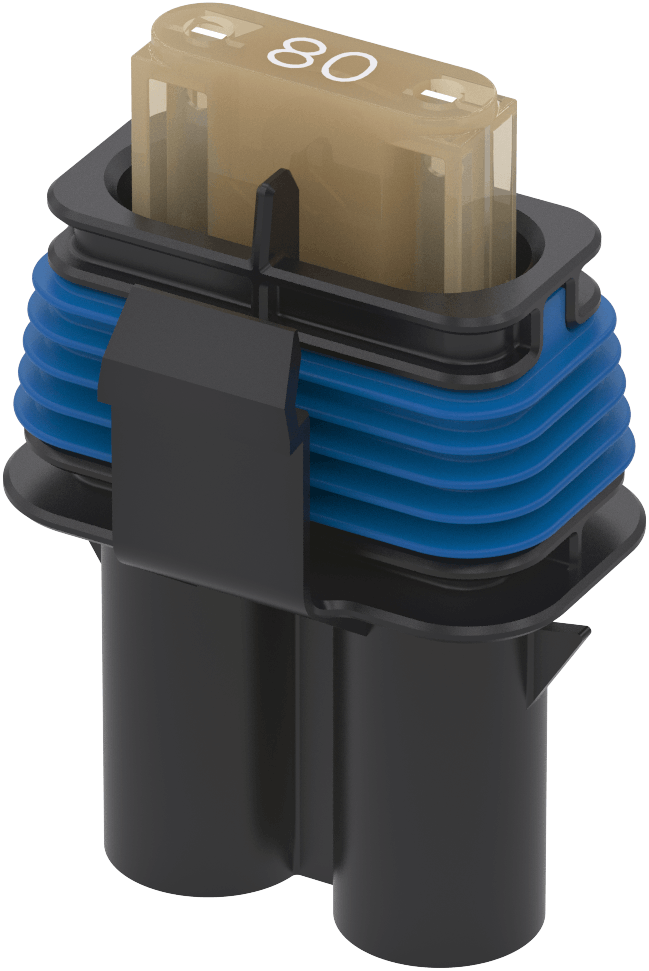

- Single compact Maxi fuse holder

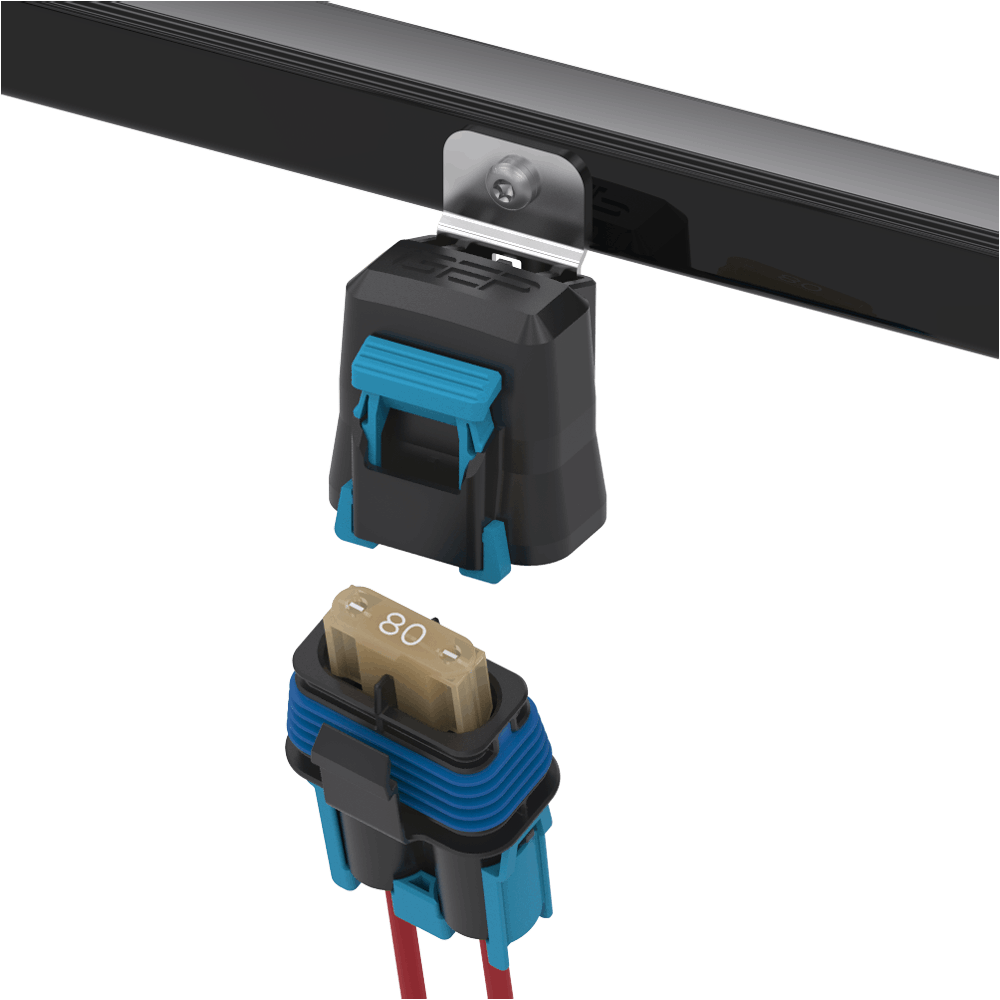

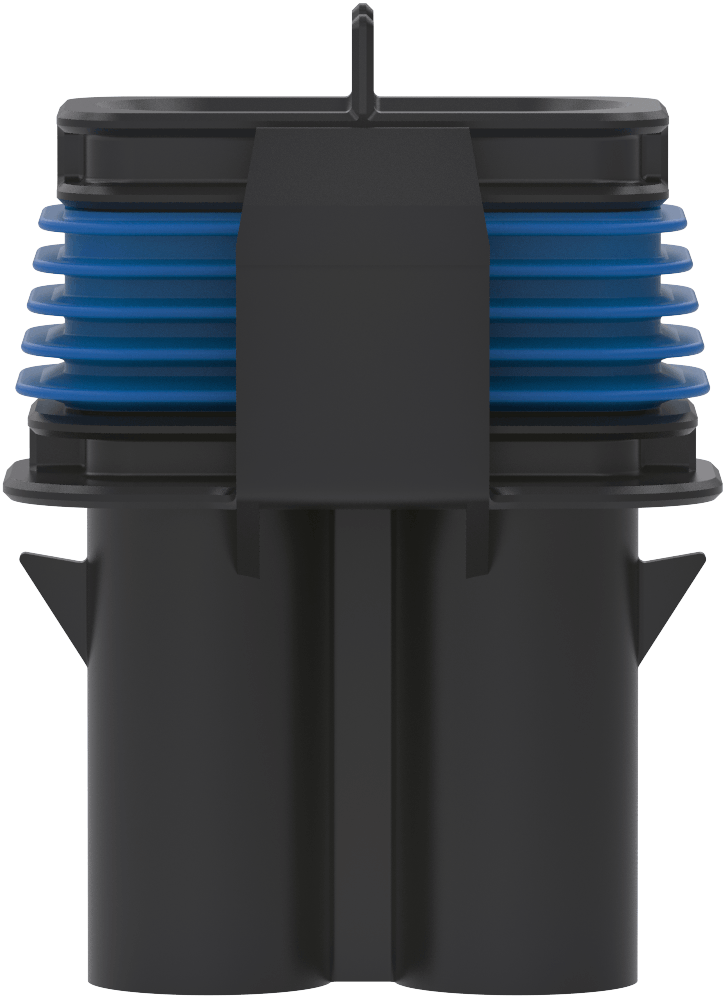

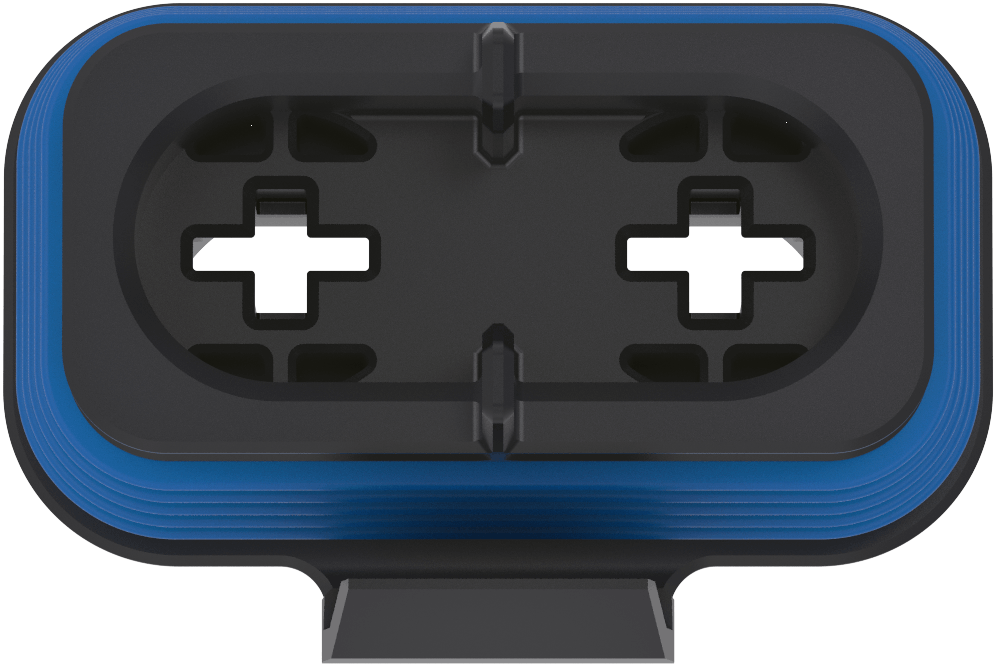

- Unique cover mount design for easy access to housing componentry
- The compact size of the FRH Series PDMs makes it easy to package and integrate.
- Harsh environment handling: With an IP67 and IP69K rating, the FRH Series PDM is designed to withstand harsh environments and provide superior sealing performance.
- Various mounting brackets available

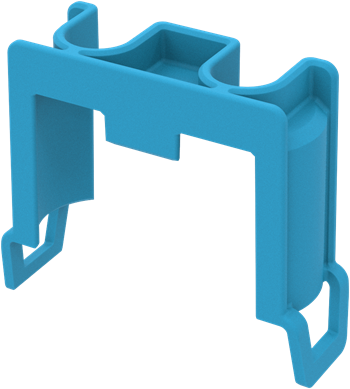

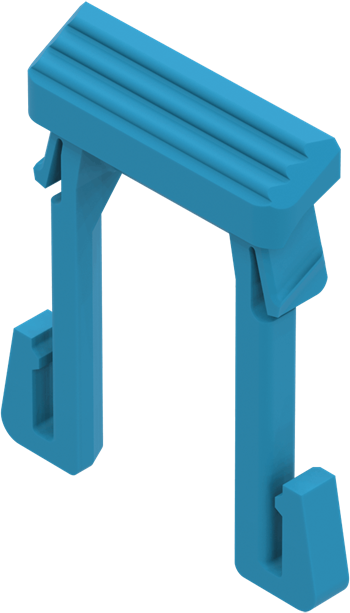

- Cover lock accessory available
- TPA accessory available
Applications
Single Maxi fuse holder for high-current circuit protection in harsh environments. Used for main power feeds, battery protection, and high-current circuits in trucks, agricultural equipment, construction machinery, and specialty vehicles.
Purchase
GEP Standard Products are sold through a distributor.
Attributes
- Materials: PBT, Silicone
- Flammability: UL94 - V-0
- IP Rating: IP67, IP69K
- Fusing: MAXI Fuse
- Series: FRH SERIES, FRH MAXI FUSE
| Lear Mak8 Plus Terminals (For Ref. Only) | |||
|---|---|---|---|
| Part Number | Range (mm²) | Plating | Variation |
| 28224 306 710 | 2.5-4.0 | Silver | 1 - Long Seal |
| 28469 306 189 | 2.5-4.0 | Silver/Tin | 3 - Short Seal |
| 28225 306 710 | 6.0-10.0 | Silver | 1 - Long Seal |
| 28459 306 189 | 6.0-10.0 | Silver/Tin | 3 - Short Seal |
| 28243 306 710 | 10.0-16.0 | Silver | 1 - Long Seal |
| Gep Cable Seals (Variation 1 - Long) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-L1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-L2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-L3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-L4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-L5 | 5.8-6.6 | Silicone | Gray |
| PDM-TWS-L6 | 6.5-7.8 | Silicone | Red |
| Gep Cable Seals (Variation 3 - Short) | |||
| PDM-TWS-S1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-S2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-S3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-S4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-S5 | 5.8-6.6 | Silicone | Gray |
| Gep Cable Seal Plug | |||
| PDM-TWS-P | N.A. | Silicone | Yellow |
| Lear Mak8 Plus Terminal Removal Tool (For Ref. Only) | |||
| Part # 50000017609 by Karl Püpllhuisen GmbH & Co. | |||
