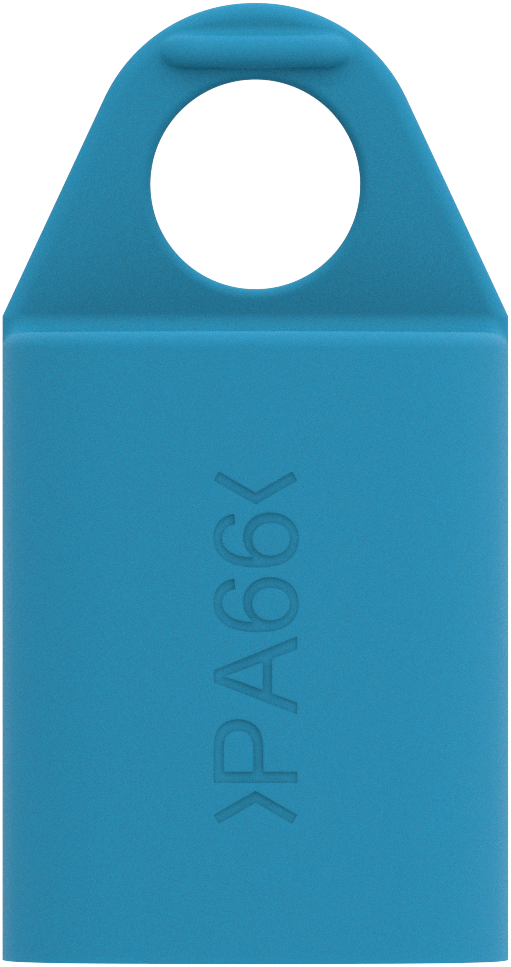

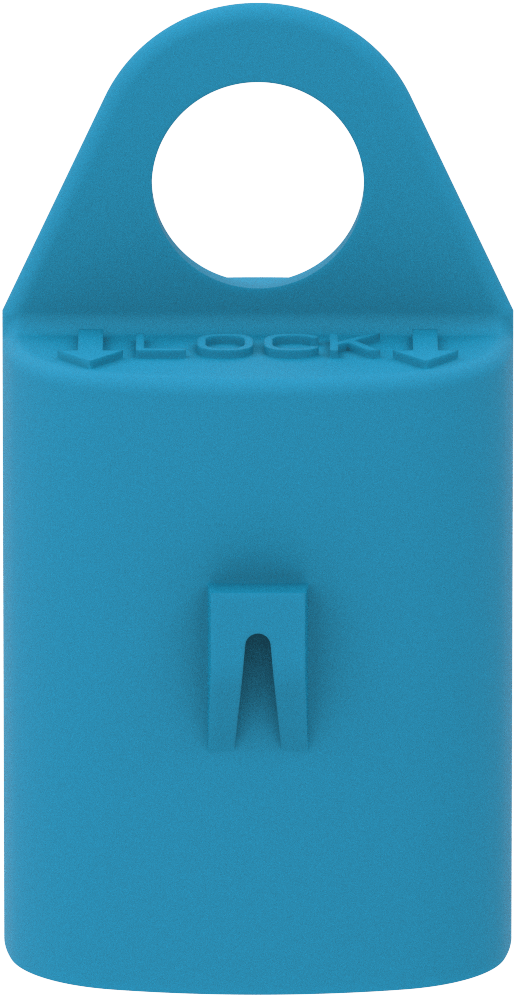

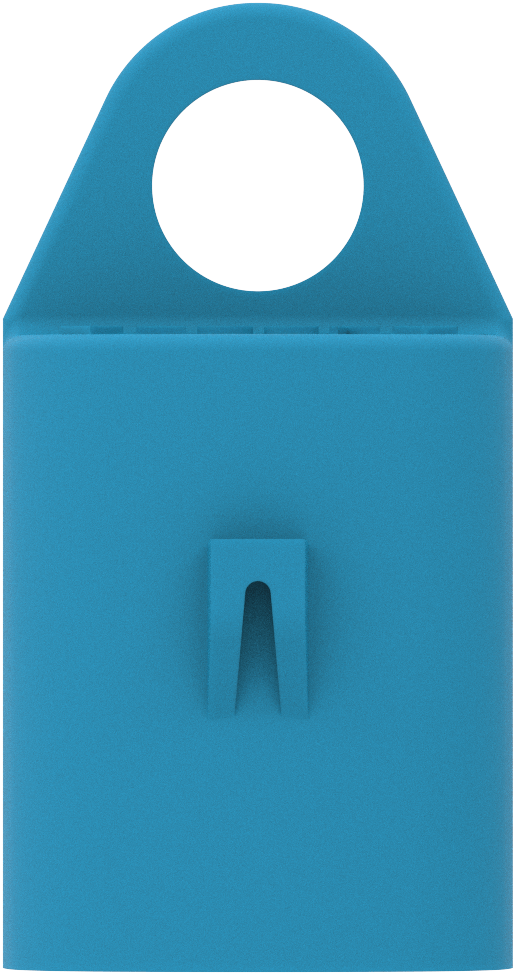

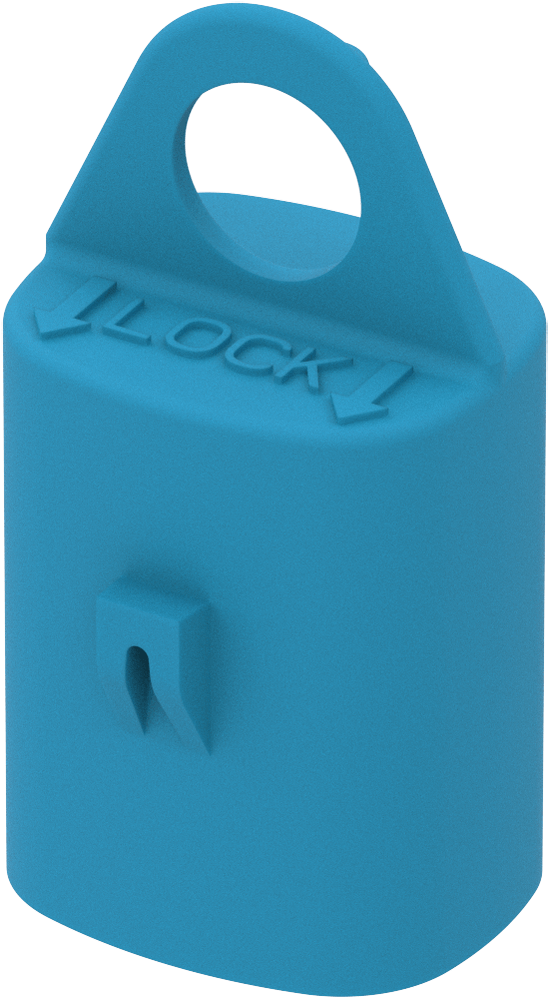

CAP - MX150, 2 POS, FEM CONN CAP
Part Number: SC03-2018A-B003
Description
The GEP MX150 Series provides low-cost sealing caps for unused MOLEX MX150 female connectors.They eliminate the need for full mating connectors while maintaining environmental sealing.Used in powersports, outdoor power equipment, and heavy-duty vehicle OEM harness designs.
Features
- Mating connector options from 2 positions up to 20
- Molex equivalent sealing
- Quick release seal cap removal
- Tie back eyelet
Applications
Sealing caps for Molex MX150 connectors used across automotive, truck, and heavy-duty applications.Provides environmental protection for unused connector positions in any application utilizing MX150 series connectors.
Purchase
GEP Standard Products are sold through a distributor.
| APTIV (DELPHI) 280 METRI-PACK TERMINALS | |||
|---|---|---|---|
| PART NUMBER | CABLE RANGE (mm²) | MATERIAL | PLATING |
| 12077413 | 3 | Tin Brass | Tin |
| 12129493 | 2.0-3.0 | Tin Brass | Tin |
| 12077411 | 0.8-1.0 | Tin Brass | Tin |
| 12084201 | 0.35-0.50 | Tin Brass | Tin |
| 12176387 | 5 | Beryllium Copper | Silver / Nickel |
| 12176388 | 2.0-3.0 | Beryllium Copper | Silver / Nickel |
| 12176389 | 0.8-1.0 | Beryllium Copper | Silver / Nickel |
| APTIV (DELPHI) 280 METRI-PACK CABLE SEALS (FOR REF. ONLY) | |||
| PART NUMBER | CABLE DIAMETER | MATERIAL | COLOR |
| 15324981 | 3.45-4.3 | Silicone | Blue |
| 15324980 | 2.81-3.49 | Silicone | Lt. Gray |
| 15324982 | 2.03-2.85 | Silicone | Green |
| 15324984 | 2.03-2.42 | Silicone | Tan |
| 15324985 | 1.6-2.15 | Silicone | Purple |
| 15324983 | 1.29-1.70 | Silicone | Dk. Red |
| 12010300 | PLUG | Silicone | Green |
| DELPHI 280 METRI-PACK TERMINAL REMOVAL TOOL (FOR REF. ONLY) | |||
| Part # 12094430 | |||
| Aptiv (Delphi) 630 Metri-Pack Terminals | |||
|---|---|---|---|
| Part Number | Range (mm²) | Material | Plating |
| 15317331 | 4.00-6.00 | Tin Brass | Tin |
| 12052456 | 3.00-5.00 | Tin Brass | Tin |
| 12052455 | 1.00-2.00 | Tin Brass | Tin |
| 12052457 | 0.50-0.80 | Tin Brass | Tin |
| 15317332 | 4.00-6.00 | Beryllium Copper | Silver/Nickel |
| 15305232 | 3.00-5.00 | Beryllium Copper | Silver/Nickel |
| Aptiv (Delphi) 480 Metri-Pack Cable Seals (Ref. Only) | |||
| Note: 630 Cavities in This Housing Are Designed to Be Used With 480 Series Cable Seals | |||
| Part Number | Cable Dia. | Material | Color |
| 15363779 | 1.20-2.00 | Silicone | Yellow |
| 15324991 | 1.60-2.15 | Silicone | Yellow |
| 15327998 | 2.00-2.70 | Silicone | Blue |
| 15324988 | 2.00-2.90 | Silicone | White |
| 15363604 | 2.00-2.90 | Silicone | White |
| 15324989 | 2.80-3.90 | Silicone | Dk. Red |
| 15327864 | 2.80-3.80 | Silicone | Dk. Red |
| 15363605 | 3.60-4.50 | Silicone | Green |
| 10733145 | 4.40-5.10 | Silicone | Gray |
| 15344647 | 4.40-5.10 | Silicone | Gray |
| 35232480 | Plug | Silicone | Lt. Green |
| Delphi Metri-Pack Terminal Removal Tool (for Ref. Only) | |||
| Part # 12094430 | |||
| Lear Mak8 Plus Terminals (For Ref. Only) | |||
|---|---|---|---|
| Part Number | Range (mm²) | Plating | Variation |
| 28224 306 710 | 2.5-4.0 | Silver | 1 - Long Seal |
| 28469 306 189 | 2.5-4.0 | Silver/Tin | 3 - Short Seal |
| 28225 306 710 | 6.0-10.0 | Silver | 1 - Long Seal |
| 28459 306 189 | 6.0-10.0 | Silver/Tin | 3 - Short Seal |
| 28243 306 710 | 10.0-16.0 | Silver | 1 - Long Seal |
| Gep Cable Seals (Variation 1 - Long) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-L1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-L2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-L3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-L4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-L5 | 5.8-6.6 | Silicone | Gray |
| PDM-TWS-L6 | 6.5-7.8 | Silicone | Red |
| Gep Cable Seals (Variation 3 - Short) | |||
| PDM-TWS-S1 | 2.7-3.0 | Silicone | Green |
| PDM-TWS-S2 | 3.4-3.8 | Silicone | Purple |
| PDM-TWS-S3 | 4.0-4.5 | Silicone | Orange |
| PDM-TWS-S4 | 4.6-5.3 | Silicone | Light Blue |
| PDM-TWS-S5 | 5.8-6.6 | Silicone | Gray |
| Gep Cable Seal Plug | |||
| PDM-TWS-P | N.A. | Silicone | Yellow |
| Lear Mak8 Plus Terminal Removal Tool (For Ref. Only) | |||
| Part # 50000017609 by Karl Püpllhuisen GmbH & Co. | |||
| Aptiv (Delphi) 9.5 Ducon Terminals | |||
|---|---|---|---|
| Part Number | Cable Range (mm²) | Material | Plating |
| 15327010 | 4.0-6.0 | Copper Alloy | Tin |
| 15482568 | 4.0-6.0 | Copper Alloy | Silver/Tin |
| 10730408 | 10 | Copper Alloy | Tin |
| 15408423 | 10 | Copper Alloy | Silver/Tin |
| 15458196 | 16 | Copper Alloy | Tin |
| 15458198 | 16 | Copper Alloy | Silver/Tin |
| Aptiv (Delphi) 9.5 Ducon Cable Seals (For Ref. Only) | |||
| Part Number | Cable Dia. | Material | Color |
| 15492996 | 2.20-3.00 | Silicone | Blue |
| 15327126 | 3.4-4.3 | Silicone | Dk. Red |
| 10720983 | 6.00-6.40 | Silicone | Green |
| 15470809 | 6.50-7.75 | Silicone | Red |
| 10720907 | Plug | Silicone | Green |
| Gep Cable Seals - 9.5 Ducon (For Ref. Only) | |||
| Part Number | Cable Dia. | Material | Color |
| PDM-TWS-D4 | 4.6-5.3 | Silicone | Light Blue |
| Delphi 9.5 Ducon Terminal Removal Tool (For Ref. Only) | |||
| Part # 10714800 | |||
